jackssmirkingrevenge wrote: here, I'm in a good mood :)
thank you, i am surprised with the 2mm one, i would have though it would have taken a lot more then that to get supersonic, oh and sorry i dont think i explained my other question properly, hope i dont ruin your good mood but what i was trying to ask was if you had a chamber with 1000psi that when the total volume of that chamber was expanded to atmospheric pressure it would be only twice that of the air in the barrel so that you would only have low pressure exiting the barrel, also with a barrel sealing piston valve
sorry
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Dec 08, 2010 2:56 am

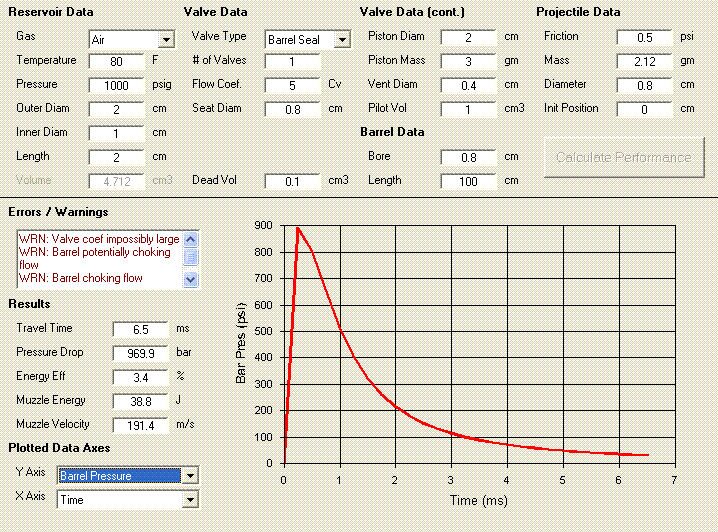

Technician1002 wrote:As long as GGDT is posted.. Here is a projection for a future golf ball cannon. Note the muzzle energy.
10 cubic inches pilot volume? 1.75" projectile in a 2" barrel? 8 cubic inches dead volume?

Surely it can be optimised... and shouldn't you be modelling a QDV as a "generic valve"?
if you had a chamber with 1000psi that when the total volume of that chamber was expanded to atmospheric pressure it would be only twice that of the air in the barrel so that you would only have low pressure exiting the barrel, also with a barrel sealing piston valve
Something like this?
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
ilovefire
Corporal
Corporal
Posts: 511
Joined: Sat May 22, 2010 6:48 am

Wed Dec 08, 2010 3:10 am

cheers for that mate, not really that impresive compared to the last one tho :lol:
User avatar
Technician1002
Captain
Captain
Posts: 5189
Joined: Sat Apr 04, 2009 11:10 am

Wed Dec 08, 2010 3:19 am

It could be optimized. That was an early projection. I found the valve CV is too conservative for a 3 inch valve. I could have modeled it as a Generic valve, but then it would have been difficult to see the speed the accelleration picks up due to the rate the valve pops open. Modeling it as a barrel seal instead gives me a good idea of the rate the valve opens once triggered.

The large pilot volume is indeed reasonable. Think of how much space you need behind a 3 inch piston for the bumper. If anything the 10 cubic inches is quite small.

The 8 cubic inches of dead space is the transition cone from the 3 inch valve to the 2 inch barrel. This would behave like a velocity stack.
GGDT does not have an option to model a nozzle from the 3 inch to 2 inch transition. In reality, the barrel choking the flow will be less than indicated due to the transition.

Initial experiments will be done with the 2.5 inch valve. I plan on skipping the 3 inch build and go directly to a 4 inch 8 gallon.

If you want some fun graphs, try a sabboted golfball in a 3 inch barrel, 8 gallon chamber, with a 4 inch valve at 250 PSI using Helium. :shock:
