Breech Loading "Assault Rifle"

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
octane89
Specialist 2
Specialist 2
Posts: 257
Joined: Tue Sep 11, 2007 1:20 pm

Fri Oct 05, 2007 8:44 pm

This is my first pneumatic, and my 4th cannon. Let me know what you think on it and I'll have a updated picture of it tomorrow or the next when it's painted.

Specs
30in Barrel (1in ID)
20in Chamber (2in ID) **I think it's 20 inches long, but with the cap it seems longer**
*Note that I have installed two rubber blocks to seal off the stock, so it's the front half that actually is the only part pressurized.*
Breech Loading
Rainbird DV-100 Valve

I made a "slicer" out of a 3/4in coupling that is sharpened on one end to cut an apple or potato out to fit inside the barrel to fire as well.

Performance wise, at 35psi it shoots about 300yds roughly. I will pull my paintball chronograph out to see how many fps it has too. I got about a 3:1 Ratio too.

Pics of everything as a final product will be up soon. Possibly a video too.
Attachments

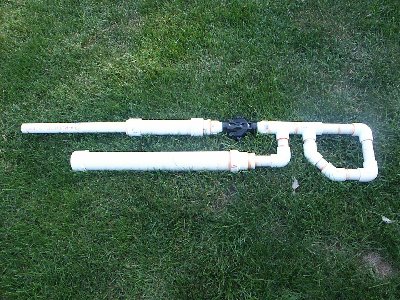

The product after assembly, before paint.
The product after assembly, before paint.
User avatar
HaiThar
Specialist 2
Specialist 2
Posts: 225
Joined: Fri Sep 14, 2007 12:12 am

Donating Members

Fri Oct 05, 2007 8:46 pm

Nice, very similar to the gun I built. Your primer job was alot better than mine, though :D
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Fri Oct 05, 2007 9:13 pm

I hate to be the bearer of bad news, but some of the fittings on this cannon are dwv, or non pressure rated, so I wouldn't take it over 50-60 psi.
It's hard to soar with eagles when you're working with turkeys.
User avatar
octane89
Specialist 2
Specialist 2
Posts: 257
Joined: Tue Sep 11, 2007 1:20 pm

Fri Oct 05, 2007 9:19 pm

Well what ones? Because they are all sch 40, I made sure of that.
User avatar
benstern
Corporal 5
Corporal 5
Posts: 908
Joined: Wed Sep 21, 2005 8:24 pm

Donating Members

Fri Oct 05, 2007 9:37 pm

sch-40 is a size standard. NOT A PRESSURE RATING!
User avatar
Dornep
Specialist
Specialist
Posts: 151
Joined: Thu Aug 09, 2007 5:49 pm
Location: Florida

Fri Oct 05, 2007 9:41 pm

The bell reducers are DWV. They may be SCH40 but they have shallow socket depth. You can clearly see this on the chamber's bell reducer.

Overall nice cannon, save for the DWV fittings.

EDIT. If it really fire's 300 yards :shock: at 35psi I see no reason why you would need to take it over 40-50PSI..
User avatar
Spuddin
Specialist 2
Specialist 2
Posts: 262
Joined: Wed May 16, 2007 1:28 pm
Location: Oklahoma
Contact:

Donating Members

Fri Oct 05, 2007 9:45 pm

man i really like this rifle, i want to make one just like it, very nice. have u got it painted yet? and how much was the bird.
User avatar
octane89
Specialist 2
Specialist 2
Posts: 257
Joined: Tue Sep 11, 2007 1:20 pm

Sat Oct 06, 2007 12:21 pm

Dornep- I don't plan at running over 50psi ever. Believe me, 35psi is enough.

Benstrern-It seems like you have a problem with any post I have so far. I don't have a problem with anyone, so I hope you can understand the fact that Im learning as I go.

But thanks everyone for compliments so far, and the paint is drying so I may have pictures before work.

And the rainbird was $15 from my work- which is a hardware store.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Oct 06, 2007 12:27 pm

I don't plan at running over 50psi ever. Believe me, 35psi is enough.
You have no idea what you're missing ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
octane89
Specialist 2
Specialist 2
Posts: 257
Joined: Tue Sep 11, 2007 1:20 pm

Sat Oct 06, 2007 12:30 pm

Haha- well thats my next project. I'll want more power eventually.
User avatar
battlemonkey
Specialist
Specialist
Posts: 137
Joined: Sat Sep 22, 2007 3:42 pm

Mon Oct 08, 2007 1:33 am

I take my pressure rated pvc up to 180psi and dont have problems apart from ocasional leaks from valves.
User avatar
tsb
Private 2
Private 2
Posts: 35
Joined: Mon Oct 08, 2007 8:58 pm
Location: Spudville

Fri Oct 12, 2007 5:19 pm

Nice,
octane, you really should listen to benstern, because, what would have happened if one day you decided to take it up abit and you went at 100psi??

well its good anyways.

Cheers, tsb
We can often do more for other people by trying to correct our own faults than by trying to correct theirs.
Current Projects: Pneumatic Marble rifle
Status: Planning and Buying parts
User avatar
octane89
Specialist 2
Specialist 2
Posts: 257
Joined: Tue Sep 11, 2007 1:20 pm

Fri Oct 12, 2007 9:07 pm

I'm not saying I don't believe him-My statement was based on another post he had where I was talking about a supah valve.
