New Valve!....Back filled push-button valve!
Hey guys,

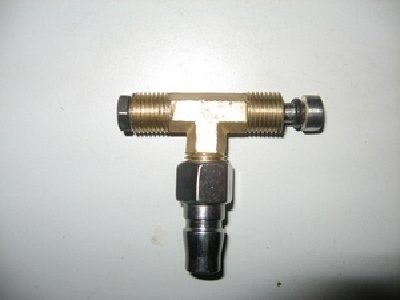

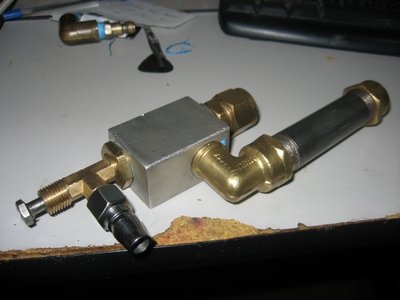

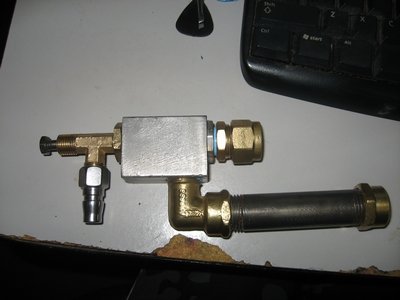

This is my new little creation. I've seen a few nice push valves on here so I thought I'd take it to the next level. I wanted something compact that had extremely high efficiency so I tried my best to make a push button valve that allowed for back filling. The pilot area on this is virtually nothing. The back of the o ringed bolt sits a fraction behind the piston in the QEV. With this said it's as efficient and powerful as it can get using the pressure I am (120 psi until I fix my pump).
As far as the tools go, it was as simple as you can get. A bolt, 2 o-rings, a hack saw, a file and a drill press.
Thanks everyone!
Mitch.

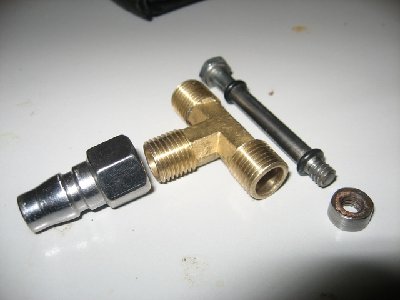

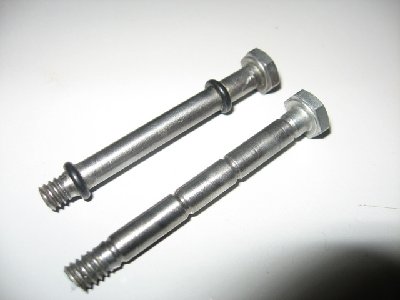

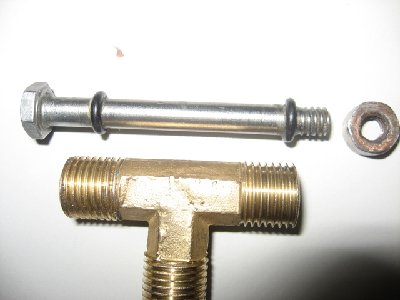

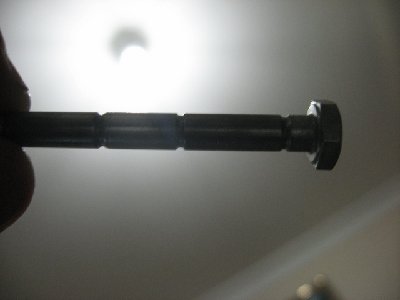

EDIT - New internals pictures!
This is my new little creation. I've seen a few nice push valves on here so I thought I'd take it to the next level. I wanted something compact that had extremely high efficiency so I tried my best to make a push button valve that allowed for back filling. The pilot area on this is virtually nothing. The back of the o ringed bolt sits a fraction behind the piston in the QEV. With this said it's as efficient and powerful as it can get using the pressure I am (120 psi until I fix my pump).
As far as the tools go, it was as simple as you can get. A bolt, 2 o-rings, a hack saw, a file and a drill press.
Thanks everyone!
Mitch.
EDIT - New internals pictures!
Last edited by Mitchza89 on Tue Sep 08, 2009 7:43 pm, edited 1 time in total.
interesting,but like mentioned in other threads,i think you will have extreme difficulty trying to depress the bolt at higher pressures,maybe a leverage system should be in place..!!
al-xg wrote:
I've used various things like cutting oil, silicone lubricant, even butter
jsr wrote:
This collection of containers on your bedside table must look very intimidating to any visiting young ladies
...but hey, lube shows you care;)
I've used various things like cutting oil, silicone lubricant, even butter
jsr wrote:
This collection of containers on your bedside table must look very intimidating to any visiting young ladies
...but hey, lube shows you care;)
- rna_duelers
- Staff Sergeant 3
- Posts: 1739
- Joined: Mon Sep 26, 2005 7:07 am
- Location: G-land Australia
Go 300
Might be a bit of a stupid question,but whats was your rough estimate on building this?
Might be a bit of a stupid question,but whats was your rough estimate on building this?
Price, pressure rating, performance, e-peen enlargement factor... take your pick
The only thing I can see bothering the layout is you've still got the button facing the other way to the barrel which means for this increase in efficiency you'll still have to loop the barrel round or use a mechanical linkage to depress the button.
The only thing I can see bothering the layout is you've still got the button facing the other way to the barrel which means for this increase in efficiency you'll still have to loop the barrel round or use a mechanical linkage to depress the button.
- Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
Well...it's clearly set up for a hammer valve...
Like you would expect...I LOVE IT!
You might experience the O-ring on the valve will get " stuck" at higher pressures unless you superglue it in place though...
When pressing the button under higer pressure he O-ring will remain seated while the stem moves through it...
As mentioned, some superglue will fix this.
Like you would expect...I LOVE IT!
You might experience the O-ring on the valve will get " stuck" at higher pressures unless you superglue it in place though...
When pressing the button under higer pressure he O-ring will remain seated while the stem moves through it...
As mentioned, some superglue will fix this.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Thank you all for the comments. As far as the price goes, I had all the parts here but gosh.....5 bucks for the T, a few cents for the bolt and about a dollar for both o rings so it definitely out weighs a blow gun for 10 or more dollars.
BTB, a hammer valve indeed I've come up with a very, very simple trigger mechanism based off your Shatterhand repeater. Basically you pull the trigger, and the top half of the trigger hits the bolt. Simple as that. I did actually have problems with keeping the o rings in place so for now I've just super glued them. When the pressures I've been limited to it's been working fine. When I bump up the pressure I'll get some aluminum tubing and use that as spacers between the o rings so they have nowhere to go.
Twizi, I'll pull it apart and add a diagram for you to show the bolt
Cheers and more beers!
BTB, a hammer valve indeed I've come up with a very, very simple trigger mechanism based off your Shatterhand repeater. Basically you pull the trigger, and the top half of the trigger hits the bolt. Simple as that. I did actually have problems with keeping the o rings in place so for now I've just super glued them. When the pressures I've been limited to it's been working fine. When I bump up the pressure I'll get some aluminum tubing and use that as spacers between the o rings so they have nowhere to go.
Twizi, I'll pull it apart and add a diagram for you to show the bolt
Cheers and more beers!
- Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
The trigger you think of is meant for a single shot.A hammer will give you many.
Another way to go about it ( giving away an original idea of mine before it's time)
is to have the top of the trigger being able to turn towards the valve, but not back.Than springload the top section to stay upright, touching the valvestem.Pull the trigger and the top will push the valvestem, as it is locked in position.
THe rotation of the trigger means it will rotate out of the path of the valvestem.CLICK.valve stem pops back as it is no longer pushed by the top of the trigger.
Shot fired, valve closed immediately after..
Release the trigger, the top then folds on the return to get back in position..
Semi auto.Right there baby...
Another way to go about it ( giving away an original idea of mine before it's time)
is to have the top of the trigger being able to turn towards the valve, but not back.Than springload the top section to stay upright, touching the valvestem.Pull the trigger and the top will push the valvestem, as it is locked in position.
THe rotation of the trigger means it will rotate out of the path of the valvestem.CLICK.valve stem pops back as it is no longer pushed by the top of the trigger.
Shot fired, valve closed immediately after..
Release the trigger, the top then folds on the return to get back in position..
Semi auto.Right there baby...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Well with my current limit of 120psi, a multishot repeater is some what useless. I might aswell go to a toy shop and get a cheap chinese bb pistol haha.
For now just having a hammer valve that works is great. It's my first time ever making something like this so I'm happy it even works but no doubt my thirst for more pressure and shots will grow
Thanks BtB.
For now just having a hammer valve that works is great. It's my first time ever making something like this so I'm happy it even works but no doubt my thirst for more pressure and shots will grow
Thanks BtB.
