The Last Gun.....

jackssmirkingrevenge · Tue Nov 13, 2007 9:12 am

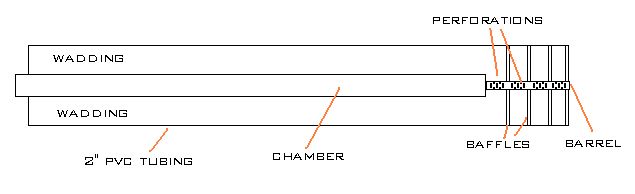

My suggestion would be to drill holes in the exposed section of barrel, then sleeve the whole barrel+chamber with 2" or larger PVC (it can be DWV in this case) and maybe add a few baffles around the perforated barrel section. The baffles can be cut from thin ply or balsa wood and fixed in place with araldite.

paaiyan · Tue Nov 13, 2007 9:14 am

jackssmirkingrevenge wrote:My suggestion would be to drill holes in the exposed section of barrel, then sleeve the whole barrel+chamber with 2" or larger PVC (it can be DWV in this case) and maybe add a few baffles around the perforated barrel section. The baffles can be cut from thin ply or balsa wood and fixed in place with araldite.

Just make sure to clean out the inside of the barrel after you drill the holes, you might get some debris in there that would jam your projectile. Jack's idea would do you well for a silencer.

Zen/// · Tue Nov 13, 2007 9:22 am

I love metal guns! I like this it looks clean.
ILOVE CLEAN GUNS!

reminds me of this one http://nerfhaven.com/forums/index.php?showtopic=10118

jackssmirkingrevenge · Tue Nov 13, 2007 9:23 am

paaiyan wrote:Just make sure to clean out the inside of the barrel after you drill the holes, you might get some debris in there that would jam your projectile.

I took that for granted but thanks for mentioning it

this way, you get a silencer without adding any length to your barrel or too much extra weight, and the longer you make the outer PVC tubing the more effective it will be.

paaiyan · Tue Nov 13, 2007 9:25 am

jackssmirkingrevenge wrote:
paaiyan wrote:Just make sure to clean out the inside of the barrel after you drill the holes, you might get some debris in there that would jam your projectile.
I took that for granted but thanks for mentioning it this way, you get a silencer without adding any length to your barrel or too much extra weight, and the longer you make the outer PVC tubing the more effective it will be.

Well I've worked with... well... stupid people long enough that I feel I have to mention these things. It probably goes without saying, but the things people do when you don't warn them of the obvious...

I do enjoy reading the Darwin Awards...

seudo411 · Tue Nov 13, 2007 3:42 pm

just a question... how did you center the barrel... and what is the chamber volume...

seudo411 · Tue Nov 13, 2007 4:11 pm

sorry

just thought about this if you remove the second front mounted schrader and attach a continuous air source to the back would it be a semi auto...

Tue Nov 13, 2007 4:17 pm

Very nice!
But I bet you can do even better next time! I do hope this is not your last!

If you can't do better, you can always go bigger, or use higher pressure, or go semi auto, of full auto...or bigger and full auto at higher pressure...or bla blabla...

haha

ALIHISGREAT · Tue Nov 13, 2007 4:25 pm

wow! that is one good looking gun, all you need now is a stock and it will look completely kick ass.

Mitchza89 · Tue Nov 13, 2007 7:03 pm

Sorry guys for the late reply, I fell asleep last night haha.

Seudo441, I just centered the barrel with some scrap 1/2 copper pipe and as for the chamber volume, I have absolutely no idea.

Thanks alot for all the comments, I really appreciate it. Urgh I'm getting sick of small bore pistons. My sealing face keeps on getting ripped clean off and shot out the barrel

I'm gonna try and myself a solid rubber piston if I can or if not, find some wooden dowel thats the right fit and just use that. hmm....

origin unknown · Tue Nov 13, 2007 8:46 pm

Very nice man. Guns like yours are so perfect looking and simple that they leave me speechless.

Hawkeye · Tue Nov 13, 2007 9:10 pm

Very nice gun. The only thing that makes me slightly nervous with that style is the schrader pointing directly into your eye. They probably fail very rarely but for safety I always mounted them on an elbow pointing to the side.

Mitchza89 · Tue Nov 13, 2007 9:50 pm

Thanks alot for the possitive feedback Origin unknown

.

Hawkeye, out of everything on this gun, the valve at the back is the thing im least worried about. I've compression fitting'ed it in. I've placed the gun in a vice, pumped it up to 120psi and then pulled with all my weight back on the valve with a pair of plyers. It's about as rock solid as you can get

.

rna_duelers · Wed Nov 14, 2007 12:54 am

I can't wait for the silencer and some damage pictures.

Also how much did this thing cost all up?

Mitchza89 · Wed Nov 14, 2007 12:58 am

Its hard to say man but I dunno...maybe 60 or so. Not too bad.
