The Last Gun.....
-
jasonsmithmyer
- Private
- Posts: 13
- Joined: Tue Mar 27, 2007 8:37 pm
What type of blowgun are you useing to acctuate the piston, its really nice and I was wondering where you got it?
@jasonmithmyer- Looks like either a tire filler attatchment, or a pistol grip blowgun. Both available at home depot
searching for a modern day savior from another place,inclined toward charity,everyone's begging for an answer,without regard to validity,the searching never ends,it goes on and on for eternity
-Bad religion
-Bad religion
Haha thanks alot mate. Does anyone have an idea of what I could use to make a new piston? No matter what sorta glue I use, my sealing face keeps on getting ripped off and shot out the barrel
I just wanna make my solid rubber piston...Would make everthing alot easier.
I just wanna make my solid rubber piston...Would make everthing alot easier.hasve you tryed suoer glue? my glue seems to melt rubber onto stuff. it rocksMitchza89 wrote:Haha thanks alot mate. Does anyone have an idea of what I could use to make a new piston? No matter what sorta glue I use, my sealing face keeps on getting ripped off and shot out the barrel
searching for a modern day savior from another place,inclined toward charity,everyone's begging for an answer,without regard to validity,the searching never ends,it goes on and on for eternity
-Bad religion
-Bad religion
-
MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
Hmm maybe try araldite or maybe try nailing around the perimeter of the sealing face so the nails don't conflict with the seal on the barrel.
Like this picture:
Black is front of the sealing face
Red is the area that will be sealed by the barrel
Gray are the nails, try use thin but big headed nails, or maybe bend them over a bit.
Like this picture:
Black is front of the sealing face
Red is the area that will be sealed by the barrel
Gray are the nails, try use thin but big headed nails, or maybe bend them over a bit.
- Attachments
-
- ...
- a.jpg (3.73 KiB) Viewed 2643 times
Thats the shit thing about small bore guns. The piston face is too small to nail or bolt the sealing face on. Hmm I'll duck down to my local rubber shop and see what they have. They have some real thick rubber rope that maybe I could use as a piston. If it's not the right fit, I'll just use O-rings. If there is a will there is a way
.
.-
jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 344 times

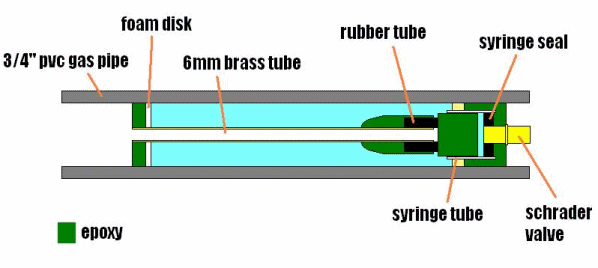

Another solution is to epoxy some rubber tube onto the barrel instead of the piston, as I do with my minis:
- Attachments
-
hectmarr wrote:You have to make many weapons, because this field is long and short life
Well looks like I found out why the tape plug isn't holding and the barrel keeps on sliding through it. I fill from behind the piston and I reckon that it seals too well. The air isn't equalising past it fast enough as I pump so it acts like a hydrolic ram and just pushes it out of place.
