shotgun replica!! alternate powersource!!!

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Post Reply
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Mon Oct 08, 2007 1:46 pm

I decided to revive an old project of mine, some of you might find it interesting..
The trigger mechanics would be peerfect for a crossbow.
I made one of these a long, long time ago..

At that time I charged it with....12 rubber bands at once!!

Yes you read it right....

So sew me!!..I made a shotgun replica for my son ( 5 yrs old)

..it is not the usual lethal stuff...It took me about an hour to finish.

meet the incredible...RUBBER BAND POWERED SHOTGUN!!!
Attachments

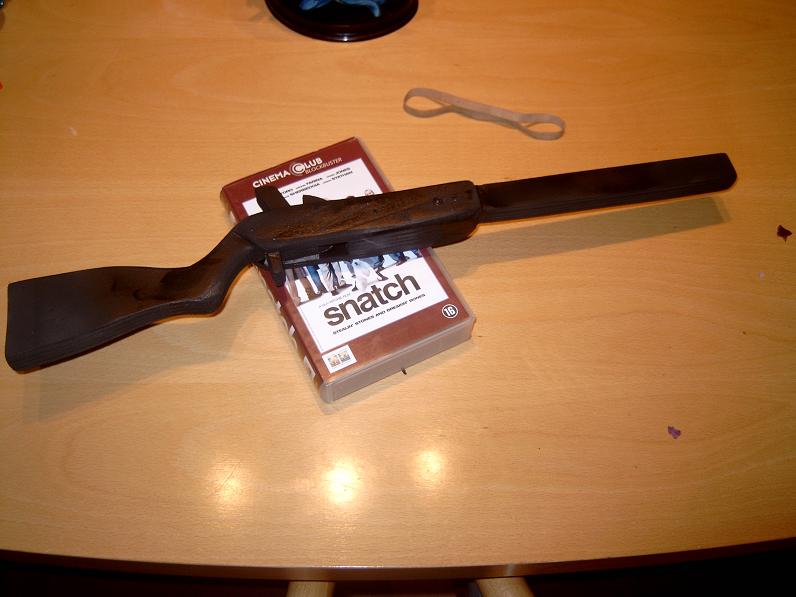

Ain't she a beauty??<br />&amp;quot;my most powerfull gun to date&amp;quot;<br />Not quite this time...still a fun project.My son loves it!!( although he asked me if I could make him an AK47 aswell.&amp;quot;dad I want the soldier rifle too!!&amp;quot;)<br />Paint still drying in the pic BTW.<br />Ofcourse it's flat black
Ain't she a beauty??
&quot;my most powerfull gun to date&quot;
Not quite this time...still a fun project.My son loves it!!( although he asked me if I could make him an AK47 aswell.&quot;dad I want the soldier rifle too!!&quot;)
Paint still drying in the pic BTW.
Ofcourse it's flat black
LOCK AND LOAD!!!<br />All charged up..are you getting ready to duck yet??
LOCK AND LOAD!!!
All charged up..are you getting ready to duck yet??

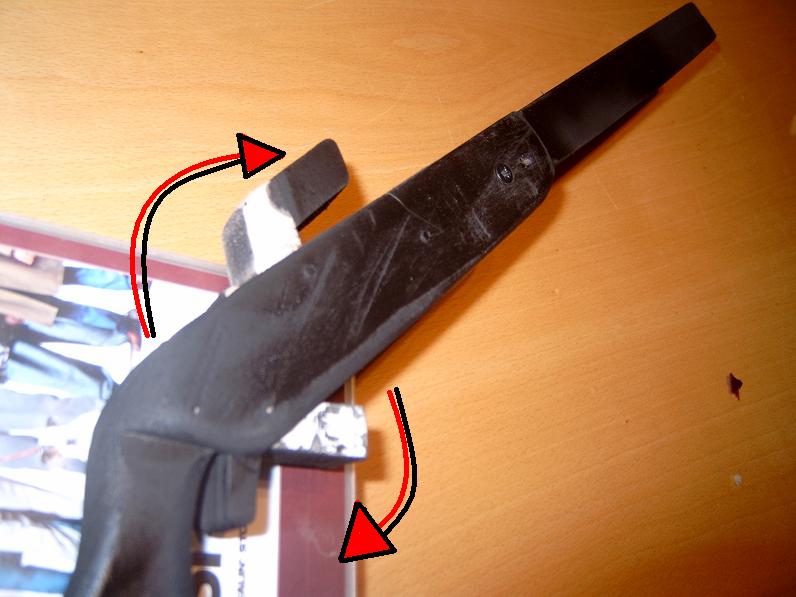

and this is what happens when shot.<br />The action is very smooth and does not cause any wear on the rubber bands.
and this is what happens when shot.
The action is very smooth and does not cause any wear on the rubber bands.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

Mon Oct 08, 2007 1:56 pm

Pretty cool trigger mech. Can you go into a little more detail into how the trigger works?
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
Top
User avatar
Fnord
First Sergeant 2
First Sergeant 2
Posts: 2239
Joined: Tue Feb 13, 2007 9:20 pm
Location: Pripyat
Been thanked: 1 time
Contact:
Contact Fnord

Mon Oct 08, 2007 2:00 pm

Not exactly a "pneumatic" is it? :wink:
But still, would be fun for class, if people didn't freak out about stuff like that anymore.
Next you'll have to make one that shoots bike tire tubes.

Maybe we should have an "other projectile launchers" section for trebuchets and gauss/rail guns and stuff.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Mon Oct 08, 2007 2:06 pm

Well...when it comes to range this thing "blows" so I say it's a pneumatic.

There is no section for a thing like this so I decided to post it here, since all of my stuff is in here.
Actually, if you load up a bunch of rubber bands and keep them attached at the muzzle by a bracket of some sort, it would shoot marbles pretty well.And silently I might add..
Attachments

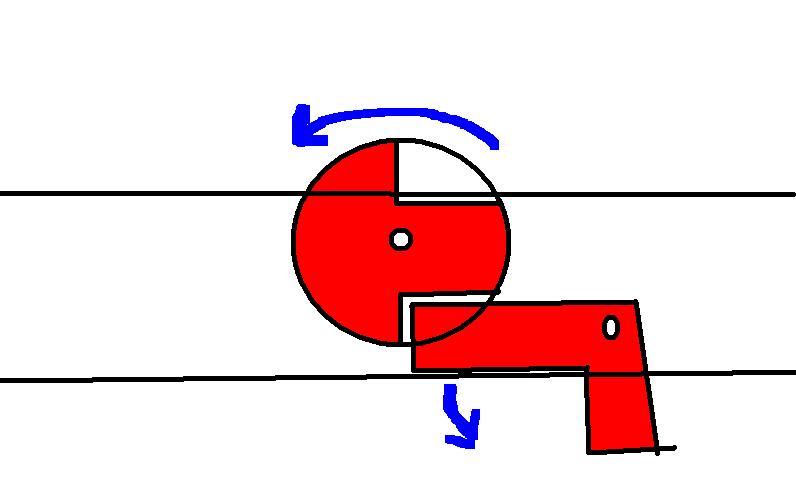

this is the basic idea...a roller and a stop.It can take huge amounts of force and still have a smooth triggerpull..<br />when the trigger is pulled, the block can rotate freely.No snagging or wearing on the rubber band ( or bowstring) I just added a &amp;quot;hammer&amp;quot;on the top side of the roller for looks.
this is the basic idea...a roller and a stop.It can take huge amounts of force and still have a smooth triggerpull..
when the trigger is pulled, the block can rotate freely.No snagging or wearing on the rubber band ( or bowstring) I just added a &quot;hammer&quot;on the top side of the roller for looks.

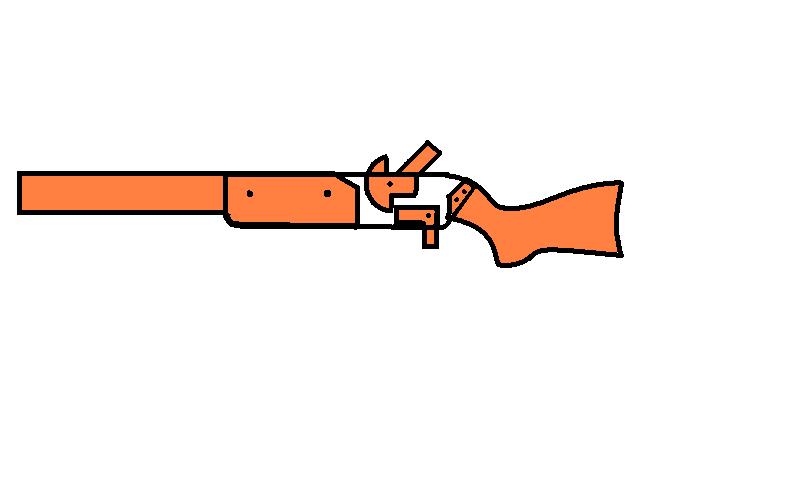

This is the plan.<br />Use 1/2&amp;quot;plywood for the center pieces ( sand the action so it is slightly thinner)<br />Use 1/4 inch plywood for the sides.<br />You can now replicate you favorite guns and shoot your friends with it!<br />Use eyeprotection!!
This is the plan.
Use 1/2&quot;plywood for the center pieces ( sand the action so it is slightly thinner)
Use 1/4 inch plywood for the sides.
You can now replicate you favorite guns and shoot your friends with it!
Use eyeprotection!!
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
mega_swordman
Corporal
Corporal
Posts: 526
Joined: Wed Nov 29, 2006 2:37 pm
Location: Bay Area, California
Contact:
Contact mega_swordman

Mon Oct 08, 2007 2:49 pm

That's really neat. I'll have to try this sometime. Seems kinda funny that earlier today I was talking with my friend about making a rubberband gun.
"Never tell people how to do things. Tell them what to do and they will surprise you with their ingenuity." George S. Patton
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Mon Oct 08, 2007 3:02 pm

It took me one hour from raw material to finished product.
So it's worth the effort.
Remember: more bands means more power!!This could easily be used to propell a marble.
I've shot a marble halfway into solid wood with an earlier version
(using 40 rubber bands and two pulleys)
If you put on more bands, you can increase the power a lot without much effort.It will shoot a marble faster then some pneumatics on this site.( just cut the "barrel" at maximum stretch)

Not that I'll tell my son about that any time soon...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
Velocity
Sergeant
Sergeant
Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm

Mon Oct 08, 2007 4:51 pm

Very nice construction; I'm sure your son is happy. And I like your brown wallpaper as well :lol:
Top
User avatar
Marco321
Corporal
Corporal
Posts: 540
Joined: Tue May 15, 2007 2:56 am
Location: Sydney, Australia

Tue Oct 09, 2007 9:26 pm

That is very nice. I have always really liked the things you make. I have been inspired to construct my own wooden stock :D

Once again its very cool
Failure to plan is planning to fail.

The 7 P's - Proper Prior Preparation Prevents Piss Poor Performance
Top
User avatar
ammosmoke
Sergeant
Sergeant
Posts: 1011
Joined: Wed Sep 27, 2006 10:57 am

Tue Oct 09, 2007 9:38 pm

Pretty awesome for a rubber band gun. I made one once that allowed you to fire merely by flicking the rubber bands off with your thumb... It was pretty darn effective!! At least for rubber band fights... That was when I wasn't allowed to have airsoft. Now, I have pretty much dropped rubber band guns.
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Tue Oct 09, 2007 9:47 pm

Very cool, good choice with that Snatch VHS, I just bought that on DVD, one of my favourite movies.
Top
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Wed Oct 10, 2007 2:13 pm

Have you seen Lock. stock and two smoking barrels??
Same director.I liked that one even better.

Is anybody building a copy of this yet??
It makes one hell of a harpoon gun too BTW..
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
Top
User avatar
dauphinoise potato
Specialist
Specialist
Posts: 105
Joined: Sun Jul 15, 2007 8:36 am

Wed Oct 10, 2007 2:24 pm

Thats great, i love that trigger mech. I spent all of today shooting people with paper pellets out of rubber bands lol.
It's all a bunch of tree huggin' hippie crap!
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Wed Oct 10, 2007 9:36 pm

Brian the brain wrote:Have you seen Lock. stock and two smoking barrels??
Same director.I liked that one even better.

Is anybody building a copy of this yet??
It makes one hell of a harpoon gun too BTW..
Yes I have, I like Snatch better but LSTSB is more original, it is very good but I just like Snatch. Have you seen Lay3r Cake?
Top
User avatar
thespeedycicada
Specialist 4
Specialist 4
Posts: 429
Joined: Sun Aug 12, 2007 1:28 am

Wed Oct 10, 2007 9:44 pm

I have seen it.Awsome movie was that actor (forgot his name) in casino royale or was i just hallucinating?
current projects: co-axial piston valve.Status DONE!
S.P.E.C.S update mk 1 construction begining in febuary all the maths for it are done plans are drawn up and parts are listed.
NEXT project:auto piston valve.
Top
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Wed Oct 10, 2007 10:01 pm

Yes it was Daniel Craig, I think BTB would like for us to get back on topic now.

BTW BTB, I finally coughed up a full metal cannon, search for 'SGP' in the quick search and it should come up.
