Well, this is my new gun i just put together. Right now the paint is drying so no damge yet. this gun is fired by an air tank. So this is how it works i have a gallon carry air tank i just tap in a thread for the blow gun and attach the hose from the carry air tank to the gun when i prress the blow gun the pressure goes in and the disk burst. As you can see i have no union yet. I will get that tomro cuase its christmas today and home depot is closed :( .
The barrel is 1.5 inch and 3 feet long
Chamber is also 1.5 inch.
Hope you like my cannon :D
Edit*
i got my union!
and i made my fireing system
Attachments

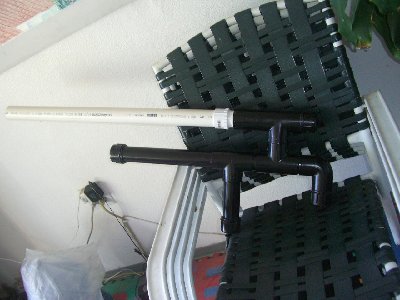

the gun
the gun
gun again
gun again

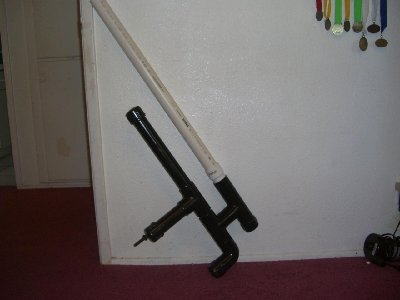

better picture
better picture
this is the firing system of my cannon
this is the firing system of my cannon

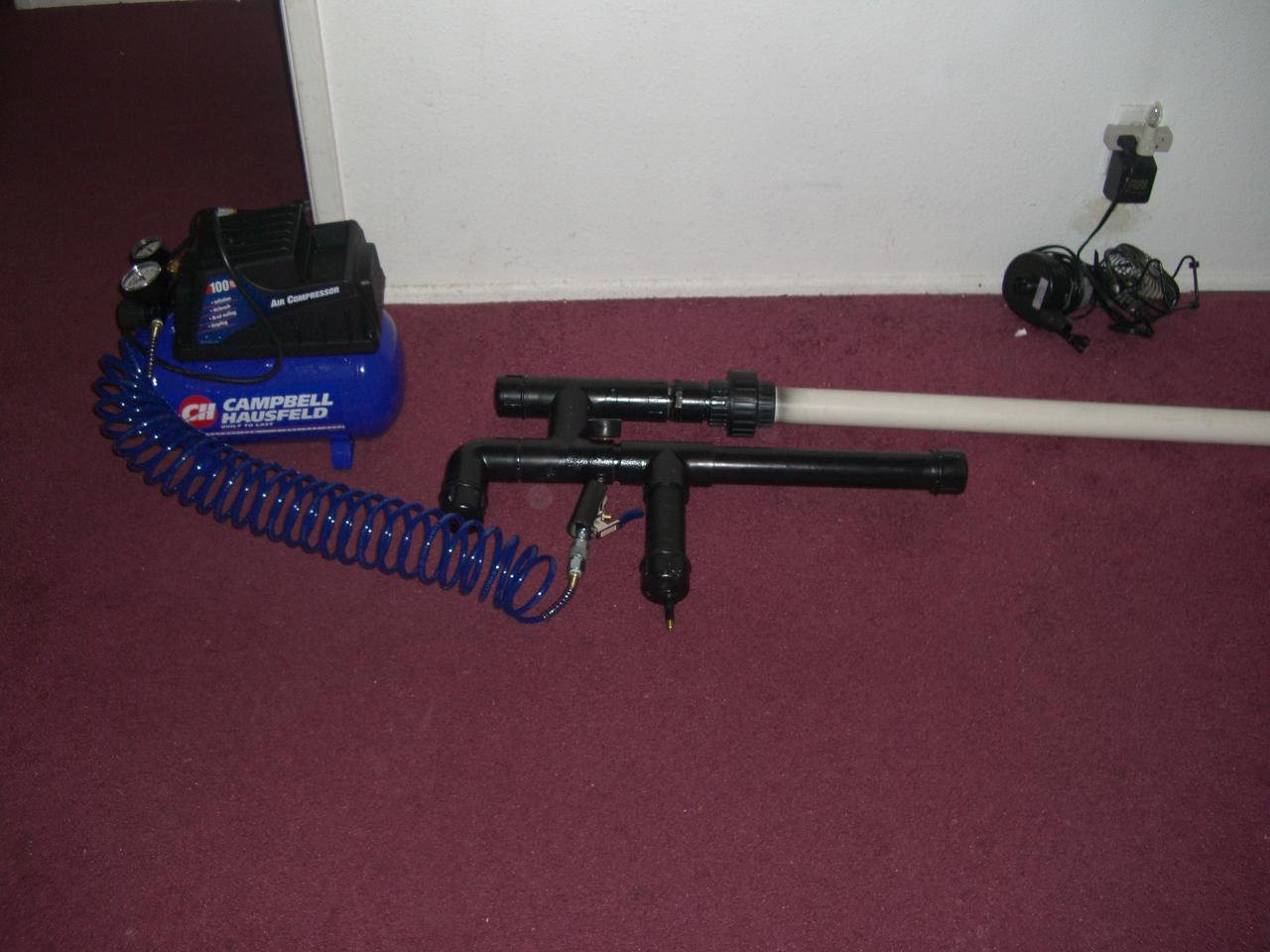

my work shop ,my cannon and my fireing syystem i bought a small 2 gallon compressor :] ,hey im 13 dont gots a lot of money you know
my work shop ,my cannon and my fireing syystem i bought a small 2 gallon compressor :] ,hey im 13 dont gots a lot of money you know
damage to cement wall at 125 psi using a steel slug filled with concrete you can see its stuck inside the hole
damage to cement wall at 125 psi using a steel slug filled with concrete you can see its stuck inside the hole
the penatration of a lemon at 70 psi
the penatration of a lemon at 70 psi

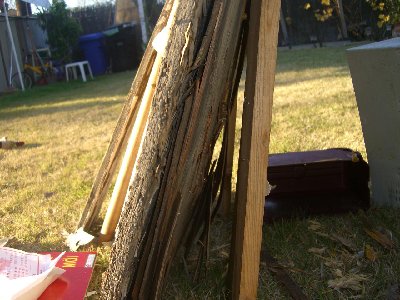

my damage to plywood at 70psi using a lemon
my damage to plywood at 70psi using a lemon
Last edited by elitesniper on Mon Dec 31, 2007 6:51 pm, edited 5 times in total.
Top
carter
Private 4
Private 4
Posts: 77
Joined: Mon Mar 05, 2007 2:47 am

Tue Dec 25, 2007 5:25 pm

cool how long does it take to break the burst disk. nice job
At my lemonade stand I used to give the first glass away free and charge five dollars for the second glass. The refill contained the antidote
Top
sjog
Specialist 4
Specialist 4
Posts: 440
Joined: Sun Oct 15, 2006 9:43 pm
Location: Marthas Vineyard

Donating Members

Tue Dec 25, 2007 5:27 pm

Try again on the pic. Black on black don't make it.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 5:31 pm

oh sorry lol its acualy green but ok lol hold on.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Dec 25, 2007 5:34 pm

Yea, looks like black on olive green. The dark pic makes it hard to see the cannon. Move the chairs and lean it against the white wall. The pipe is a off white so it will still be easy to see.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 5:46 pm

there guys can you see it better now?
Top
sjog
Specialist 4
Specialist 4
Posts: 440
Joined: Sun Oct 15, 2006 9:43 pm
Location: Marthas Vineyard

Donating Members

Tue Dec 25, 2007 5:46 pm

no feet as well lol
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Dec 25, 2007 5:59 pm

Yea, much better. I bet when the disk breaks it's a heck of a commotion goes on! Hows the anticipation waiting for it to go off? Fun fun.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 6:04 pm

Well the purpose of this cannon is for the noise :D haha a wana annoy the heck out of my next door neighbor, everyone in the neighborhood hates him anyways.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Dec 25, 2007 6:10 pm

elitesniper wrote:Well the purpose of this cannon is for the noise :D haha a wana annoy the heck out of my next door neighbor, everyone in the neighborhood hates him anyways.
Well if thats why you built it a spray and pray would be more annoying and way easier. But their all fun! :twisted:

P.S. We want a picture of the police report when they come and write you up. Lol.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 6:19 pm

haha naw the rest of the neighbors like us,we bring food to each other and stuff;D do you think this cannon will perofrm well? cuase im getting my union tomro
edit.
HOLY CRAP..
i just ested this for the first time.. and it bursted at 20 psi but went 69.4yards!
Top
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Tue Dec 25, 2007 7:36 pm

Nice cannon, looks great, but are those galvanized steel fittings or pvc?
It's hard to soar with eagles when you're working with turkeys.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 7:53 pm

those are painted pvc hehe :D
Top
User avatar
DYI
First Sergeant 5
First Sergeant 5
Antigua & Barbuda
Posts: 2862
Joined: Sat Jul 07, 2007 8:18 pm
Location: Here and there

Tue Dec 25, 2007 8:43 pm

Nice. I see it works a lot like the MBDC. Probably more power though, due to the wider bore and larger porting.

Looks pretty good. What do you use for disks?
Spudfiles' resident expert on all things that sail through the air at improbable speeds, trailing an incandescent wake of ionized air, dissociated polymers and metal oxides.
Top
User avatar
elitesniper
Sergeant
Sergeant
Posts: 1090
Joined: Sat Oct 13, 2007 8:40 pm

Tue Dec 25, 2007 8:50 pm

thanks, i use
alumnum foil, plastic bags, those laminated covers for paper and plastic wrap is what i use for disk
