The Enforcer revisited

[biggsauce]

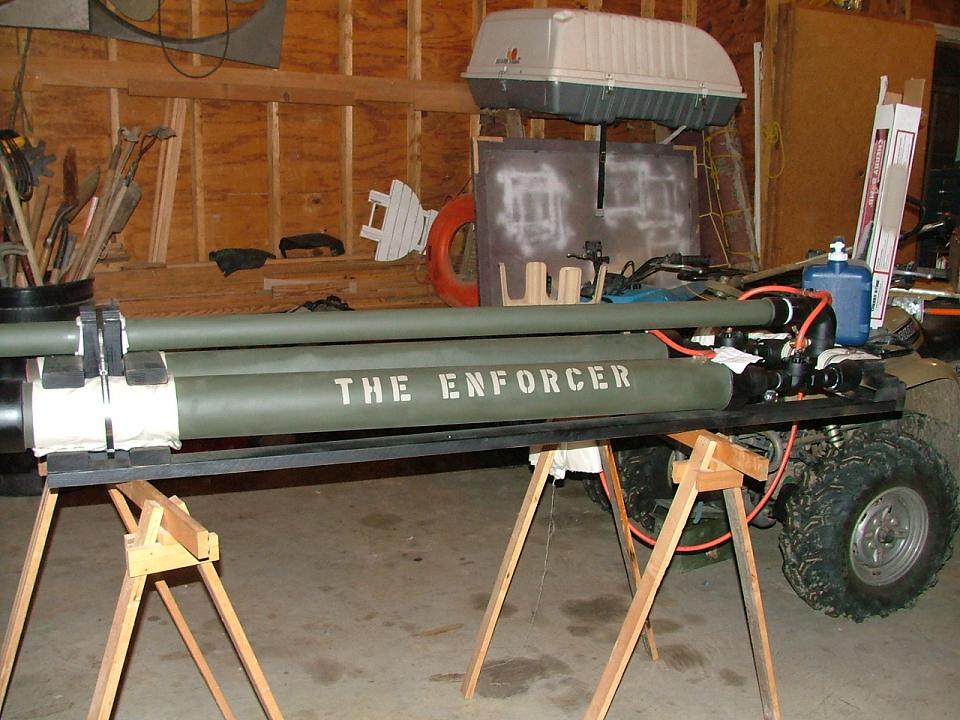

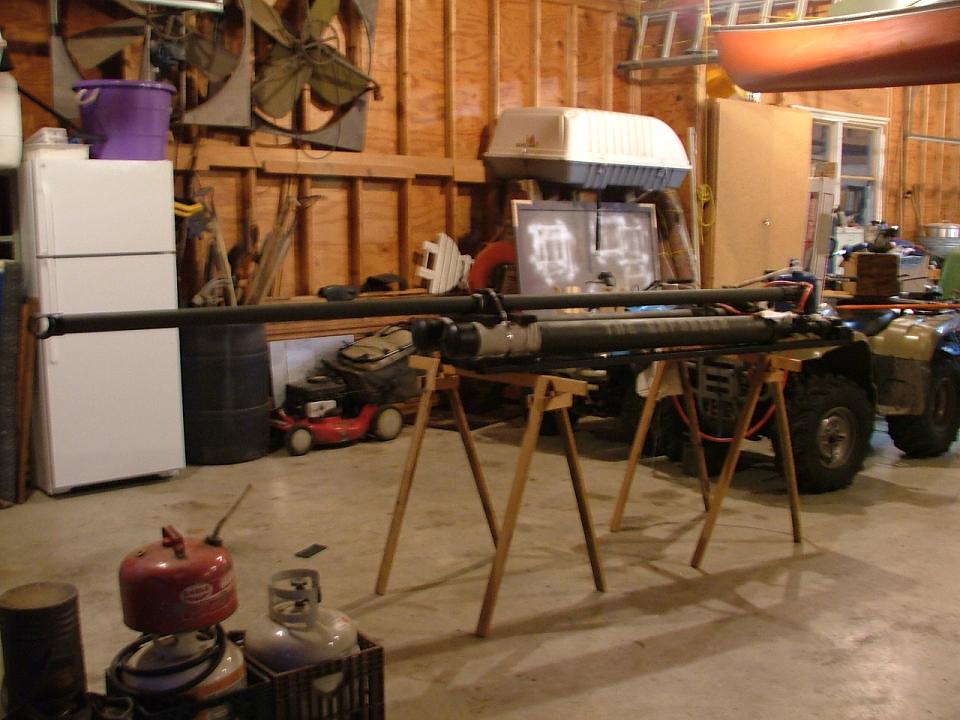

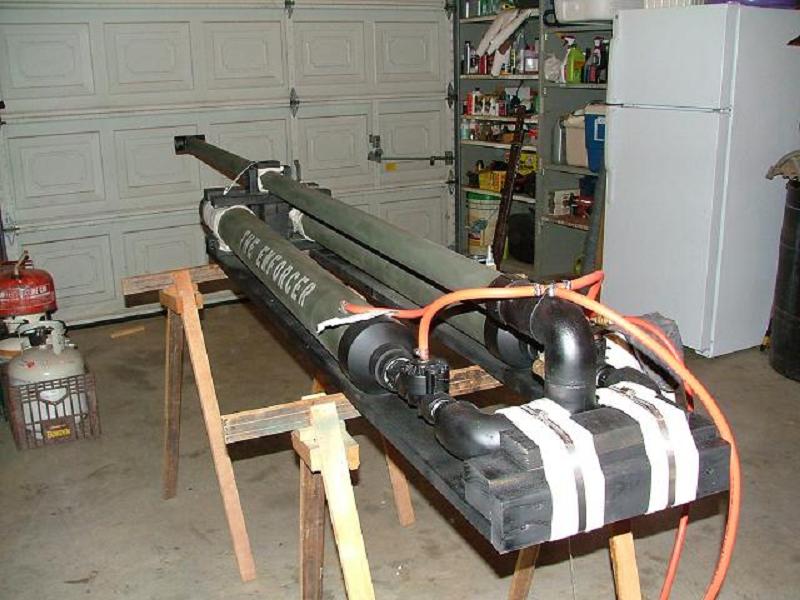

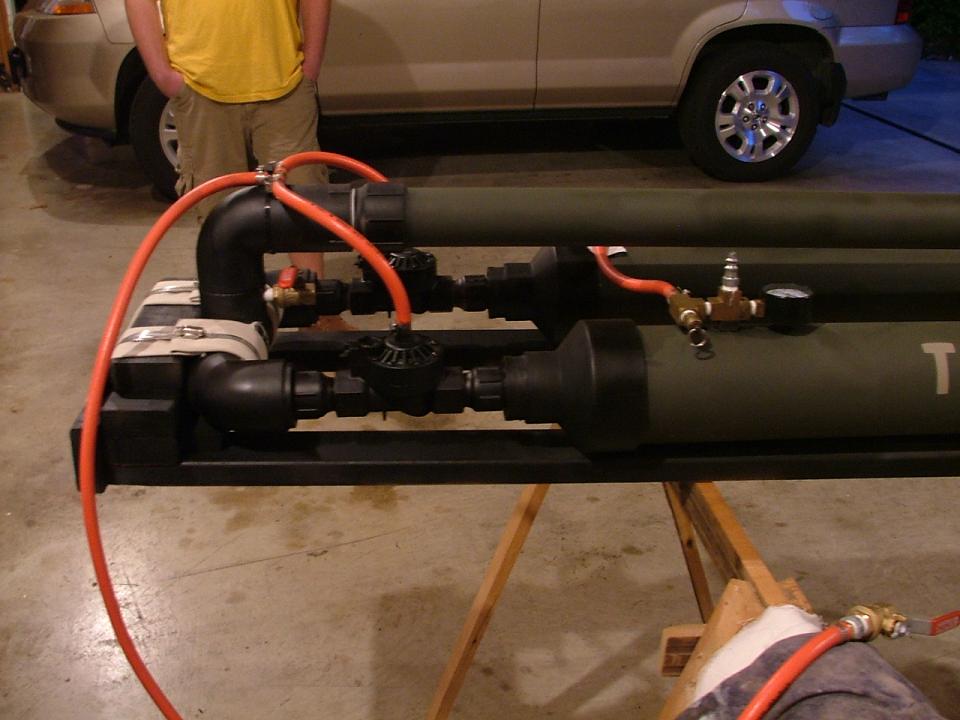

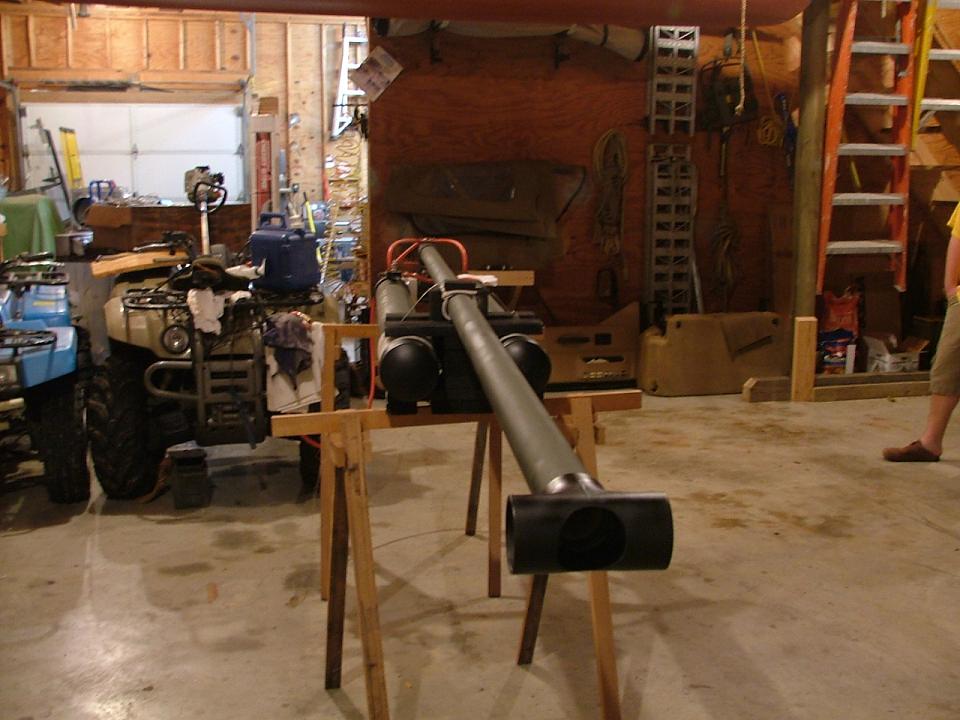

Hey yall this is my first pneumatic I built. Pretty simple, 2 4" x 5' tanks, 2 ball valve piloted 1" sprinkler valves into either a 2" x 10' or 2.5" x 8' barrel. It will put a trailer hitch ball clean through an oil drum and is a blast with tennis balls

Let me know what yall think

[Grizzlybear]

i want to ask you what is the pressure you use on this gun???

[Jared Haehnel]

Nice gun 8) I really like the paint job... 8) How far can it send a projectile and what kind of damage can it do?

[Maniac]

Is that a bell reducer because that is extremely dangerous

[biggsauce]

Thanks guys, sorry for the lack of damage pics, i'll try to get those up asap

Like i said, it put a hitch ball through an oil drum at work and for distance, i can only guess. The highest I brought it to was 95 psi, and I shot a 2" allthread stud 350+ yards before it hit a tree. Its a lot of fun especially when i would strap it to the top of my jeep to carry it to the farm. Defifintely got a lot of double takes going around town.

[Jared Haehnel]

How big was the stud?

[biggsauce]

It looked less than 2" and i wedged it into a chaulking tube with som duct tape and some litium grease to help it slide real nice with a tight fit. It was a stud i pulled from a compressor block at work It was about 8" long so it had some purdy good momentum

And yeah the bell reducers. I'm taking this one apart anyway and at the time i built it, i didnt know about the dangers of those, but thanks

and thanks for the compliments!

[Jared Haehnel]

Its too bad because its a nice looking cannon...Honestly I like the look of the bell reducers even if they aren't the safest....not that I am suggesting one should use them. I made that mistake on my first combustion. I still use it so if you here about some dude killed by a bell reducer exploding you know who it is

[biggsauce]

Haha I hear that

Yeah thanks, it is a shame, I spent a long time on the paint, but the cannon it will help make will still use the same paint scheme, both valves, but will be a more portable coaxial model. This thing is just hard to move and although I like the long tanks, its not needed. Shorter recharge time = more fun!

[Jared Haehnel]

I would change from the sprinkler valves to piston valves...It makes a big difference in performance. I'm making a large cannon of my own that is similar in design... only bigger....

[biggsauce]

I agree the piston valves will come in time. Its about that time to go sit on the floor in the plumbing isle in home depot and start dreaming

[Jared Haehnel]

Do it for too long and they'll have to mop up the drool...I look forward to see what else you come up with... 8)

[Maniac]

Hey really nice cannon though i like it a lot and jared for some odd reason i like the look of bell reducers too. Do you have any pics of the oil drrum too?

[biggsauce]

haha true!

thanks again yall
I do have some pics, but not of the hitch ball damage, albeit still cool. Its on my phone so when i get to my pc I'll have em up for yall

[bigbob12345]

very nice
but you used DWV and the sprinkler are constricting flow like mad

im sure the DWV has already been metioned so i wont get into that but the sprinklers are really limiting the power.
make two large piston valves and put them on, your power increase will be amazing

but uif you ignore those two things then i really like it
nice paint job by the way
