VALVE CUTAWAY
Provided By - Longshot

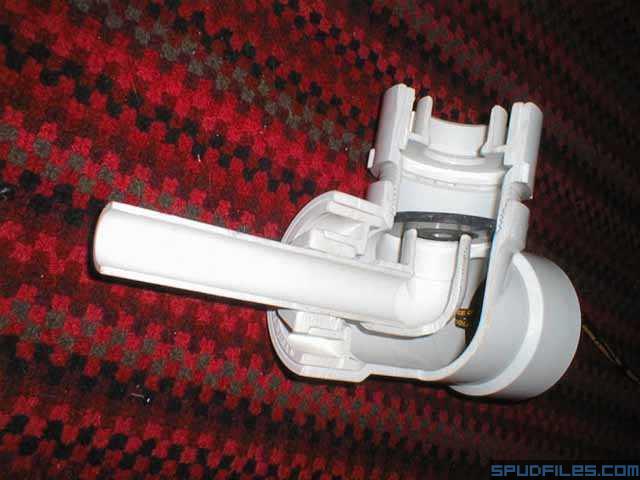

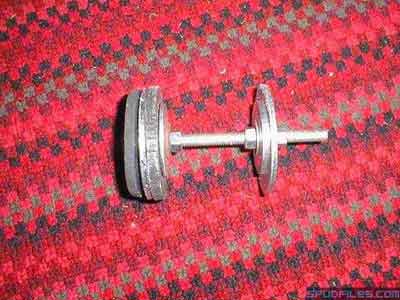

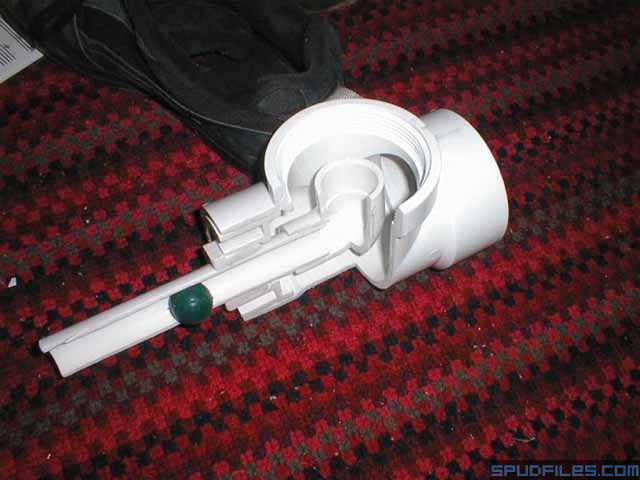

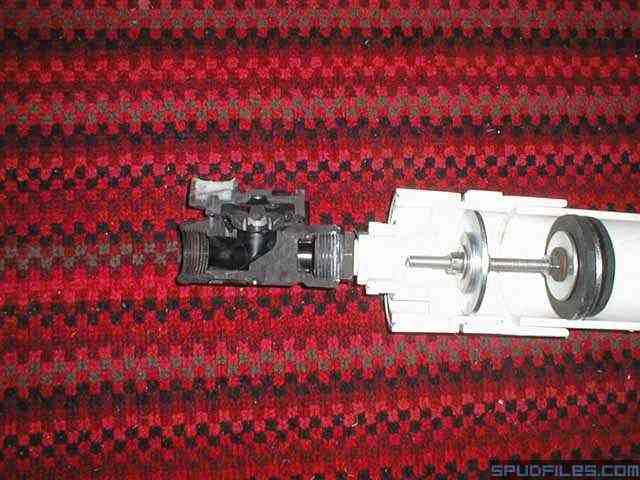

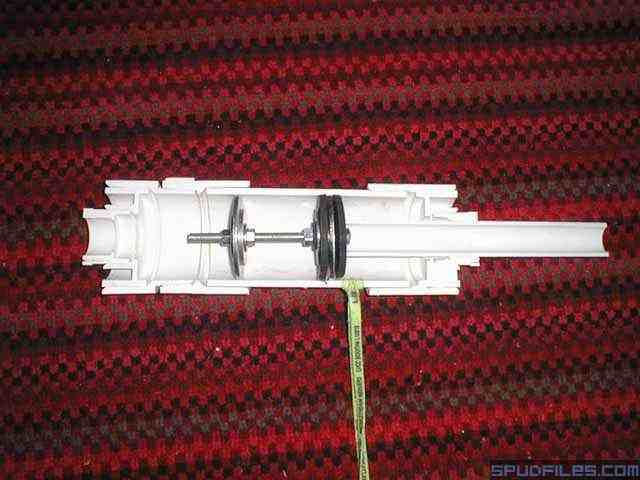

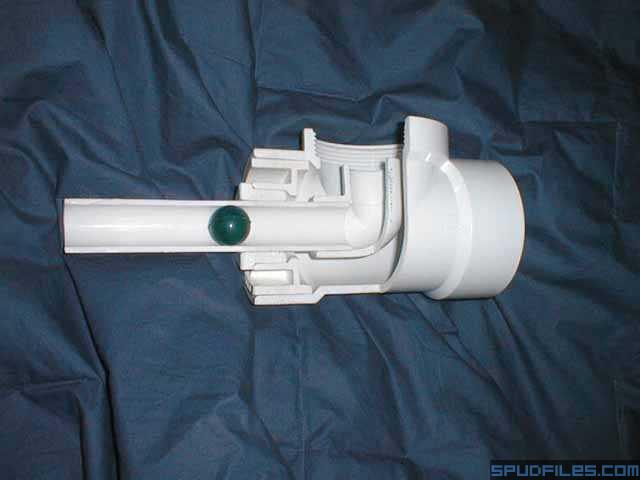

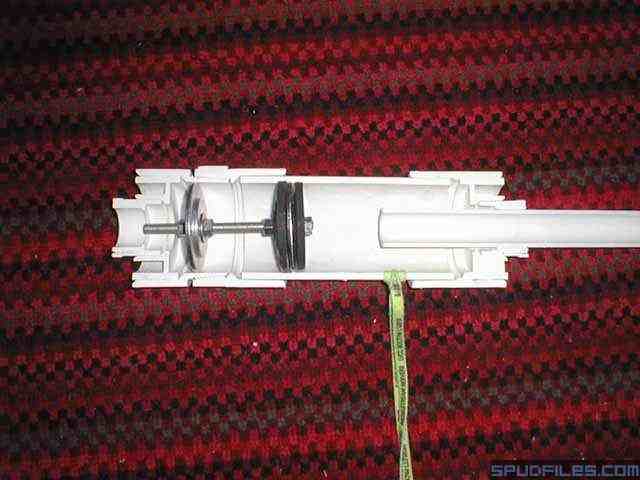

These are some pictures of some of the most popular valves used on spud cannons. Only difference is, these valves are cut in half to give you a better idea of their workings.
Provided By - Longshot
Valve Cutaways
-
PCGUY
- Owner
- Posts: 1434
- Joined: Wed Aug 18, 2004 10:54 pm
- Location: Illinois
- Has thanked: 2 times
- Been thanked: 26 times
- Contact:
- Attachments
-
- IMAGE0015.jpg (27.26 KiB) Viewed 18737 times
-
- IMAGE0025.jpg (26.36 KiB) Viewed 18737 times
-
- IMAGE026.jpg (23.62 KiB) Viewed 18737 times
-
- IMAGE027.jpg (39.89 KiB) Viewed 18737 times
-
- IMAGE0035.jpg (33.78 KiB) Viewed 18737 times
-
- IMAGE0045.jpg (16.51 KiB) Viewed 18737 times
-
- IMAGE0055.jpg (39.61 KiB) Viewed 18737 times
-
- IMAGE0065.jpg (39.3 KiB) Viewed 18737 times
Yes, I am the guy that owns & operates SpudFiles (along with our extremely helpful moderators).
-
mark.f
- Sergeant Major 4
- Posts: 3634
- Joined: Sat May 06, 2006 11:18 am
- Location: The Big Steezy
- Has thanked: 57 times
- Been thanked: 57 times
- Contact:
Maybe we should do a cutaway of a sprinkler valve... just for sh**s and giggles. I could re-acquire my old 3/4" one from my buddies garage and slice it in half. Maybe a normal barrel sealer valve would work good as well.
-
Modderxtrordanare
- Corporal 2
- Posts: 686
- Joined: Mon Nov 20, 2006 1:22 pm
- Location: Texas
Even though your question was asked a few months back, I felt the need to answer it as it went un-answered.
P.s. I like that valve very much. Looks to be top quality and very sturdy. (Other than the fact it's cut in half..)

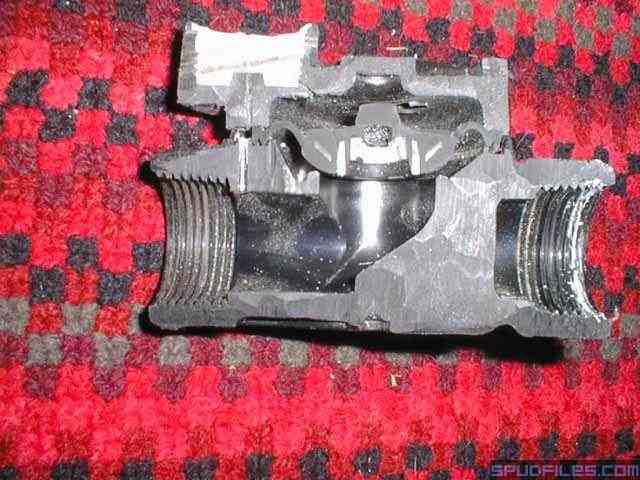

That would be a diaphram valve. Looks to be about a 2.5" or 3" Tee, I can't really tell though.Sorry to kick this but what type of valve is that? It looks like a breach loading piston valve without the piston.
P.s. I like that valve very much. Looks to be top quality and very sturdy. (Other than the fact it's cut in half..)
