AK47 and UZI style guns.

killagorrila99 · Mon Oct 02, 2006 2:34 am

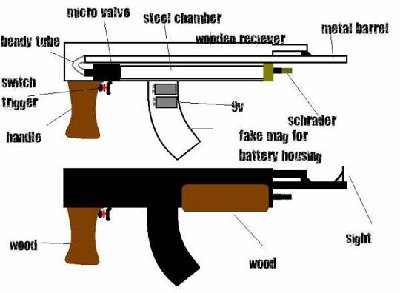

Here is a design for a ak 47 pneumatic, I didnt want to use it, Urban ninja didnt want it so im hoping somebody can use it for good/evil.
Urban ninja designed this gun and I take no credit.

Also here is my mini uzi design. Very nice if I do say so.

Benny · Mon Oct 02, 2006 3:55 am

Whats a micro valve?

COD_FILLETS · Mon Oct 02, 2006 10:18 am

Id say it looks pretty cool and seems to be a good design. Im not exactly sure what a microvalve is but can it go semi/auto?

killagoriala99 wrote:If you like this design you might also like uzi i designed?

Id also like to see that.

Edit: For the mag idea (i had something like this in my head for a while), why not use those 9 volt battery clips (the ones with the round and octagnal heads) and use 2 of them. Put one of the 9 volt battery clips into the reciever of the AK47 and the other onto the battery magazine so you can (kinda) reload your AK47 (with batteries). Ill get a pic up so show you what i mean.

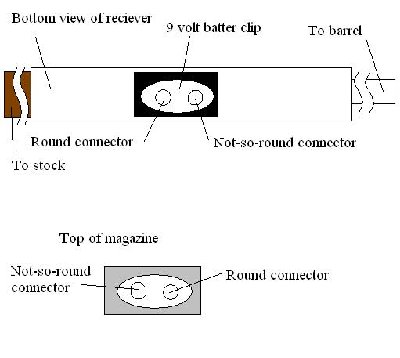

Edit: Finished the (crudly drawn) pic. If you notice, the 9 volt connectors are reversed on the reciever and magazine so that they will lock.

PVC Arsenal 17 · Mon Oct 02, 2006 5:41 pm

They have micro pushbuttun valves. 10/32, 1/8 and 1/4. Thats the smallest valve I know of

killagorrila99 · Mon Oct 02, 2006 8:11 pm

Micro valves open really fast, But I guess you could use a modded sprinkler.

singularity · Mon Oct 02, 2006 11:54 pm

can some one give me a link to a pressure rated "micro valve"?

Urban Ninja · Tue Oct 03, 2006 1:14 am

http://203.147.170.141/product_files/prd_164.jpg
Heres a micro valve, its a solenoid. You cant modify them but they work well and give a nice bang instead of a FWOOOOOM that a sprinkler makes. I started making this gun a while ago but never got round to finishing it up.

POS · Tue Oct 03, 2006 10:35 am

do they open and close as you connect and disconnect electricity ? I mean, can you use them for several bursts ? Or do they just open and stay open. What is the pressure they can work on ?

Edit : BTW, this is a nice design. Show us your UZI design as wel man.

singularity · Tue Oct 03, 2006 4:30 pm

when you apply power it opens when you turn off the power it closes

Urban Ninja · Tue Oct 03, 2006 8:07 pm

If you connect a momentry switch you can make it semi auto. My dad has a degree in electronics and he is making me up a circuit to make it full auto. All I need now is a good mag.

singularity · Tue Oct 03, 2006 10:41 pm

you know all you need to make it fully auto is like a ne555 timer and maybe a transior/scr depending on the power needed to turn on the switch

beebs111 · Wed Oct 04, 2006 4:43 pm

do you have a link to a product page of a micro valve, how much do they cost?

killagorrila99 · Mon Oct 23, 2006 12:14 am

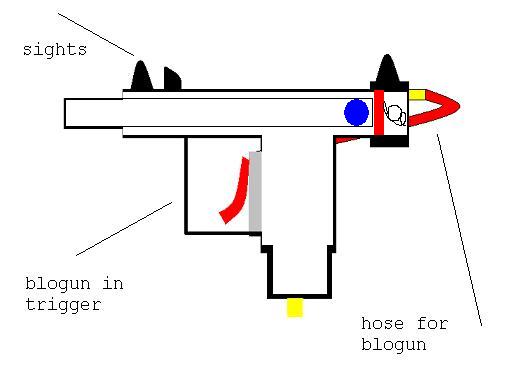

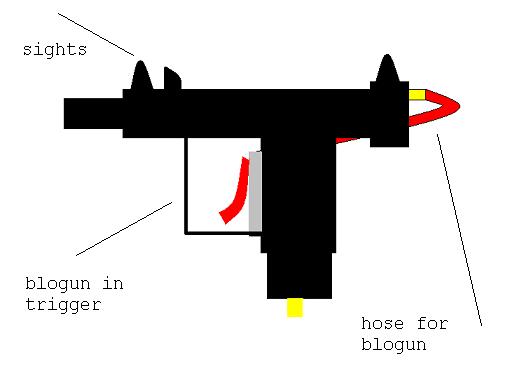

Update: My uzi design aswell.

frankrede · Mon Oct 23, 2006 1:16 am

Nice, I like the whole microvalve part.So would it be used for airsoft?If you had a small enough valve, you could get plenty of shots out of a chamber thats at high psi.

killagorrila99 · Sun Nov 05, 2006 12:26 am

Hmmm true. I'm actually building that uzi atm.
