Mon Jan 31, 2005 11:41 pm

<div align="center">PPK

Provided By FoxxLord - <a href="http://www.geocities.com/cain333_2000/" ... 3_2000/</a>

I made the PPK (Put-Put Kannon) right after I made the Punisher, thus they share very similar designs. PPK was basically an experiment on how small I could make a cannon with the parts I had laying around, it's actually pretty Frankenstein if you take a closer look at it.

Never got around to really test firing it, it'll blast a AA battery pretty fast though, that's all I've done with it. Damn I hate living in an apartment.

Provided By FoxxLord - <a href="http://www.geocities.com/cain333_2000/" ... /</a></div>
Attachments

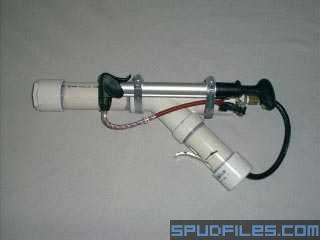

Here's a side view, I used a cheap Wal Mart ball pump hose clamped to the side. The gun is 1.5&amp;quot; PVC pipe with a .5&amp;quot; coaxial barrel.
Here's a side view, I used a cheap Wal Mart ball pump hose clamped to the side. The gun is 1.5&quot; PVC pipe with a .5&quot; coaxial barrel.

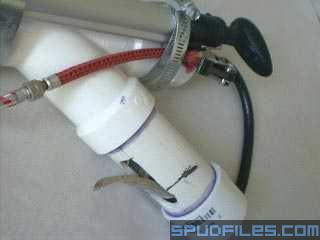

A closer look at the handle reveals the PPKs trigger set up. I cut a slot in the 1.5&amp;quot; pipe and stuck a butchered blowgun in it. Of course I had to seal the bottom leg of the Wye with a PVC disk. Unfortunately the trigger setup is pretty awkward, as you can see, it's up side down and a little low on the handle.<br /><br />Also a good picture to see the inlet hose splice and typical lever style Schrader connector. Yeah, pretty ghetto but like I said, I was recycling parts!
A closer look at the handle reveals the PPKs trigger set up. I cut a slot in the 1.5&quot; pipe and stuck a butchered blowgun in it. Of course I had to seal the bottom leg of the Wye with a PVC disk. Unfortunately the trigger setup is pretty awkward, as you can see, it's up side down and a little low on the handle.

Also a good picture to see the inlet hose splice and typical lever style Schrader connector. Yeah, pretty ghetto but like I said, I was recycling parts!

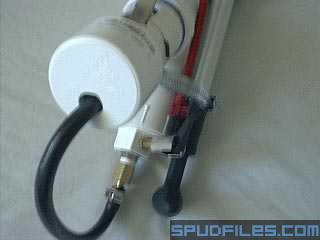

Just a shot of the end cap I drilled a hole in for the pneumatic line. The hose leads to the nipple on the plug. If you haven't guessed PPK is a simple diaphragm gun.
Just a shot of the end cap I drilled a hole in for the pneumatic line. The hose leads to the nipple on the plug. If you haven't guessed PPK is a simple diaphragm gun.

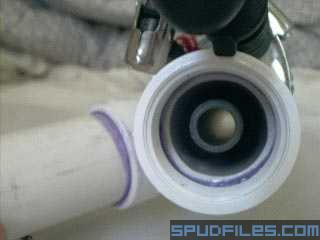

This is the back of the gun with the plug removed. Like I said, simple! Looks like the barrel was glued a little crooked, oops!
This is the back of the gun with the plug removed. Like I said, simple! Looks like the barrel was glued a little crooked, oops!

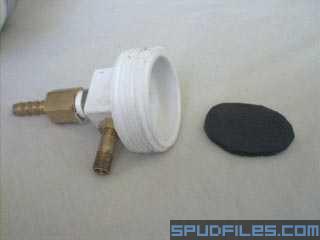

Lastly is a picture of the &amp;quot;heart&amp;quot; of PPK, the cap was kind of difficult to make. The 1/4&amp;quot; nipple was in the way of the 1/8&amp;quot; Schrader so I had to cut a notch out of the nipple threads. It went together good though with a little JB Weld!<br /><br />The black disk is just 3/16&amp;quot; neoprene.
Lastly is a picture of the &quot;heart&quot; of PPK, the cap was kind of difficult to make. The 1/4&quot; nipple was in the way of the 1/8&quot; Schrader so I had to cut a notch out of the nipple threads. It went together good though with a little JB Weld!

The black disk is just 3/16&quot; neoprene.
Last edited by PCGUY on Wed Mar 22, 2006 8:21 pm, edited 1 time in total.
Yes, I am the guy that owns & operates SpudFiles (along with our extremely helpful moderators).
