Build Log: MFIC

Boom! The classic potato gun harnesses the combustion of flammable vapor. Show us your combustion spud gun and discuss fuels, ratios, safety, ignition systems, tools, and more.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Mon Aug 05, 2013 4:03 pm

4 relatively small rails should work, mount the cannon on a platform with 4 rails under it then mount all on your base. A tiny rail (30cm long 1cm wide worked for my hybrid)
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Mon Aug 05, 2013 4:18 pm

But then the point of motion is way beneath the cannon's center of gravity. I'm trying to minimize any bucking from the recoil, to minimize the amount of stress on the plastic fittings. I also feel using two rails instead of four ensures more parallel sliding and smoother construction.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Mon Aug 05, 2013 11:47 pm

Here's a possible alternative, using a coaxial ring mount in the same way most tank guns work: http://www.inetres.com/gp/military/cv/weapon/M256.html

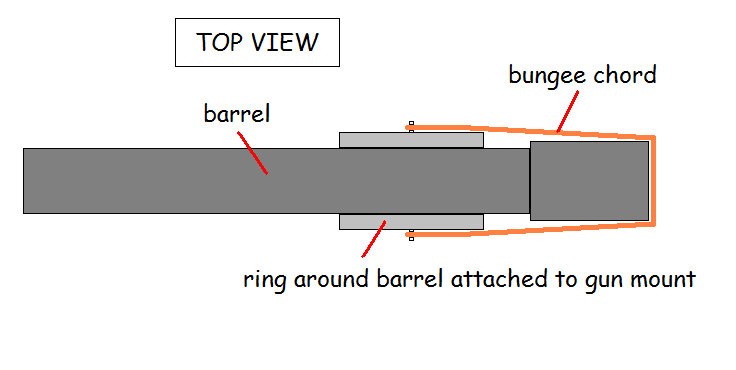

Here's how it looks in my mind, bungee chord is the easiest but pistons would be cooler:
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 1:24 am

That may seem more feasible. I don't think I'd do that around the barrel though. There's plenty of great methods to handle recoil, the problem with my design is it's over/under. This would have been done already otherwise. :)
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:

Tue Aug 06, 2013 5:16 am

6in is certainly a large bore...... especially for a non-metallic barrel. What is the general weight range of the projectiles you intend to launch?
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 10:56 am

My HGDT reference weight has been 80oz.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Aug 06, 2013 4:40 pm

Blimey, that's more than 2 kg... you're definitely going to need that recoil system!
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 4:55 pm

Yup!

10-11k ft-lbs muzzle energy, nearly 700lbs of recoil force, launcher would recoil at a speed of 9.4ft/s, 80-100ft-lbs of free recoil... if I did my math right. I based the calculations on a launcher weight of 180lbs.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Aug 06, 2013 5:03 pm

Are you planning to mount it on a wheeled carriage?

If left free it will act as a dual recoil system, a la 21 cm Mörser 18:

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 5:19 pm

The carriage will be wheeled, but I will be securing it to the ground when in use. I don't want it to move when fired, honestly :) (though seeing you post that video countless times before, it was a design consideration)
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 6:40 pm

Gotta hand it to the Germans for utilizing such great technology. Especially using a horizontal sliding breech in a class of artillery that pretty much universally uses an interrupted-screw style, even though it also uses caseless ammunition.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Aug 06, 2013 11:44 pm

Blitz wrote:Especially using a horizontal sliding breech in a class of artillery that pretty much universally uses an interrupted-screw style
EvenDora used a sliding breech :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Aug 06, 2013 11:47 pm

It IS a better design, IMO.
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Wed Aug 07, 2013 6:45 pm

Feature of the day - I received my conduit carrier kit. It's cast aluminum, has a nice finish though and feels well-constructed. It also came with four u-bolts with brackets intended to mount your pipe to your vehicle's roof rack cross-members at two points.


It has a nice thin foam layer on the inside of the lid. The two things that I am the most concerned about are how it mounts (four self-tapping screws or rivets to the pipe) and the strength of the hinge mounts (being that it's cast aluminum). The hinge mounts are reasonably thick. I'm also not a big fan of the slotted spring pins used for the door hinges. I may end up replacing them with a stronger, more secure locking pin, like a clevis pin that uses a retainer ring.


The locking mechanism is a single curved bolt held in with a compression spring and washer on the other side, pulling the bolt in. Naturally the curved part of the bolt is what secures the door, but it's rather difficult to consistently pull to release the door because there's a lot of play, and friction binds it up sometimes. I'm tempted not only to replace the entire bolt with a custom one, but also to insert a bearing or bushing to keep that thing centered all the time. Again, I think I want a more robust mechanism. I'll play around with a few ideas.
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Mon Aug 12, 2013 11:09 pm

I finally finished that chamber plug.

After pictures!



I didn't originally think about having a small inset inside the plug. That was simply to make it easier for me to turn it on the lathe.
