This is my cannon for shooting large oranges, the barrel is Ø80mm. The cannon is made from stainless steel exept the end which is aluminium for reducing wheight. . The cannon runs on special gas (70% butane 30%propane). Sorry my english isn't super, I'm from Denmark.
NEW. Tjeck out the awesome shot with the launcher at a laptop computer and a coffeemaker. It is very diffecult to see the orange at that speed, ha ha..
OrangeBomber2000. NEW tjeck video in Album
- Attachments
-

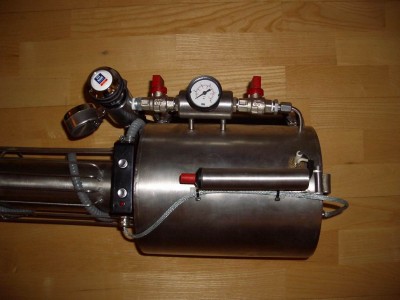

- from above, tricker from weber gas grill, all stainless stell cable
-
- the gas bottle is mountede on the side, all custommade
-

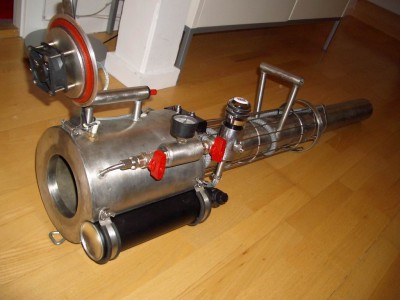

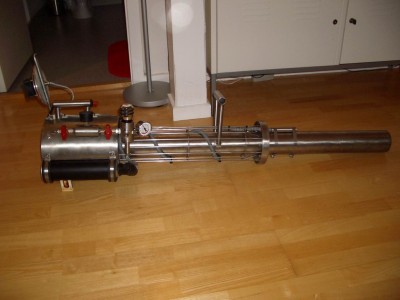

- side shot, chamber 7500 ml, barrel 5000 ml, ratio 1,5:1, 108 parts, 300 hours build
-

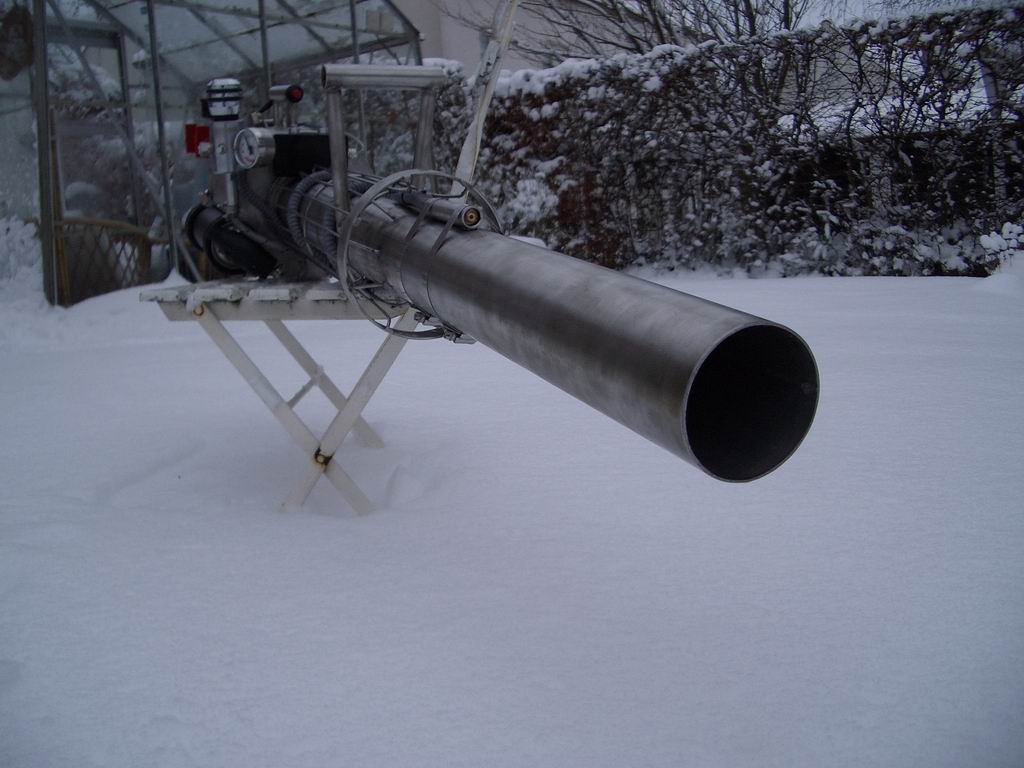

- barrel ø80mm, you can almost put your fist in it. Total length 1,3 meter
-

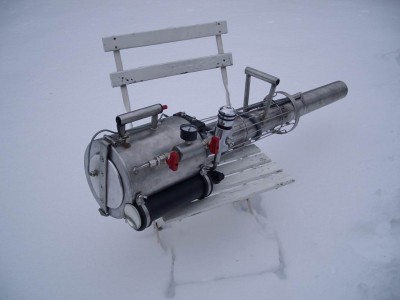

- in the danish snow, christmas 2005, machinede alumium endcap
-

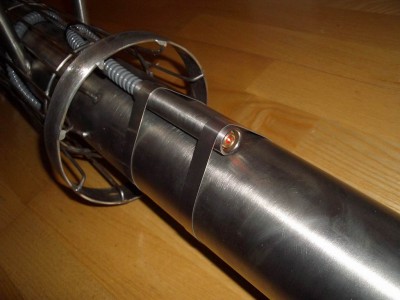

- laser, inside stainless steel tube, armored rubber tube for cables for the remote
-

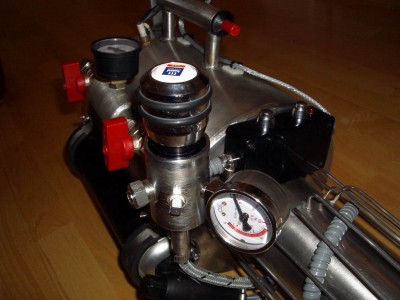

- gas meter, with regulator, plus controlbox for ventilator and laser
-

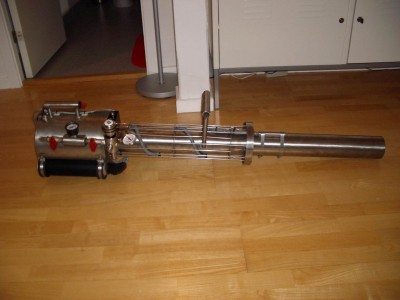

- in profile
-

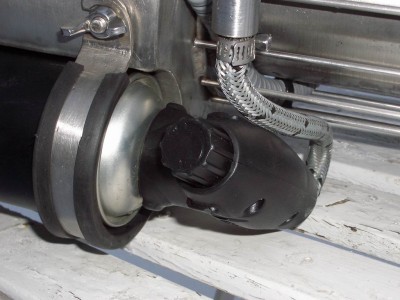

- gasbottle mount
-

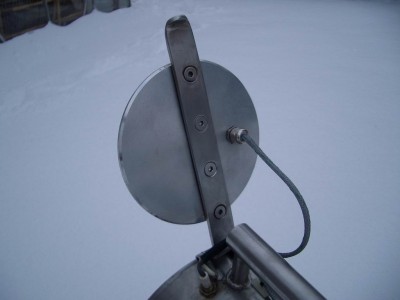

- machined alumium end cap with armored cable for ventilator
-

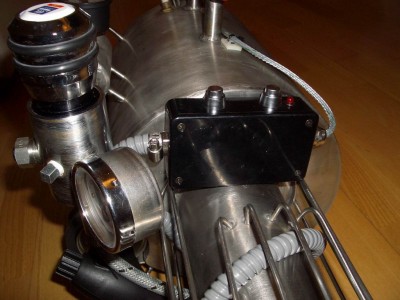

- controlbox with buttons for laser and ventilator. 9 Volt batteri inside for the ventilator...
Last edited by Klinge on Tue Jan 17, 2006 3:12 am, edited 2 times in total.
-
boilingleadbath
- Staff Sergeant 2
- Posts: 1635
- Joined: Sat Mar 12, 2005 10:35 pm
- Location: Pennsylvania, USA
That's one awsome gun. Does the ring in the middle of the barrel have any function besides ending the basket wires?
-
BC Pneumatics
- Sergeant
- Posts: 1053
- Joined: Tue Jan 18, 2005 6:55 pm
- Location: Fresno, CA
- Contact:
I tip my hat to you.
This is hands down one of the fnest launchers I have seen in my entire life.
I hope you stick around and build more things as amazing as this, and dont disapear. (Kendra....)
This is hands down one of the fnest launchers I have seen in my entire life.
I hope you stick around and build more things as amazing as this, and dont disapear. (Kendra....)
<a href="http://www.bcarms.com/"><img src="http://www.bcarms.com/images/store_logo.png" border="0"> </a>
nice gun, big bore rules!!
The special gas, is it Gasol? I've experimented with that but couldn't find the right mixture...Have you tried to shot something other than oranges?
well, I live in Uppland, a bit above you and today we have -22C
The special gas, is it Gasol? I've experimented with that but couldn't find the right mixture...Have you tried to shot something other than oranges?
well, I live in Uppland, a bit above you and today we have -22C
the ring is mostly for the mean look, but i also protects the laser and the cables for it...boilingleadbath wrote:That's one awsome gun. Does the ring in the middle of the barrel have any function besides ending the basket wires?
The cost is pretty difficult to say, because a lot of the materials I already had, but my guess is somewhere in the area of 1000-1500 us dollars + 300 work hours. Stainless steel is very expensive.Holy S*^# Its Still Going wrote:THats asome how much did it cost you and can you post some plans
The gas is pretty normal bottlegas in denmark used for small wellding equipment and camping. We havn't got 100% ´propane like in the US. The mixture I use is around 3,6 %. The cannon is used with any kind of fruit that fits the barrel, large onions, appels... snow is also fun this time of year.... your friends quickly learn not to shoot snow at you, because I will shoot back:-)Copperboy wrote:nice gun, big bore rules!!
The special gas, is it Gasol? I've experimented with that but couldn't find the right mixture...Have you tried to shot something other than oranges?
well, I live in Uppland, a bit above you and today we have -22C
Total fabrication time is around 300 hours over a period of 3-4 monthwesman987 wrote:That is one of the best looking launchers I have ever seen, excellent job. How much time do you think it took you to fabricate and machine all of the parts for it?
-
drac
- Corporal 4
- Posts: 899
- Joined: Sun Apr 24, 2005 8:56 am
- Location: Avon, NY
- Been thanked: 2 times
Oh my, I forgot to say GREAT F***ING JOB!!!
I gotta admit, that thing looks sexy. My metal combustion pales in comparison to yours. This would put mine to shame.
What do you use as an electrode? I'm thinking along the lines of a sparkplug. For my combustion, I lathed a hole through a bolt and glued a wire into it.
I gotta admit, that thing looks sexy. My metal combustion pales in comparison to yours. This would put mine to shame.
What do you use as an electrode? I'm thinking along the lines of a sparkplug. For my combustion, I lathed a hole through a bolt and glued a wire into it.
SWEET ASS GUN!!!
Only thing that could make this cannon better is some clear stainless steel (to bad it doesnt exist). Im going to have to second Dracs "sexy" dub of your cannon. Everything is perfect! Speechless...
Only thing that could make this cannon better is some clear stainless steel (to bad it doesnt exist). Im going to have to second Dracs "sexy" dub of your cannon. Everything is perfect! Speechless...
I used a complete igniter set from a weber gasgrill.drac wrote:Oh my, I forgot to say GREAT F***ING JOB!!!
I gotta admit, that thing looks sexy. My metal combustion pales in comparison to yours. This would put mine to shame.
What do you use as an electrode? I'm thinking along the lines of a sparkplug. For my combustion, I lathed a hole through a bolt and glued a wire into it.
- Attachments
-

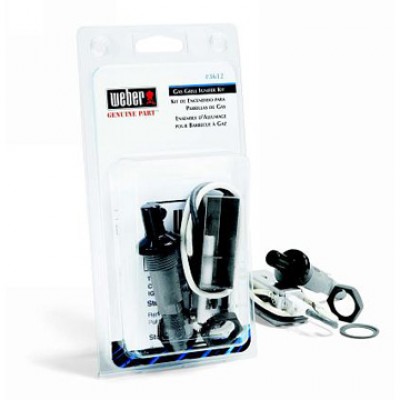

- igniter kit form weber price 25 us dollars
