ALMOST From Scrap Combustion
Posted: Tue Jan 30, 2007 6:21 am
ALMOST
From Scrap Combustion
My intent here was to make a combustion spud gun entirely from scrap. I ALMOST did it, but I couldn't find a very safe alternative for a barrel.
The chamber was mad from a JIF peanut butter jar and a 2-liter bottle. The 2 liter was heat shrunk over the jar and then a 3x2" reducing coupling, which was attached to a 2" threaded breech loading assembly and a 1-1/2" SCH-40 barrel. Then, the chamber was wrapped in fiberglass resin and mat, and then electrical tape, which I can't get off now.
A chamber fan is set-up and it has lantern igniter ignition. Here are a few pictures:
That's it. Just my own little version of insanity.
From Scrap Combustion
- full.jpg (34.78 KiB) Viewed 1639 times
The chamber was mad from a JIF peanut butter jar and a 2-liter bottle. The 2 liter was heat shrunk over the jar and then a 3x2" reducing coupling, which was attached to a 2" threaded breech loading assembly and a 1-1/2" SCH-40 barrel. Then, the chamber was wrapped in fiberglass resin and mat, and then electrical tape, which I can't get off now.
A chamber fan is set-up and it has lantern igniter ignition. Here are a few pictures:
- The chamber during construction
- beginnings.jpg (27.84 KiB) Viewed 1283 times

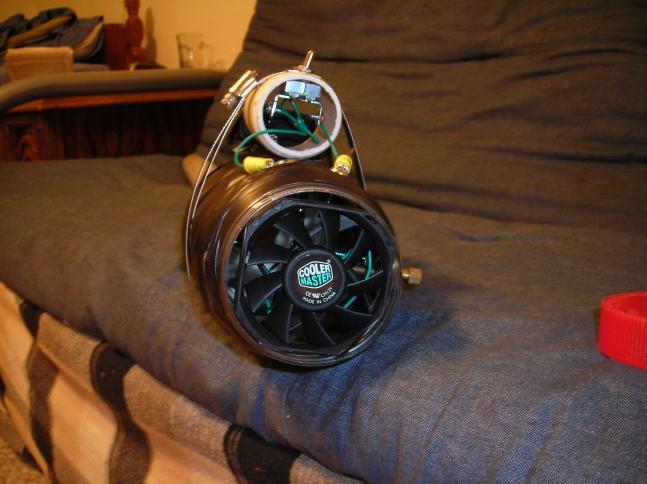

- The chamber fan
- The chamber
- chamber.jpg (22.36 KiB) Viewed 1639 times
- The breech loading
- breech.jpg (23.01 KiB) Viewed 1639 times
- JIF
- JIF.jpg (37.02 KiB) Viewed 1639 times
