Mon Aug 19, 2019 1:25 pm

hectmarr wrote:Actually, self-ignition is not what I pursue.
To be honest I think it will be hard to avoid, if we can use a fire piston to ignite something manually, what is a combustion driven piston going to do...
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Mon Aug 19, 2019 4:52 pm

jackssmirkingrevenge wrote:
hectmarr wrote:Actually, self-ignition is not what I pursue.
To be honest I think it will be hard to avoid, if we can use a fire piston to ignite something manually, what is a combustion driven piston going to do...
I agree with you Jack.
What I try is not to have to redo the entire chamber and pistons, again, if the autoignition does not occur, especially in the first tests at low pressure. I mean that it will be impossible to add the rod with the ignition contacts, without having to redo the piston and the cover of the side of the chamber "A", which needs a pair of o'rings. The strategy is: Better to have the ignition installed, than not to have it and need it!
I think this phenomenon is going to happen when I compress at about 6 or 7X, or more, but at 1X or 2X, I don't think so. It is difficult to calculate this aspect, at least for me, so it seems reasonable to have both options at hand. If the design thrives, it will be a very important simplification to dispense with the stem, extra contacts and the lid with the o'rings.
I believe that if auto ignition occurs at low compression levels, I can simply turn off the ignition, since it does not interfere at all with the operation of the double hybrid. :)
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Aug 20, 2019 7:29 am

hectmarr wrote:The strategy is: Better to have the ignition installed, than not to have it and need it!
A wise decision :) looking forward to your results!
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Thu Aug 22, 2019 12:36 pm

It is a thought of mine only, all this. In the future I will try. At the moment I am building the autonomous hybrid V, the "HA-V", trying to work on the power aspect. Thanks to all who contributed ideas and information for this topic. :)
User avatar
mrfoo
Specialist 2
Specialist 2
Afghanistan
Posts: 273
Joined: Wed Apr 29, 2015 11:05 am
Has thanked: 80 times
Been thanked: 89 times

Thu Aug 22, 2019 2:17 pm

It's off topic, but there's another thing that springs to mind as being similar in principle; the free piston engine.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Aug 22, 2019 4:39 pm

mrfoo wrote:It's off topic, but there's another thing that springs to mind as being similar in principle; the free piston engine.
Today I learned, interesting!
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Thu Aug 22, 2019 6:40 pm

mrfoo wrote:It's off topic, but there's another thing that springs to mind as being similar in principle; the free piston engine.
Great engine, I didn't know, and it must surely be a pretty old engine. Very good contribution, bring it here, for us.
User avatar
mrfoo
Specialist 2
Specialist 2
Afghanistan
Posts: 273
Joined: Wed Apr 29, 2015 11:05 am
Has thanked: 80 times
Been thanked: 89 times

Fri Aug 23, 2019 1:30 am

The idea's been around for over a hundred years, I done made a thread with plans for what's probably the best known "hobbyist" example here : http://www.spudfiles.com/offtopic-relat ... 27010.html
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Fri Aug 23, 2019 9:17 am

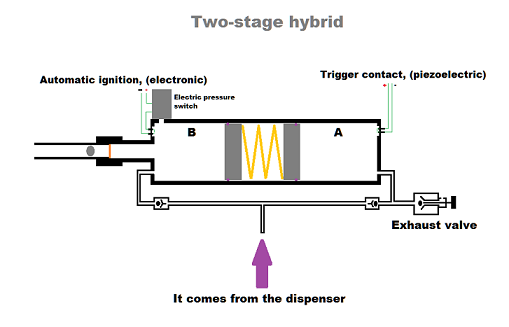

One option, to simplify the construction, is to use an adjustable, pressure-operated electric switch. It is simply screwed into chamber "B", and regulated to close the contact at the necessary pressure.
It's something like this, which supports up to 20,000 psi. It could be self built.
https://www.ruelco.com/es/products/inte ... delo-4e02/
Attachments
Híbrido dos etapas, con interruptor por presión.png
Híbrido dos etapas, con interruptor por presión.png (31.47 KiB) Viewed 7236 times
User avatar
mrfoo
Specialist 2
Specialist 2
Afghanistan
Posts: 273
Joined: Wed Apr 29, 2015 11:05 am
Has thanked: 80 times
Been thanked: 89 times

Fri Aug 23, 2019 9:49 am

Not sure how well a pressure switch will handle the kind of rapid pressure spikes you're going to hit it with. It's worth a try, though - it not only reduces the mechanical complexity, it's also going to reduce mass, and thus inertia, and remove a potential leak / rupture point.
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Fri Aug 23, 2019 10:32 am

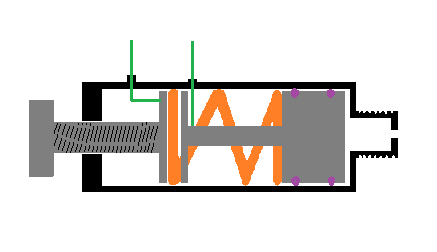

I have thought about this basically. It must be tough, and surely, it would have enough regulation work. :roll:
Attachments
Swich eléctrico activado por presión.png
Swich eléctrico activado por presión.png (2.69 KiB) Viewed 7221 times
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Fri Aug 23, 2019 12:36 pm

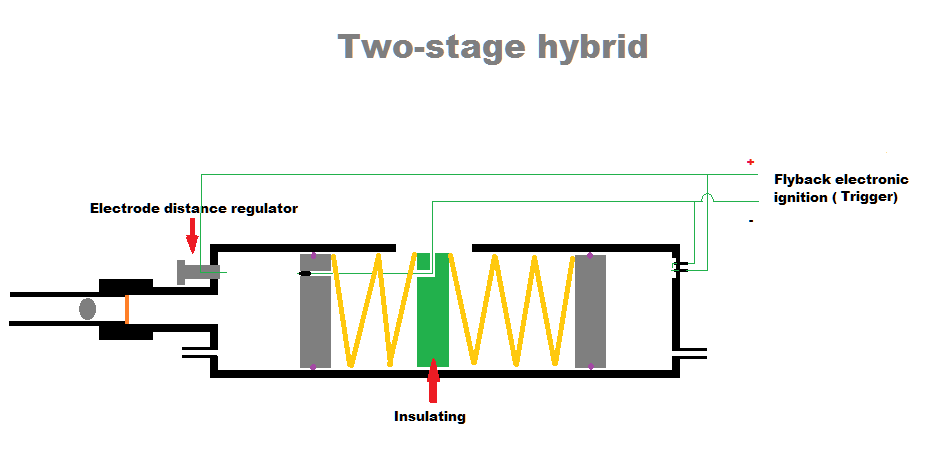

A simpler solution, and thinking outside the box, is to use an electronic ignition type fly back. When the trigger is pressed, the ignitions of the two cameras are energized at the same time. As the distance is a lot, there is no spark between the electrodes of the "B" chamber. When it gets close enough, (this distance is what you have to regulate), the spark jumps. In the "A" camera contacts, the spark jumps immediately when the trigger is fired to fire.
The "insulating separator, keeps away from the spring, the conductor that ignites the combustion chamber" B ", and the tube has a groove, which is never exceeded by the pistons, where the conductor goes outside. This works equally, to maintain the atmospheric pressure between the two pistons while they move. I mean to avoid depression and compression by varying the volume between them.
Attachments
Híbrido dos etapas, encendido por distancia.png
Híbrido dos etapas, encendido por distancia.png (12.66 KiB) Viewed 7206 times
Last edited by hectmarr on Sat Aug 24, 2019 2:25 pm, edited 1 time in total.
User avatar
Moonbogg
Staff Sergeant 3
Staff Sergeant 3
United States of America
Posts: 1733
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 158 times
Been thanked: 100 times

Fri Aug 23, 2019 6:42 pm

Whoa, this thing is complicated. Would be so awesome if it worked!
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Fri Aug 23, 2019 7:09 pm

Moonbogg wrote:Whoa, this thing is complicated. Would be so awesome if it worked!
It could work, in my opinion. The system to ignite the second combustion chamber tries to simplify the construction. A single type of ignition, without stem and internal o'rings in the chamber "A".
What seems to me that it will take away performance, is that the cameras expand when they explode and the pressure decreases. The two chambers vary in volume during combustion. I was thinking about this ... :roll:
The solution is complicated, and is to make a locking system for the recoil of the piston of the chamber "B". I imagine that without this block, the performance would be better, although not so much.

hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Sat Aug 24, 2019 12:42 pm

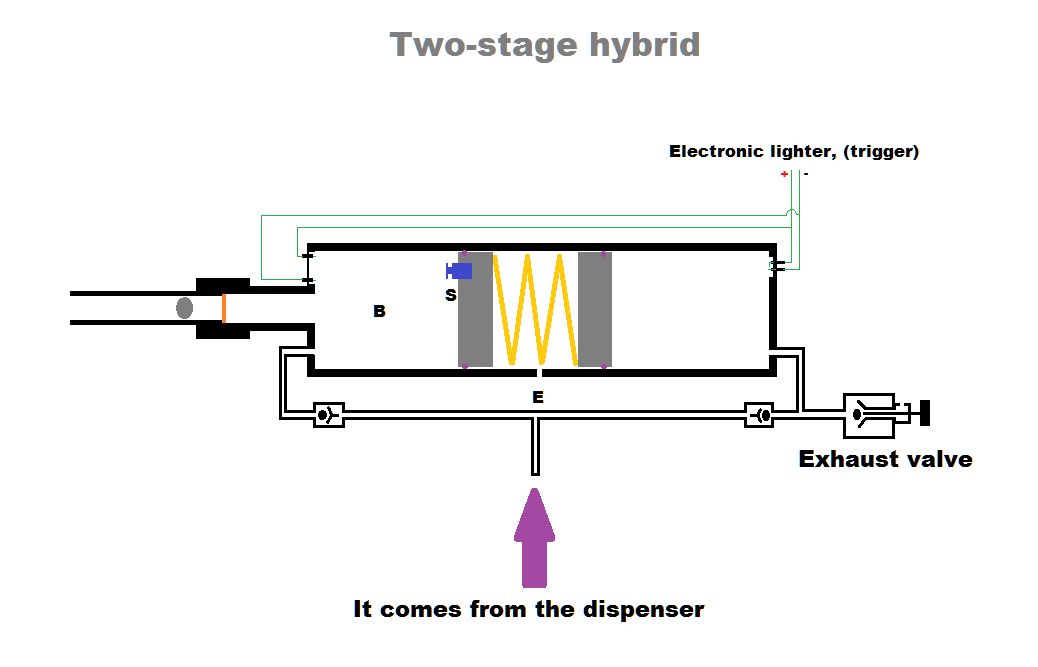

Definitive solution to simplify everything. :roll:

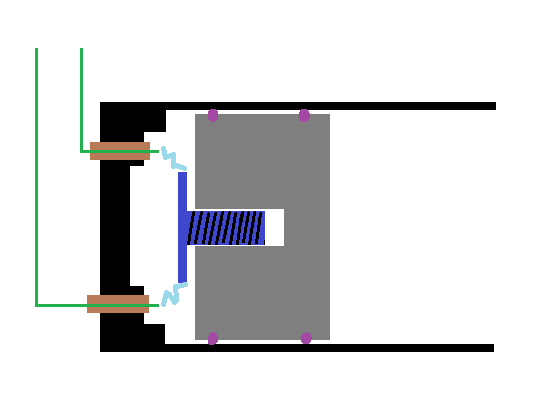

The combustion chamber piston "B" has a metal bolt "S". The contacts of the "B" chamber are far enough away so that the spark does not occur when the ignition is energized, which is only one for the two chambers. When the tamper moves towards the contacts, a bridge occurs between the two electrodes and the spark jumps, turning on the chamber "B". The metal bolt can be threaded into the piston to regulate the ignition point.
The "E" orifice keeps the volume between the two pistons at atmospheric pressure when they move.
(Open to see the animation)
Attachments
Híbrido dos etapas, encendido puente..png
Híbrido dos etapas, encendido puente..png (15.58 KiB) Viewed 7005 times
