Reaper's hybrid ALVAU

Harness the power of precision mixtures of pressurized flammable vapor. Safety first! These are advanced potato guns - not for the beginner.
reaper613
Private 4
Private 4
Posts: 75
Joined: Mon Feb 27, 2006 12:42 am

Thu Oct 12, 2006 11:17 am

somtimes the potato will be pushed out of the barrel but its not really a proplem b4 around 20psi, even then it is rare if i have a good potato.
and although the video dosent show what this gun is capable of consider that when the nilon slug hit the sign, it hit it not on its point but sideways and still blew through just look at the shape of the hole
User avatar
CpTn_lAw
Corporal 5
Corporal 5
Posts: 987
Joined: Sun Sep 11, 2005 9:10 am
Location: France

Thu Oct 12, 2006 1:20 pm

I am just amazed....this is by far the sweetest cannon, and i'm everydays on spudfiles, that i have seen in a long time. Reaper, you made this one really great...respect, and admiration! :o :o
User avatar
Extrusion
Specialist
Specialist
Posts: 147
Joined: Fri Sep 29, 2006 12:48 pm

Thu Oct 12, 2006 1:20 pm

Wow thats is crazy powerful holy crap man that is one awsome gun and sorry if i missed it somewhere but why do you choose the not use burst disks?
"No living person is a virgin because life screws us all." - Extrusion
User avatar
Velocity
Sergeant
Sergeant
Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm

Thu Oct 12, 2006 6:02 pm

Awesome hybrid dude! I like the SCH 80 PVC ones, but I just don't feel that they are safe. When someone welds together a metal hybrid as you did (these are very rare), it is obviously much safer. You must feel pretty safe, considering you hand held it :lol: , not remote fired.

One suggestion: Increse the barrel size! You say your chamber is 3" by 24", right? This is about 54 pi cubic inches. The barrel is 2" by 48", giving it a volume of 48 pi cubic inches. This gives you a ratio of 1.125:1 C:B. Because hybrids create such massive pressures, you can have a very low ratio (0.3:1) and get much greater power. If you double the barrel length (actually, if you need to go out and buy a barrel, just use the whole 10' stick of 2" copper). The increase in power will be ENORMOUS! Noise will be down as well. Problem is, portability will suck, and I am not sure how it will affect the balance when it is on the stand.

Anyway, awesome job dude :D
User avatar
ProfessorAmadeus
Sergeant
Sergeant
Posts: 1046
Joined: Fri Apr 28, 2006 5:39 pm
Location: texas

Thu Oct 12, 2006 7:10 pm

Copper is SOO expensive though. It cost like 22 dollars at home depot for 3/4 in by 10 feet.
Insomniac wrote:Hey why am I a goose???? Why not somthing a little more awe inspireing, like an eagle or something? LOL
SOO CUTE!! OMG!! I COULD JUST LICK YOU!!
reaper613
Private 4
Private 4
Posts: 75
Joined: Mon Feb 27, 2006 12:42 am

Thu Oct 12, 2006 8:40 pm

im happy with the barrel length, but i also have another 5ft piece of copper pipe and a coupling so if i wanted i could double the length. what i am getting next is a 2"redbottle muffler (hopfully somone knows what that is) to use as a silencer. its only $30 and should make the gun quieter for those nightime firings. i already had a cop drive up to my neighbors house and turn around, if he had come another 50ft he would have seen my friends and i with the gun and that would have been bad.
squeaks
Specialist 3
Specialist 3
Posts: 326
Joined: Sun Oct 01, 2006 5:45 pm
Location: Enoch, UT(next to Cedar City)

Thu Oct 12, 2006 8:47 pm

I like your hybrid man. I've been trying to find a good propane meter design, but I've failed miserably, could you refer me to one?
User avatar
Extrusion
Specialist
Specialist
Posts: 147
Joined: Fri Sep 29, 2006 12:48 pm

Thu Oct 12, 2006 9:04 pm

Propane meters arent that hard just 2 ball valves wich the little ones are very cheap around here youll need a pressure gauge and torch head for the propane then hook um up like this...

Anyway i think you should lengthen the barrel there will be a big increase in performance lol ever thought of trying to break the sound barrier with this totally awsome hybrid?
Attachments
Turn on torch and turn the first ball valve  when the guage reaches desired PSI turn off propane and close the first ball valve now open the second valve untill the guard reaches 0 psi then close that valve and fire lol<br /><br />Experiment with different psi's for the guage.
Turn on torch and turn the first ball valve when the guage reaches desired PSI turn off propane and close the first ball valve now open the second valve untill the guard reaches 0 psi then close that valve and fire lol

Experiment with different psi's for the guage.
cheap propane meter.JPG (7.34 KiB) Viewed 3837 times
"No living person is a virgin because life screws us all." - Extrusion
User avatar
Velocity
Sergeant
Sergeant
Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm

Thu Oct 12, 2006 9:36 pm

I personally would not simply weld on a barrel extension. Especially on high powered guns, there is a very good chance that the projectile will "catch" on the barrel extension, and blow it off.

You could probably just get a 10' 2" PVC SCH 40 barrel. Sure it wouldn't look as cool, but it would function alright...
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Thu Oct 12, 2006 10:03 pm

ProfessorAmadeus wrote:Copper is SOO expensive though. It cost like 22 dollars at home depot for 3/4 in by 10 feet.
i pay $22NZD($13US) for 1metre(3') of 1" copper in New Zealand :evil:
reaper613
Private 4
Private 4
Posts: 75
Joined: Mon Feb 27, 2006 12:42 am

Fri Oct 13, 2006 1:08 am

pvc barrel would blow out after the threads get weak from the heat, and after 10 spuds in a row my gun gets pretty warm
reaper613
Private 4
Private 4
Posts: 75
Joined: Mon Feb 27, 2006 12:42 am

Sun Oct 29, 2006 10:24 pm

here are some pics of the nylon bullets that i use
Attachments
here are the older ones
here are the older ones

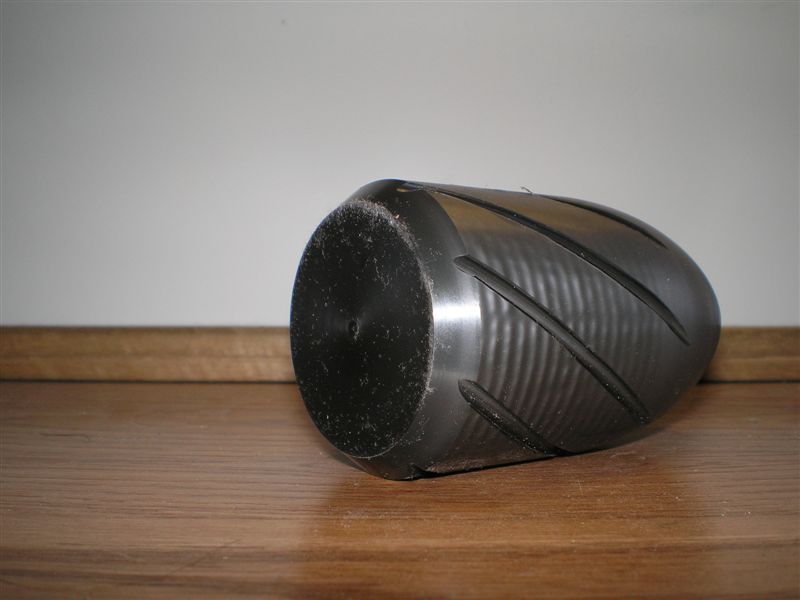

here are the new ones, they go a lot farther due to the rifling and tapered edges at the back
here are the new ones, they go a lot farther due to the rifling and tapered edges at the back
squeaks
Specialist 3
Specialist 3
Posts: 326
Joined: Sun Oct 01, 2006 5:45 pm
Location: Enoch, UT(next to Cedar City)

Sun Oct 29, 2006 10:30 pm

sweet, how did you make and rifle those?
reaper613
Private 4
Private 4
Posts: 75
Joined: Mon Feb 27, 2006 12:42 am

Sun Oct 29, 2006 10:40 pm

my cousin made them on a cnc lathe
squeaks
Specialist 3
Specialist 3
Posts: 326
Joined: Sun Oct 01, 2006 5:45 pm
Location: Enoch, UT(next to Cedar City)

Wed Nov 01, 2006 10:16 pm

You lost me at the cnc part. What is a cnc lathe?
