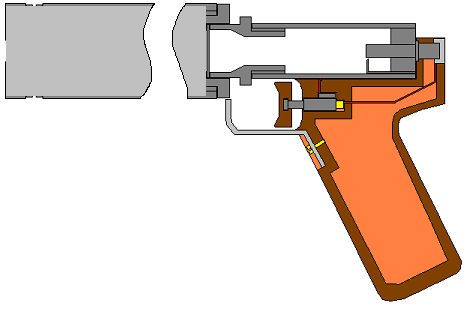

The basic idea is to have a "universal" pistol grip and ignitor setup that you can attach to the chamber via the schrader thread, with the ignitor accessible because piezos tend to wear out eventially.
The basic idea is to have a "universal" pistol grip and ignitor setup that you can attach to the chamber via the schrader thread, with the ignitor accessible because piezos tend to wear out eventially.
- Attachments
-
- gripidea.PNG (17.15 KiB) Viewed 5893 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
Hmm... interesting. I like the idea of being able to swap out different launcher designs... I can't wait to get home and back to building again.
