Thermobaric Mass Accelerator Version 2.0
AKA Gun Freak's favourite launcher.
Recently, I decided to rebuild the TBMA-230, which had been sitting in storage for nearly a year. The primary objectives were to compact the launcher for transport purposes, improve the fueling system, and solve the piston and chamber vent valve failure issues. All of these areas have been addressed in V2.0.
Specifications
Launcher Configuration:
Over/Under
Chamber:
Galvanized steel/malleable iron construction, 2.067" inside diameter, ~22" length, ~75in<sup>3</sup> volume
Barrel:
Galvanized steel EMT conduit, 1.61" inside diameter, 48" length, ~100in<sup>3</sup> volume
Valve:
1.61" porting piston valve with o-ring sealed steel piston and spool valve venting system
Loading:
2" Aluminum cam-lock fittings
Fueling/Filling Setup:
5/3 lever action directional control valve, volumetric meter, 3000PSI rated steel meter isolation ball valve, optional 3/2 DCV operated modular oxygen/air filling setup.
Fuel:
Onboard propylene cylinder
Ignition:
12kV HV power supply with ignition safety switch and LED indicator, 1/8" NPT spark plug
Venting:
Pressurized air exhausting system
Estimated Performance:
3200ft-lbs energy, 1100FPS for a 100g round @ 7X air/propylene
Pictures

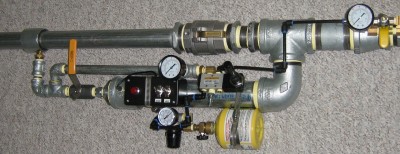

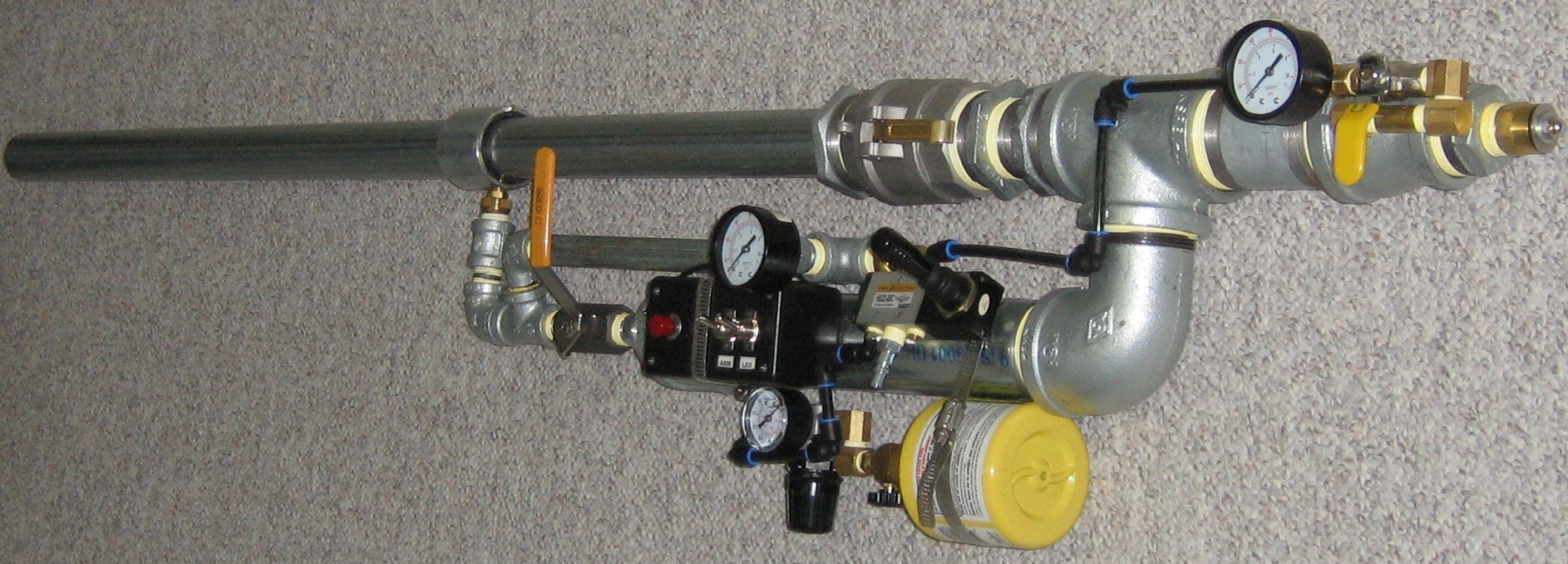

Launcher overview:

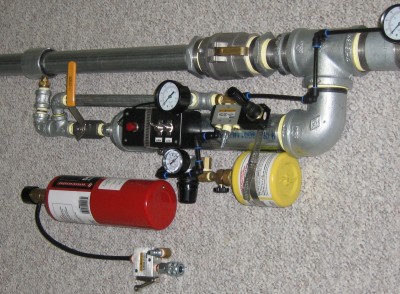

Launcher w/accessories:

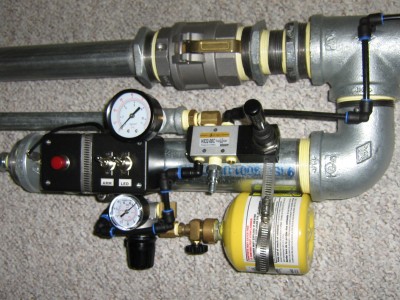

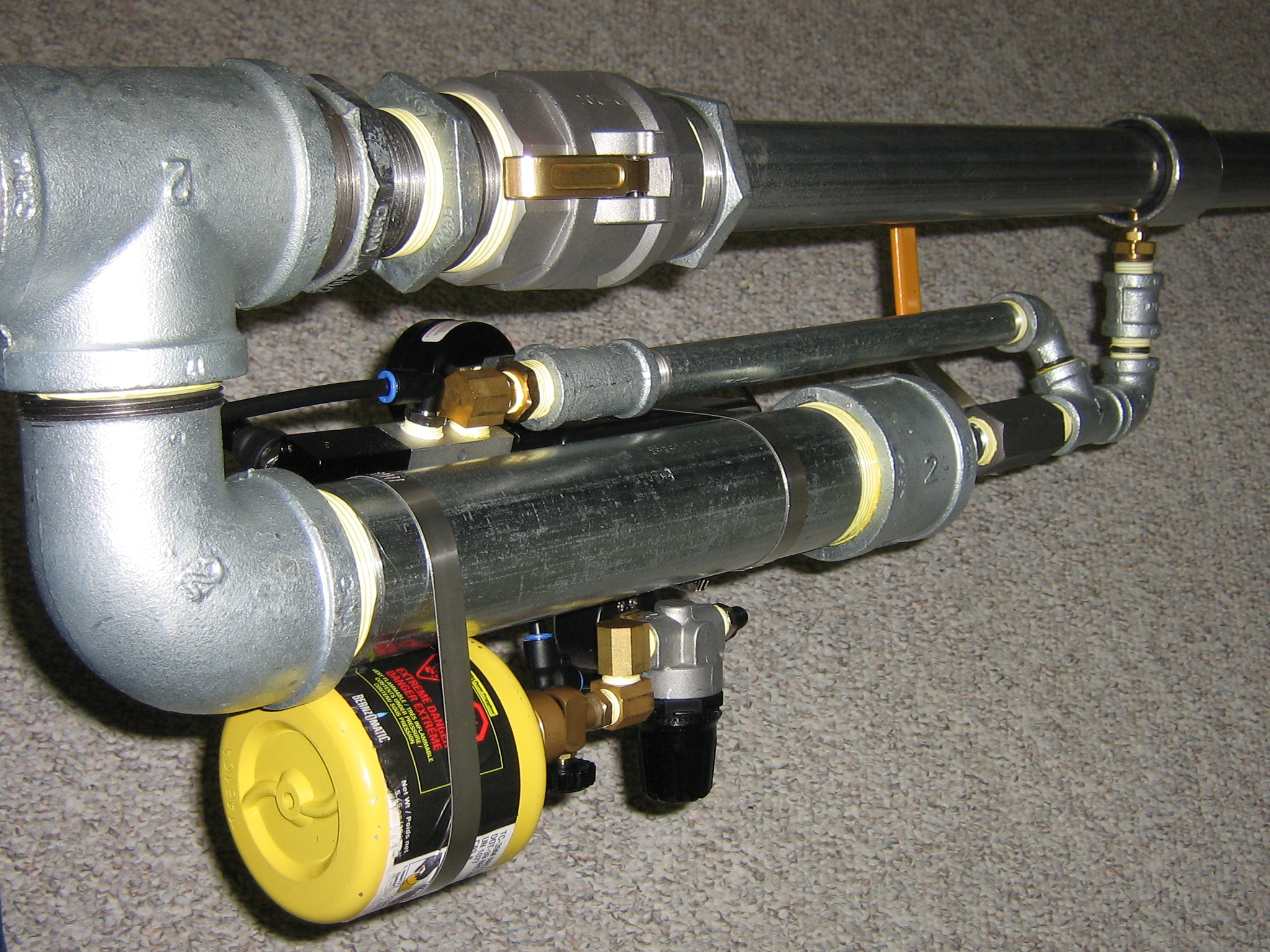

Chamber overview:

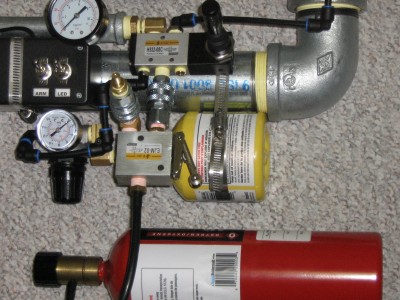

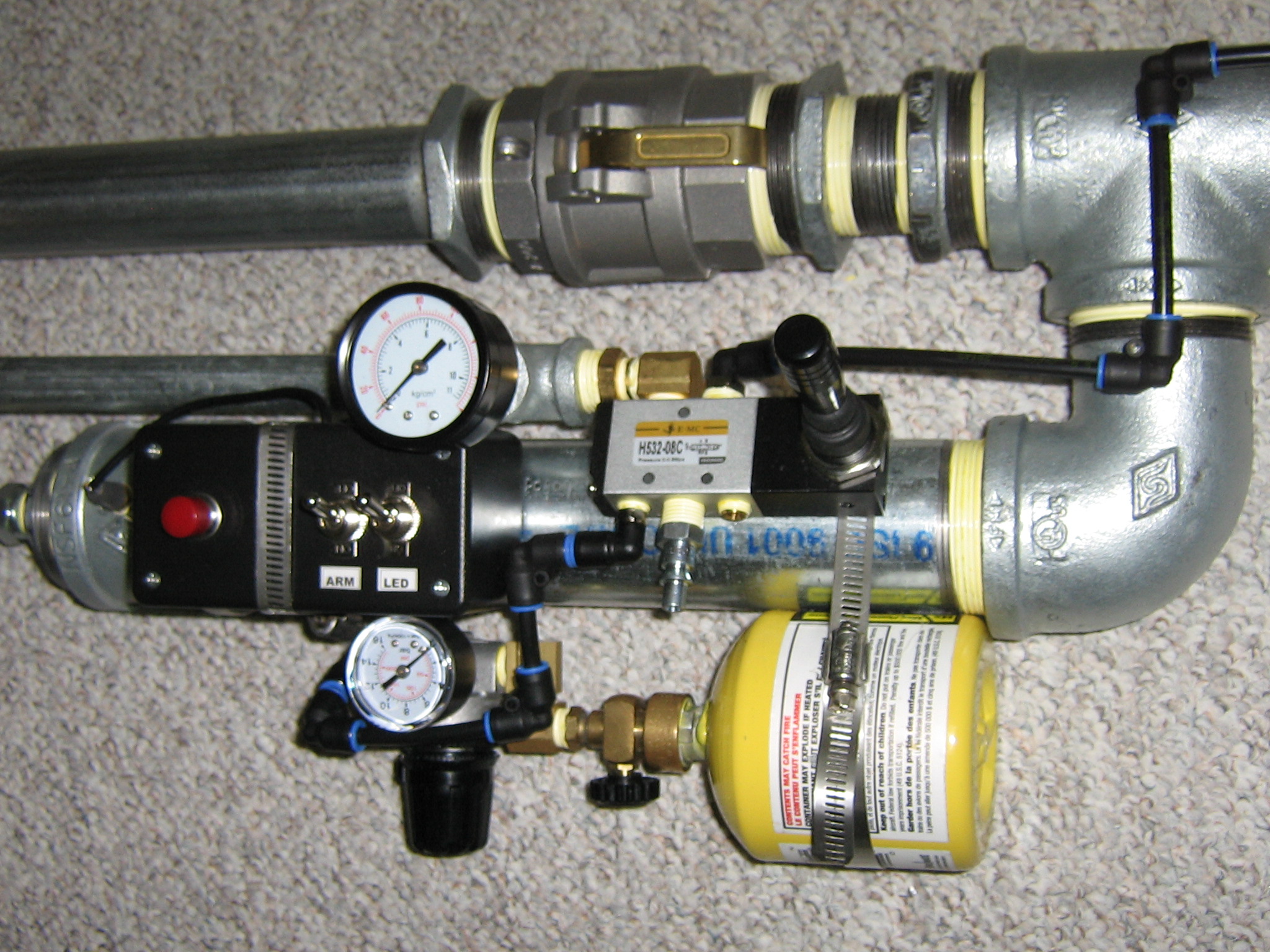

Fueling and filling operations are managed by a lever action 5 way 3 position directional control valve (5/3 DCV):

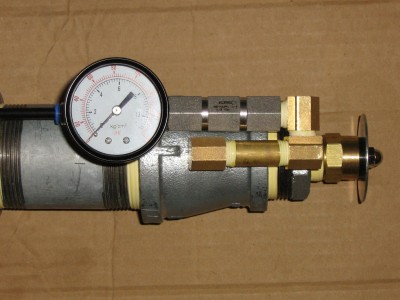

Pilot setup:

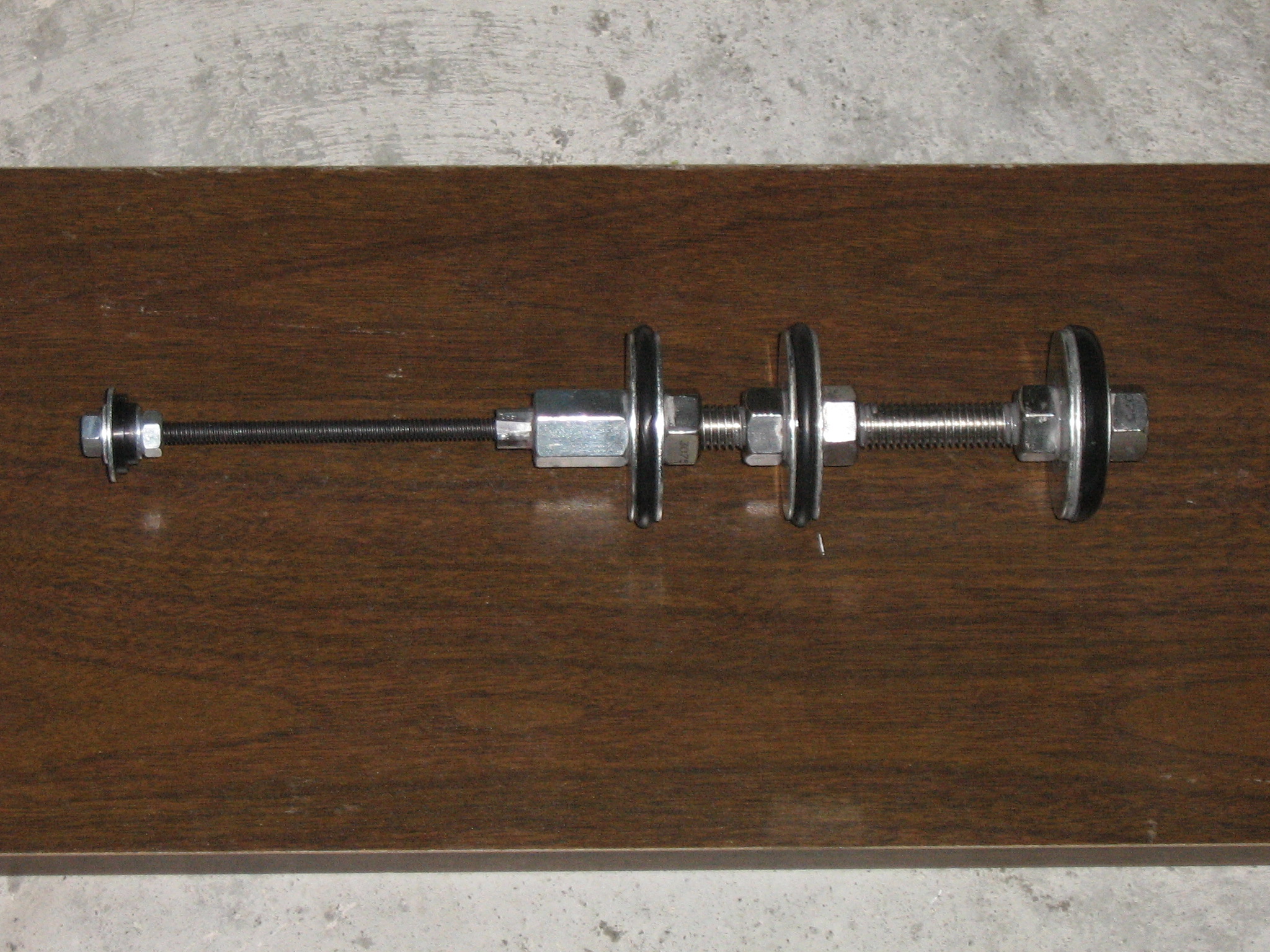

The piston now uses 1/2" UNC 304 stainless steel threaded rod, which improves corrosion and bending resistance. Travel distance is ~1.5", with a calculated opening time of ~6ms at 5X.
Modular oxygen supply:

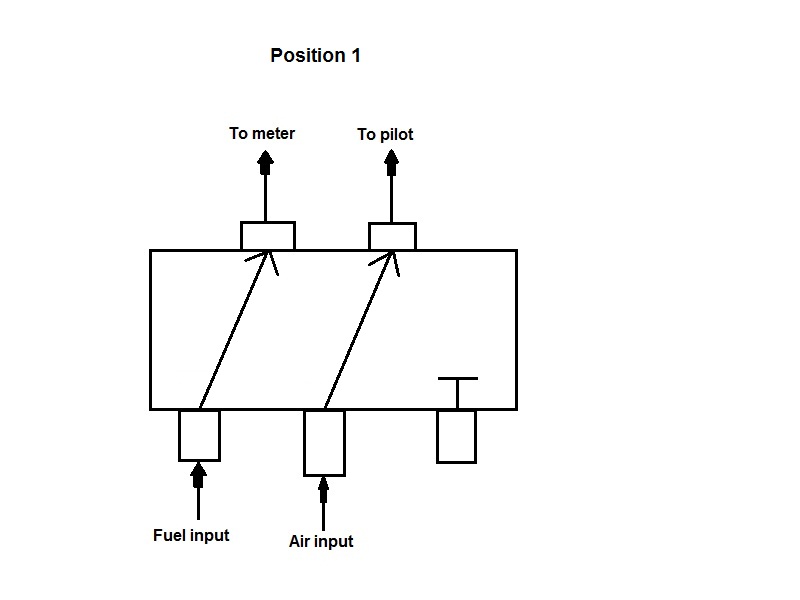

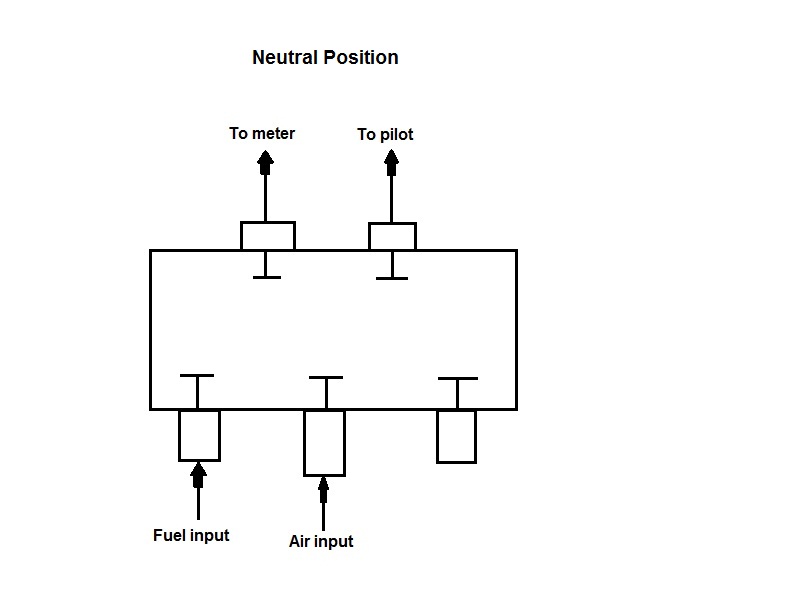

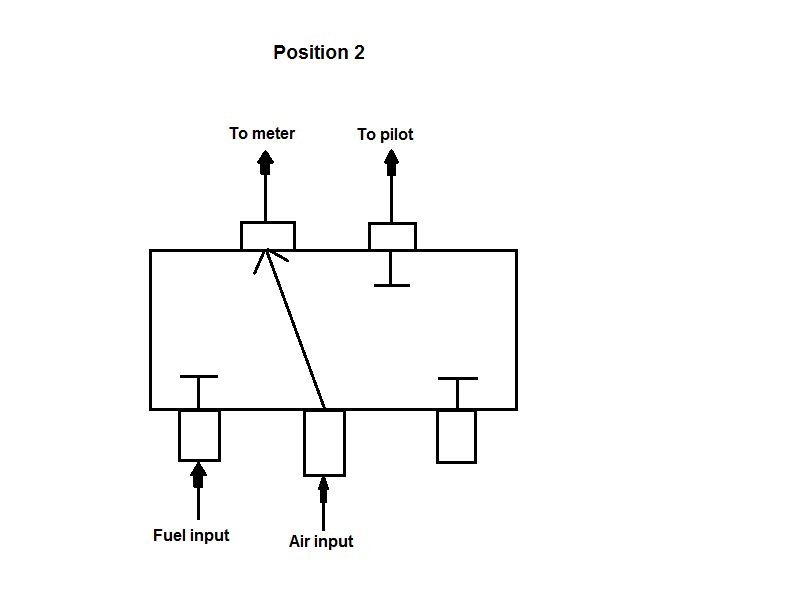

Operation of the 5/3 DCV:
Edit: Added thumbnail image.
Edit 2: Updated with new pictures.
Edit 3: 8 years later, finally restored the pictures
AKA Gun Freak's favourite launcher.
Recently, I decided to rebuild the TBMA-230, which had been sitting in storage for nearly a year. The primary objectives were to compact the launcher for transport purposes, improve the fueling system, and solve the piston and chamber vent valve failure issues. All of these areas have been addressed in V2.0.
Specifications
Launcher Configuration:
Over/Under
Chamber:
Galvanized steel/malleable iron construction, 2.067" inside diameter, ~22" length, ~75in<sup>3</sup> volume
Barrel:
Galvanized steel EMT conduit, 1.61" inside diameter, 48" length, ~100in<sup>3</sup> volume
Valve:
1.61" porting piston valve with o-ring sealed steel piston and spool valve venting system
Loading:
2" Aluminum cam-lock fittings
Fueling/Filling Setup:
5/3 lever action directional control valve, volumetric meter, 3000PSI rated steel meter isolation ball valve, optional 3/2 DCV operated modular oxygen/air filling setup.
Fuel:
Onboard propylene cylinder
Ignition:
12kV HV power supply with ignition safety switch and LED indicator, 1/8" NPT spark plug
Venting:
Pressurized air exhausting system
Estimated Performance:
3200ft-lbs energy, 1100FPS for a 100g round @ 7X air/propylene
Pictures
Launcher overview:
Launcher w/accessories:
Chamber overview:
Fueling and filling operations are managed by a lever action 5 way 3 position directional control valve (5/3 DCV):
Pilot setup:
The piston now uses 1/2" UNC 304 stainless steel threaded rod, which improves corrosion and bending resistance. Travel distance is ~1.5", with a calculated opening time of ~6ms at 5X.
Modular oxygen supply:
Operation of the 5/3 DCV:
Edit: Added thumbnail image.
Edit 2: Updated with new pictures.
Edit 3: 8 years later, finally restored the pictures
Last edited by SpudBlaster15 on Fri Jul 10, 2020 2:06 pm, edited 7 times in total.
- mobile chernobyl
- Corporal 3
- Posts: 756
- Joined: Sun Dec 03, 2006 11:53 am
- Been thanked: 7 times
Easily one of the most aesthetically pleasing, powerful and well thought out guns made of standard plumbing parts!
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
Ohh god I almost got an errection when I saw the diagrams!!Operation of the DCV
Children are the future
unless we stop them now
unless we stop them now
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
Very nice SB. Very nice indeed. Honored to be mentioned in the second line <3Ohh god I <s>almost</s> instantly got an errection when I saw the diagrams!!
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
- Lockednloaded
- Staff Sergeant
- Posts: 1566
- Joined: Thu Sep 03, 2009 9:38 pm
- Location: Texas, USA
- Been thanked: 7 times
Its alright I guess, have you thought of converting it to a pneumatic? You'd get a much better gun and you would no longer be such a noob.
I love lamp
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
I didn't think that was very funny. This cannon is pretty kick ass and I never at all hinted at the superiority of a pneumatic version.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
I bet you dropped your pants and reached for the tissues almost immediatelyPOLAND_SPUD wrote:Ohh god I almost got an errection when I saw the diagrams!!
Very nice work as always SB, looking forward to some new foorage
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Specialist 3
- Posts: 350
- Joined: Sat Jun 19, 2010 3:44 pm
- Location: Tuscaloosa, AL
Awesome job!
I might just pirate your design for mine when I build mine after Christmas! (cash pending of course, I already have 2 pneumatic going on right now lol)
That is, if you don't mind.. haha
I might just pirate your design for mine when I build mine after Christmas! (cash pending of course, I already have 2 pneumatic going on right now lol)
That is, if you don't mind.. haha
-
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 9:31 pm, edited 2 times in total.
-
- Specialist 3
- Posts: 350
- Joined: Sat Jun 19, 2010 3:44 pm
- Location: Tuscaloosa, AL
POLAND_SPUD wrote:Ohh god I almost got an errection when I saw the diagrams!!
jackssmirkingrevenge wrote:I bet you dropped your pants and reached for the tissues almost immediately
SpudBlaster15 wrote:I'm sure once PS saw the push to connect fittings, JSR's prediction became valid.
lol, Poland "faps" to cannons............... OMG. He should make that his sig.
"I fap to cannons, ifap2cannons, ifaptocannons, 1f4p2(4nn0n5" there are multiple ways of displaying it, but they all deliver the same message. haha
evanmcorleytv wrote:I might just pirate your design for mine when I build mine after Christmas! ...That is, if you don't mind..
Thanks! I'll be sure to start as soon as I can!SpudBlaster15 wrote:I have no problem at all with people using any of my designs. Feel free to build whatever you want.
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
Piston bounce or sealing issues?SpudBlaster15 wrote:and solve the piston and chamber vent valve failure issues
You actually hip fire this thing or do you rest the elbow against your shoulder? Unless you fire lefty, looks like there's a lot of stuff in the way that would hit up against you with recoil
I've always loved the sleek pilot setup, now even more nice looking.
-
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 9:31 pm, edited 1 time in total.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
HAHAHAHA is that a reference to this threadSpudBlaster15 wrote:Mostly just to DCVs, push-to-connect fittings, air cylinders, and pics of a certain member's sister.
hectmarr wrote:You have to make many weapons, because this field is long and short life
That is great!jackssmirkingrevenge wrote:HAHAHAHA is that a reference to this threadSpudBlaster15 wrote:Mostly just to DCVs, push-to-connect fittings, air cylinders, and pics of a certain member's sister.
What is the maximum ROF of this system, without loading projectiles? I can't imagine it would take more than about 5 seconds per shot!
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name
- jrrdw
- Moderator
- Posts: 6572
- Joined: Wed Nov 16, 2005 5:11 pm
- Location: Maryland
- Has thanked: 39 times
- Been thanked: 22 times
- Contact:
HAHAHAHA is that a reference to this thread
and to a few chat conversations lol.
@Gun Freak, What mention? I thought you where allergic to hybirds?
Nice cannon Spudblaster15.
