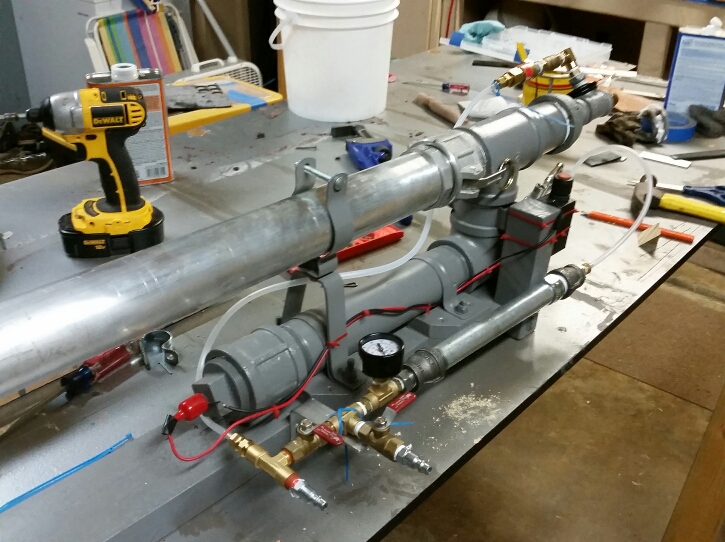

Have finally gotten it to a point where I am ready to showcase it. Steel chamber with aluminum barrel. Cam lock breech loading system. Piston made out of all thread, 2 caster wheels, o rings, and a piece of a dog toy. Shoots up to 9X mixtures at the moment. Enjoy.
Piston Valve Golf Ball Hybrid (LRCH-200)
- Attachments
-
</script></font><p><font>©2006 Google</font></p></center></body></html>
Thank you! You will really like what I have next. Unfortunately we were unable to get a clean reading. We suspect that the "whoosh" from the muzzle interfered. We will try again over Labor Day.auxiliary wrote:That looks mad powerful! What kind of velocity did you record on the chrono in your video with a golf ball?
</script></font><p><font>©2006 Google</font></p></center></body></html>
Update: Year 3 of the LRCH Project
So I haven't done much since the last round of testing I did back in December 2016. Now, I am preparing for a 3rd round of testing over labor day weekend in a few weeks. Here is a list of updates implemented.
-Piston ReDesign
-Spark Plug moved to center chamber

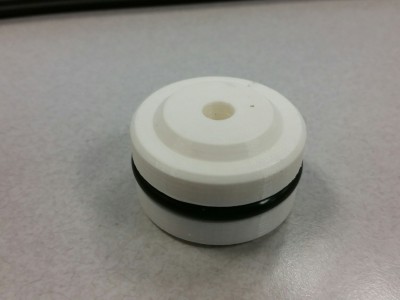

Regarding the piston, the 5/16 threaded rod started to bend at higher mixes from the force. So I am rebuilding the piston with a 3/8 Rod. I am also building a second piston with the cylinders being 3D printed. This will create a 50% lighter piston. So I am very curious to see if the material will hold up. I will post a picture of the completed pistons when they are done. For now, here is one of the cylinders.
So I haven't done much since the last round of testing I did back in December 2016. Now, I am preparing for a 3rd round of testing over labor day weekend in a few weeks. Here is a list of updates implemented.
-Piston ReDesign
-Spark Plug moved to center chamber
Regarding the piston, the 5/16 threaded rod started to bend at higher mixes from the force. So I am rebuilding the piston with a 3/8 Rod. I am also building a second piston with the cylinders being 3D printed. This will create a 50% lighter piston. So I am very curious to see if the material will hold up. I will post a picture of the completed pistons when they are done. For now, here is one of the cylinders.
- Attachments
-
</script></font><p><font>©2006 Google</font></p></center></body></html>
-
jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
What material are you printing with? I don't think ABS is quite up to the job.This will create a 50% lighter piston. So I am very curious to see if the material will hold up.
hectmarr wrote:You have to make many weapons, because this field is long and short life
I will be testing an ABS one and a PLA one.jackssmirkingrevenge wrote:What material are you printing with? I don't think ABS is quite up to the job.
Last edited by jrrdw on Sun Aug 20, 2017 6:52 am, edited 1 time in total.
Reason: Fixed quote tag.
Reason: Fixed quote tag.
</script></font><p><font>©2006 Google</font></p></center></body></html>
New video of the final round of testing. Both my castor wheel piston and 3D printed piston held up well. Was able to achieve Mach 1.2 (fps reading not in the video). I think I am calling this one closed and moving on to the next project.
https://www.youtube.com/edit?video_id=m ... rrer=watch
https://www.youtube.com/edit?video_id=m ... rrer=watch
</script></font><p><font>©2006 Google</font></p></center></body></html>
-
jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
[youtube][/youtube]
Excellent, love the gratuitous 'MURICA intro
Excellent, love the gratuitous 'MURICA intro
I concur, looking forward to what you come up with next.I think I am calling this one closed and moving on to the next project.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
Air2theBrain
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
My goodness now this is a cannon...great video well done!
-
Spudinator
- Private 4
- Posts: 80
- Joined: Sun Feb 13, 2005 4:50 pm
- Location: WA
Mmmmmm, brings me back to the good ol' glory days. Well built and good job.
"This is so fun it should be illegal... Oh wait..."
