Just for the heck of it, he should try it!he'd need a hammer about 50 times heavier.
mini hammer valve
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
I did actually, clamping lead weights to the end of the bolt and it does slow down the rate of fire but nowhere near what I wanted. At a point it just stops cycling.psycix wrote:Just for the heck of it, he should try it!
Okay. Then there are two other options to slow it down:
-A larger scale (marbles?)
-Add a sear where the hammer gets caught, and then release it again by pulling the trigger (semi-auto)
-A larger scale (marbles?)
-Add a sear where the hammer gets caught, and then release it again by pulling the trigger (semi-auto)
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Semi auto would be pointless, as you might recall I'm already the proud owner of a 30 ft/lb semi-auto FX Monsoon so it's *dakka dakka dakka* or nothing
I'm inclined to built a smaller version of the pop-off valve (maybe having it in line with the barrel so the piston movement also operates a barrel sleeve to reload ammunition) - still sticking with 3mm BBs because I've been very impressed with the sort of penetration they give when fired at high pressure.
I'm inclined to built a smaller version of the pop-off valve (maybe having it in line with the barrel so the piston movement also operates a barrel sleeve to reload ammunition) - still sticking with 3mm BBs because I've been very impressed with the sort of penetration they give when fired at high pressure.
Hmm... couple ideas/questions
1) WHy did you make the hammer housing so long?
2) How did you determine the best spring? Did you just experiment til you found that it was allowing air out the outlet?
3) How are you gonna implement a trigger?
4) Now an idea. In order to slow down the ROF... because it seems almost constant right now I cannot believe how fast it is. What you could do is enlarge the hammer spring housing tube. Step it up alot- that should allow it to slow down I think because the air will be forced to push a larger hammer back, but the disadvantage may be that the air won't be able to.
Thanks, and just an opinion I had.
1) WHy did you make the hammer housing so long?
2) How did you determine the best spring? Did you just experiment til you found that it was allowing air out the outlet?
3) How are you gonna implement a trigger?
4) Now an idea. In order to slow down the ROF... because it seems almost constant right now I cannot believe how fast it is. What you could do is enlarge the hammer spring housing tube. Step it up alot- that should allow it to slow down I think because the air will be forced to push a larger hammer back, but the disadvantage may be that the air won't be able to.
Thanks, and just an opinion I had.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
BEcause I wanted to have space to play with different springsilovetoblowthingsup wrote:1) WHy did you make the hammer housing so long?
I started off with a spring that was just long enough to get the end of the hammer to touch the valve stem, then added progressively longer springs until I got it firing reliably2) How did you determine the best spring? Did you just experiment til you found that it was allowing air out the outlet?
3) How are you gonna implement a trigger?
In this case I won't as it's not worth pursuing, but I outlined the details in the original concept were I to include a trigger.
Do you mean enlarge the hammer diameter? I think this would be counterproductive as it would increase dead space and severely reduce the power available at the breech end.4) In order to slow down the ROF... because it seems almost constant right now I cannot believe how fast it is. What you could do is enlarge the hammer spring housing tube. Step it up alot- that should allow it to slow down I think because the air will be forced to push a larger hammer back, but the disadvantage may be that the air won't be able to.
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 4 times
Jack...everything changes when you put a barrel on it and fire projectiles.
The outcoming air will be held back for longer, while the barrel is filled up.
When the projectile leaves the barrel. all air will be released and the hammer will be allowed to hit the valve once more.
That is...providing air doesn't leak past the hammer like it does now.
So finetuning the valve, without the barrel, o-ring and ammo is pointless.
The outcoming air will be held back for longer, while the barrel is filled up.
When the projectile leaves the barrel. all air will be released and the hammer will be allowed to hit the valve once more.
That is...providing air doesn't leak past the hammer like it does now.
So finetuning the valve, without the barrel, o-ring and ammo is pointless.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
-
- Corporal 3
- Posts: 734
- Joined: Mon Jun 23, 2008 3:20 pm
- Location: Texas
I think BTB may be onto something. Actually hooking it up to an existing barrel with an actual round in it might give the valve the dwell time it needs to be effective. Only one way to find out...
Completed projects:
CA1 SMSS Basic Inline
CA3 PDAB Airburst Cannon
Current Project: Bolt action rifle (25x140mm + 1in shot)
CA1 SMSS Basic Inline
CA3 PDAB Airburst Cannon
Current Project: Bolt action rifle (25x140mm + 1in shot)
-
- Corporal 3
- Posts: 784
- Joined: Sun Mar 06, 2005 3:06 am
- Location: Oklahoma, USA
- Been thanked: 1 time
I second what BTB said. Adding ammo should change the valve dynamics quite a bit. It is a bit of a PITA to have to be firing ammo any time you want to tune your valve (less so with BBs compared to golfballs), but that is one of the joys that comes with auto valves. Most auto valves that I have seen are sensitive to the outlet pressure caused by ammo being present.
<a href="http://gbcannon.com" target="_blank"><img src="http://gbcannon.com/pics/misc/pixel.png" border="0"></a>latest update - debut of the cardapult
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 4 times
I did my research on full auto you know.
This is basically an Autococker.Wich is very promising BTW.
I think this is the only way to true full auto.And the 3mm bb's are just a genius way of going about it.The main thing that put me off on my attemps, where the massive aircomsumption and the related problem of not being able of building that kind of a think portable.
No for the valve:
Tiny changes may result in mayor differences in ROF.
The O-ring could change everything.
Another issue is the travel of the ...hammer ..to the venthole.
The longer it has to travel, the lower the ROF will be, the harder it will be to strike the valve ( aircushion).
He is not finished experimenting for quite some time.
This is basically an Autococker.Wich is very promising BTW.
I think this is the only way to true full auto.And the 3mm bb's are just a genius way of going about it.The main thing that put me off on my attemps, where the massive aircomsumption and the related problem of not being able of building that kind of a think portable.
No for the valve:
Tiny changes may result in mayor differences in ROF.
The O-ring could change everything.
Another issue is the travel of the ...hammer ..to the venthole.
The longer it has to travel, the lower the ROF will be, the harder it will be to strike the valve ( aircushion).
He is not finished experimenting for quite some time.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times

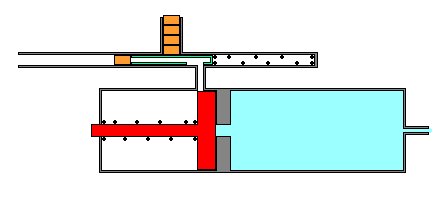

You guys make valid points but somehow I'm not convinced this is worth pursuing. I've been thinking of going back to the pop-off valve, maybe combined with a blowback bolt, something like this:
- Attachments
-
- popoffblowbackani.gif (12.33 KiB) Viewed 2432 times
When air leaks past the hammer you lose pressure.
When there is an projectile, the pressure will need to be there much longer and thus the leaks become more significant.
JSR, dont throw it in the failbox yet! It should be able to work!
When there is an projectile, the pressure will need to be there much longer and thus the leaks become more significant.
JSR, dont throw it in the failbox yet! It should be able to work!
