I don't know why he'd bother changing it. While it is slightly air intensive, it's 100% effective (speaking in terms of all the air going through the barrel) and is whaty he's been aiming for all this time.

Shall be good to see, but if you do i reckon have a nice streamlined valve/trigger like this one.


Or you could even streamline a pressure washer handle, as BTB did for his inline (did he do that on the pnuzi also?).

Or perhaps even a dedicated valve.. But I'd go for something better than a ballvalve..I believe you know why :wink:
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Apr 24, 2009 10:22 am

POLAND_SPUD wrote:there is a 3 way spool valve :wink:
Obviously... :D

That actually looks like it could work well, I'm guessing the cylinder would operate fairly quickly to give you good opening time and performance. I like the idea of a "closed system" where all you have to do is turn on the airflow. You could regulate rate of fire by adjusting flow to the piston, though that would technically give you a slower opening time.
Or perhaps even a dedicated valve... But I'd go for something better than a ballvalve...
The actual trigger won't be the ball valve handle, I was thinking of replacing it with a lever (sprung to the closed position) connected via a rod to a proper trigger. The whole thing (assuming I can get it to function reliably) will then be fitted into a bullpup body shell, in my mind it looks like something out of Ghost in the Shell:

User avatar
inonickname
First Sergeant 4
First Sergeant 4
Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am

Fri Apr 24, 2009 10:35 am

How about a steyr aug? Kind of stupid looking guns, but deadly, awesome things.. But I bet it would look great in a shell like that, would you still be considering the useless (or not) recocking bolt?
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Apr 24, 2009 10:39 am

inonickname wrote:How about a steyr aug? Kind of stupid looking guns, but deadly, awesome things.. But I bet it would look great in a shell like that, would you still be considering the useless (or not) recocking bolt?
The Steyr looks too "Star Wars" in my book, I prefer a snub-nosed layound like the P90 :) I might yet fit a blowback bolt, depends what kind of blast the smaller porting provides. We'll soon know, testing when I get home from work (though I don't have much air left in my SCUBA...)
User avatar
inonickname
First Sergeant 4
First Sergeant 4
Posts: 2606
Joined: Sun Dec 07, 2008 3:27 am

Fri Apr 24, 2009 10:46 am

Fair enough. Will you use a single, dedicated magazine or make detachable ones?
PimpAssasinG wrote:no im strong but you are a fat gay mother sucker that gets raped by black man for fun
User avatar
ALIHISGREAT
Staff Sergeant 3
Staff Sergeant 3
Posts: 1778
Joined: Sat Aug 25, 2007 6:47 pm
Location: UK

Fri Apr 24, 2009 2:11 pm


is that a FAM-90 or something :roll:

can't wait to see this completed i've always had a thing for the more 'realistic' looking cannons.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Apr 24, 2009 5:11 pm

I tried to test it but clearly the epoxy hadn't cured enough and it started to balloon, back to the airing cupboard until tomorrow afternoon...
inonickname wrote:Will you use a single, dedicated magazine or make detachable ones?
I was thinking of a fixed magazine with enough rounds to fire until the tank is empty, basically as long as the barrel
ALIHISGREAT wrote:is that a FAM-90 or something
It's a fictional assault rifle, though it does seem to be a marriage between the FAMAS and P90 as you pointed out, and the latest bullpup from Magpul Industries bears more than a passing resemblance to it...
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Fri Apr 24, 2009 5:20 pm

This is gonna be awsome...

Seems like everyone is building high end- smallbore shooters these days.
Sort of a competition already!


Rattlesnake, high pressure coax, QEV-Tnak-Pop-off, Wasp...Oh and my BrassTBolt of course :wink:

All good stuff hehehe

An ordinary singleshot will no longer do...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
Carlman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1618
Joined: Sat Nov 24, 2007 1:18 am
Location: Western Australia
Been thanked: 2 times

Fri Apr 24, 2009 5:28 pm

Brian the brain wrote:An ordinary singleshot will no longer do...
Gippeto will have something to say about that.
Aussie spudders unite!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Apr 24, 2009 5:47 pm

Brian the brain wrote:Seems like everyone is building high end- smallbore shooters these days.
Sort of a competition already!
I'm really glad I finally took the plunge and bought a paintball tank, not only does the higher pressure available give a lot more potential but it allows you to think of actual finished portable launchers instead of an experiment hooked up to a compressor.

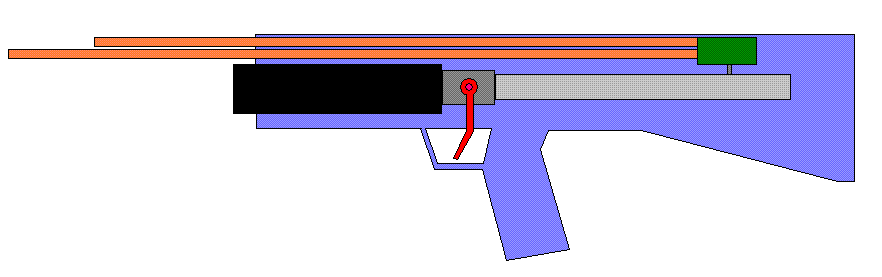

This is roughly how I envisage the final configuration would look, of course I have to confirm that the unit works first... and find time to refill the SCUBA :roll:
Attachments
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Fri Apr 24, 2009 5:54 pm

Gippeto will have something to say about that.
His is not ordinary.. :D

@JSR:
Rough picture but it should become a very interesting end product!
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Mon Apr 27, 2009 11:28 am

Finally, it lives!

[youtube][/youtube]

Didn't last very long with a strong spring

[youtube][/youtube]

Tried a weaker one and it went on for a while (both videos are from a full 200 bar/3000 psi tank fill with the reg set at around 500 psi) but the difference in "crack" could be heard. I must emphasise again how loud this thing is, the video doesn't really do it justice.

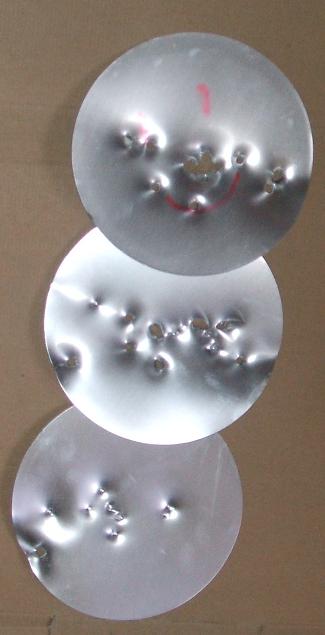

Naturally, I had to try it out on a target, here's three aluminium plates spaced box'o'truth style and shot with 0.22 pellets from a 6mm calibre 36" long barrel, firing 2 10 round bursts. The last plate wasn't penetrated, not quite up to my power expectations. Maybe I should turn it up to the reg's maximum 850 psi and use a much stronger spring, hmmm...
