Thusto's Pneumatic BB Sniper (With pics, and vid)

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Post Reply
User avatar
Thursto
Specialist 3
Specialist 3
Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills

Mon Sep 10, 2007 5:58 am

This is my Pneumatic BB Sniper, it fires various things, such as my favorite, a sharp pop rivet wrapped in tape, or split sinkers wrapped in tape, 2 BB's wrapped in tape, theres lots of things i fire. The Gun is basically a Blow gun, Attached to a 2" Chamber With End caps (all pressure rated) With tire valve popped in, PSI gauge attached, and a 90 degree brass elbow leading away towards the blow gun, and attached to the blow gun is another 90 degree elbow, both attached together using pressure rated pipe and nipples, and other bit and pieces.

The pic is fairly self explanatory, the barrel is approx 7.5mm ID, and fits nicely in the blowgun, some of the barrel is sleeved with 20mm pipe, heated up to slide over the outside of the blowgun. I Run this gun at around 90-120PSI.


The Barrel basically slides in and out of the blow gun for easy re-loading and it slides in 25mm cut off's attached to the chamber, need to glue them in place, but they are just taped for now.

Any Feedback, or constructive criticism is welcome, and also i know blowguns are not the best valves, and don't have very much flow, but still this gun has a lot of power.

Also give credit to Mr.Russ as he made his first and i just made my own version of his. :P

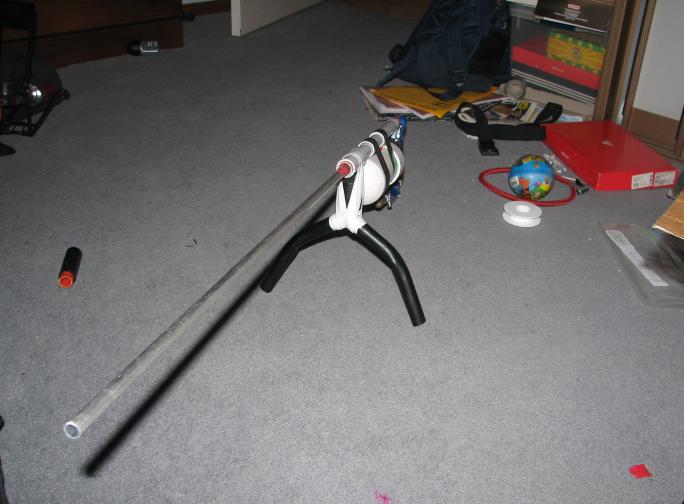

Just quickly made a bipod to for it, taped it together because I'm out of hot glue at the moment, but thought i would add these pics too. It comes of easy to, when its glued properly it can swivel, turn, tilt and can be detached quickly without have to slide it of.

Vids coming soon, one of me shooting an egg too :D

Heres a vid of me shooting an egg:
Attachments

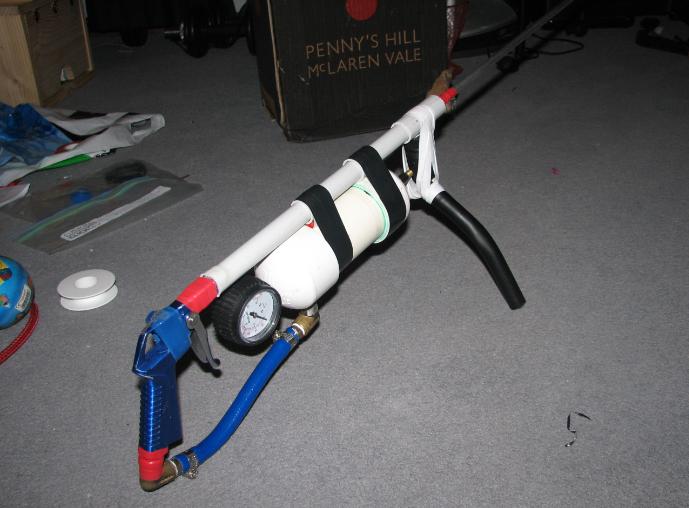

Just another shot
Just another shot

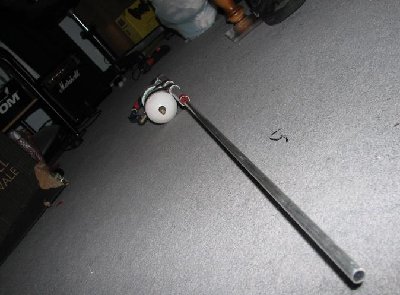

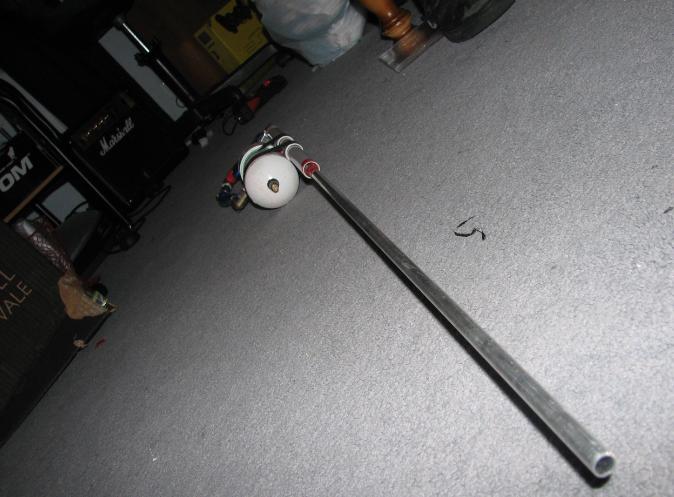

Looking Up Barrel
Looking Up Barrel

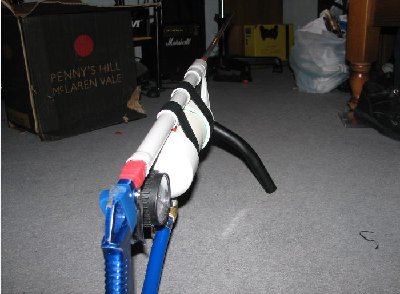

Looking Down Barrel
Looking Down Barrel
BB GUN 3.jpg (24.54 KiB) Viewed 9454 times

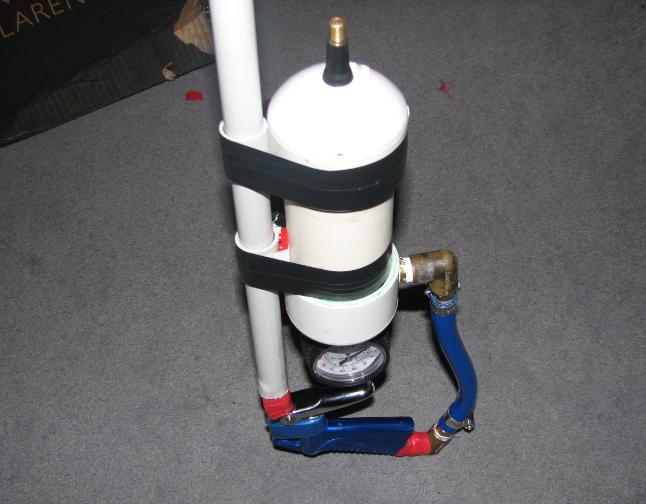

Side on Shot
Side on Shot

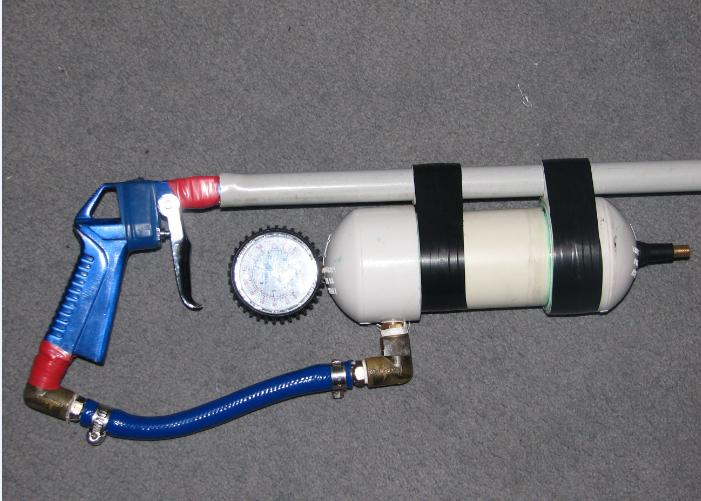

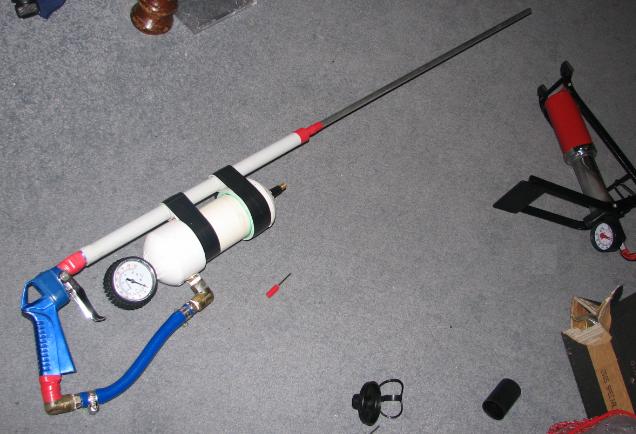

The Whole Gun
The Whole Gun
BIPOD 3.jpg
BIPOD 2.jpg
BIPOD 1.jpg
Last edited by Thursto on Wed Sep 12, 2007 7:14 am, edited 4 times in total.
Top
User avatar
Mr.Russ
Specialist 4
Specialist 4
Posts: 429
Joined: Fri Jan 26, 2007 9:07 pm

Mon Sep 10, 2007 6:02 am

hahha..

scott, scott scott.

Very nice looking. you just need to add a stock, will be comfy as a mutha f**ka

Better not tell them what your main target is haha :wink:
Music is like candy. you throw out the (w)rappers
Top
User avatar
Thursto
Specialist 3
Specialist 3
Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills

Mon Sep 10, 2007 6:20 am

Lol i better not *shifty eyes* :P ALso a question for anyone out there, how could i make a stock for this gun, and how would i attach it? i used a toy AK-47 stock on my inline and liked that very much, might try find another toy gun stock, and attach it, but how would i do that?
Thanks, `~Thursto~'
Top
User avatar
Marco321
Corporal
Corporal
Posts: 540
Joined: Tue May 15, 2007 2:56 am
Location: Sydney, Australia

Mon Sep 10, 2007 6:37 am

Nice gun. I had the exact same blowgun, before i tore it apart and made it a bit better.
Here is my modded one, was easy to make

Maybe you can make a similar one and integrate it into a stock. Except it would have to exhaust through the pvc barrel instead of into the air. It would be a bit of work but it would be very cool.


You wouldn't happen to be an Ausie?
Failure to plan is planning to fail.

The 7 P's - Proper Prior Preparation Prevents Piss Poor Performance
Top
User avatar
Mr.Russ
Specialist 4
Specialist 4
Posts: 429
Joined: Fri Jan 26, 2007 9:07 pm

Mon Sep 10, 2007 6:43 am

lol - obviously, he is an aussie. if he has the same blowgun as you.. and the same one as me :)
Music is like candy. you throw out the (w)rappers
Top
User avatar
Thursto
Specialist 3
Specialist 3
Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills

Mon Sep 10, 2007 6:50 am

Of course im an aussie :D and proud to be also! Btw nice gun Marco321 is that a pneumatic marble cannon? Andyou alos have the same Pressure gauge as me, Comes with the blowgun :P:D:) Also where do you get those scopes from? and how much?
Top
User avatar
Marco321
Corporal
Corporal
Posts: 540
Joined: Tue May 15, 2007 2:56 am
Location: Sydney, Australia

Mon Sep 10, 2007 7:02 am

Lol
AUSIE AUSIE OI OI OI

Thanks, yeah its a pneumatic marble gun, but she is in pieces now
Yeah she was a good blowgun. The scope was from ebay, around $40 including shipping, its from china, but form ebay.com.au. Its a good quality brand and a good quality scope. Chaos and Experiment u2 have the same one as me, they recommended it to me :P

EDIT: Personally i would recommend iron sights. But they don't look as cool as a scope, but they are cheaper and more practical on a spudgun.
Failure to plan is planning to fail.

The 7 P's - Proper Prior Preparation Prevents Piss Poor Performance
Top
User avatar
blind909
Corporal 4
Corporal 4
Posts: 828
Joined: Thu Aug 02, 2007 6:06 pm
Location: Las Vegas, NV
Contact:
Contact blind909

Mon Sep 10, 2007 9:18 am

they dont just sell those blowguns in australia, they also sell them here in las vegas for $14.95, with a shradder valve filler thinggy ob the front.
<a href="http://www.danasoft.com"><img src="http://www.danasoft.com/citysign.jpg" border="0"></a><div>
THIS STATES WHERE YOU LIVE, NOT ME, IT SAYS WHERE YOU LIVE BASED ON YOUR IP ADRESS.
Top
User avatar
Spuddin
Specialist 2
Specialist 2
Posts: 262
Joined: Wed May 16, 2007 1:28 pm
Location: Oklahoma
Contact:
Contact Spuddin

Donating Members

Mon Sep 10, 2007 4:49 pm

nice design, clean and tight. what is the air chamber size 3"? and do u have to pump it up after every shot?
btw i always like the guns & vids you and Mr Russ post.
_______________________
http://www.freewebs.com/spuddin
Top
User avatar
Mr.Russ
Specialist 4
Specialist 4
Posts: 429
Joined: Fri Jan 26, 2007 9:07 pm

Tue Sep 11, 2007 1:03 am

haha the vids are okay lol.

His chamber size is 2", just like mine.


You have to pump up after every shot, you can get about 2 powerful shots out of a tank. if you do one powerful shot you only have to pump up a few times instead of filling the whole chamber.
Music is like candy. you throw out the (w)rappers
Top
User avatar
experament-u2
Specialist 4
Specialist 4
Posts: 469
Joined: Tue Dec 26, 2006 11:18 pm

Tue Sep 11, 2007 1:05 am

the scopes off ebay me marco and casey all have one :lol:
Top
User avatar
Thursto
Specialist 3
Specialist 3
Posts: 389
Joined: Fri Mar 02, 2007 5:11 am
Location: Australia, SA, Adeliade, Para Hills

Tue Sep 11, 2007 4:35 am

experament-u2 wrote:the scopes off ebay me marco and casey all have one :lol:
Lol yeah marco told me, talking to a bloke at school and his uncle owns a gun shop, so he said he'll se if he can get me a cheap scope, but i doubt he'll be able to.
Top
User avatar
homo bernardus
Private
Private
Posts: 10
Joined: Thu May 10, 2007 5:28 am

Wed Sep 12, 2007 3:07 am

yer thats pretty kool but a stock would make it look wikkid 8)
Top
User avatar
Redcoat
Corporal 4
Corporal 4
Posts: 835
Joined: Tue Feb 13, 2007 1:07 am
Location: Sydney ,Australia
Contact:
Contact Redcoat

Wed Sep 12, 2007 4:19 am

Marco321 wrote:Lol
AUSIE AUSIE OI OI OI
You forgot one of the "AUSSIE"s. :wink:

BTW, nice gun man, Damage pics would be awesome.

Happy SPuddin'
Poo.
Top
User avatar
Marco321
Corporal
Corporal
Posts: 540
Joined: Tue May 15, 2007 2:56 am
Location: Sydney, Australia

Wed Sep 12, 2007 4:48 am

Redcoat wrote:
Marco321 wrote:Lol
AUSIE AUSIE OI OI OI
You forgot one of the "AUSSIE"s. :wink:

BTW, nice gun man, Damage pics would be awesome.

Happy SPuddin'
Haha yeah, lol...
Thanks, but she is converted from a marble gun to a 8mm gun, and i killed the sprinkler and stole the blowgun for my new coaxial. i have to buy a new valve and blowgun.

AUSSIE AUSSIE AUSIE OI OI OI :D
Failure to plan is planning to fail.

The 7 P's - Proper Prior Preparation Prevents Piss Poor Performance
