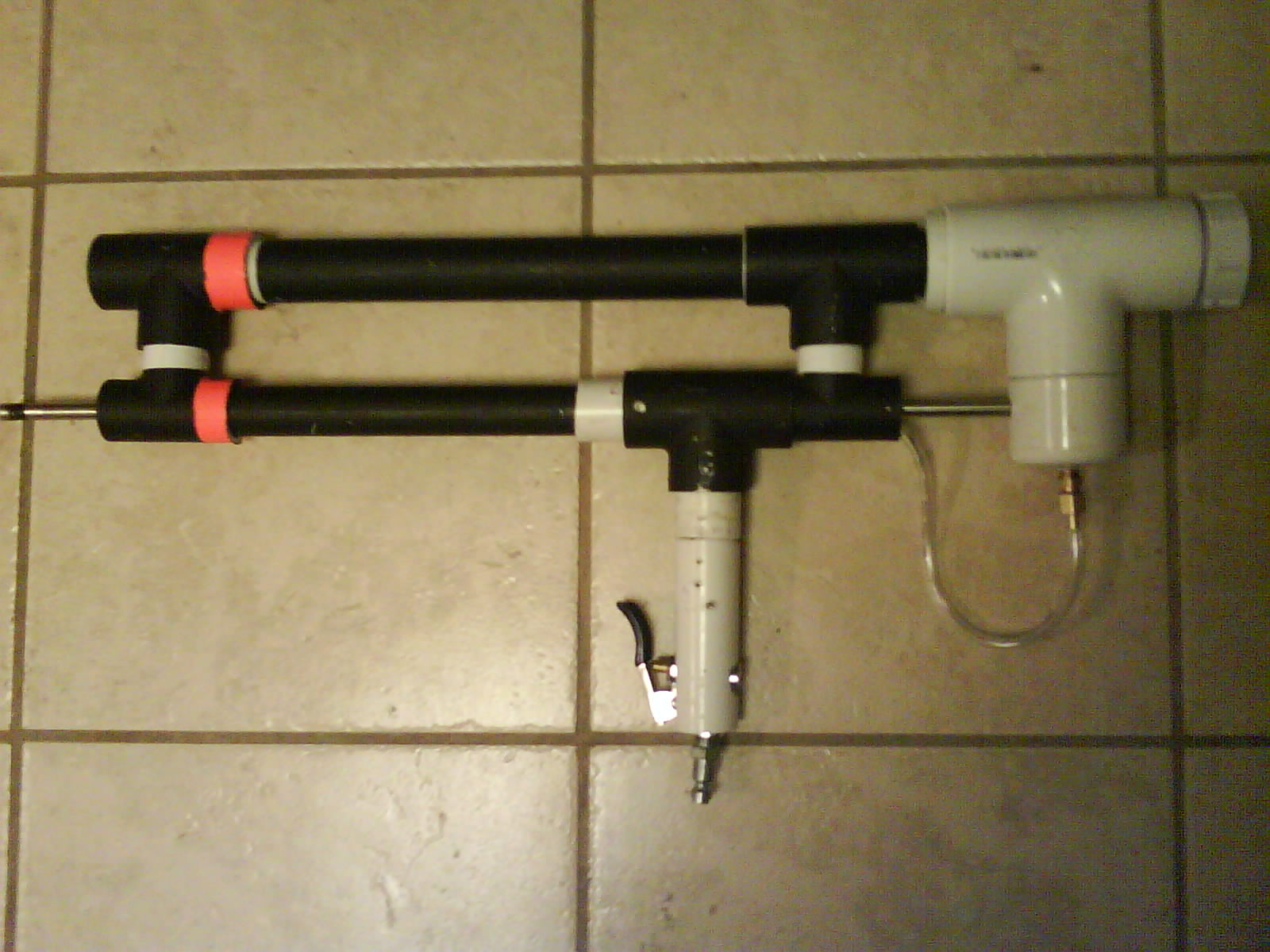

This is my first bbmg, and uses a pretty generic design. Just wanted some input. I plan to put a 6mm ID barrel in (right now its 7mm) so that i can shoot airsoft pellets a lot faster.
Attachments
Last edited by YEAHADD16 on Mon Dec 22, 2008 2:45 pm, edited 1 time in total.
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Dec 16, 2008 3:27 pm

Good looking configuration, I like it. Not really a basic design, a total plus. How is the flow/rate of fire? Dump 50 shots in and how fast does it empty?
Top
User avatar
SP00K
Specialist 2
Specialist 2
Posts: 212
Joined: Wed Dec 03, 2008 4:20 pm
Location: Ohiya

Tue Dec 16, 2008 6:21 pm

Looks pretty sweet. What kind of valve system did you use (I'm totally clueless as to what people usually use when it comes to bbmg's).
Top
User avatar
jrrdw
Moderator
Moderator
United States of America
Posts: 6572
Joined: Wed Nov 16, 2005 5:11 pm
Location: Maryland
Has thanked: 39 times
Been thanked: 22 times
Contact:
Contact jrrdw

Donating Members

Tue Dec 16, 2008 7:52 pm

SP00K wrote:Looks pretty sweet. What kind of valve system did you use (I'm totally clueless as to what people usually use when it comes to bbmg's).
It's a cloud, look it up in the BB gun section, or the Wiki.
Top
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3634
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 57 times
Been thanked: 57 times
Contact:
Contact mark.f

Donating Members

Tue Dec 16, 2008 8:21 pm

Actually, that looks like it may be a vortex following the general design on BurntLatke, but YEAHADD16 (suiting name) neglected to provide us with those details.
Top
User avatar
the tater ninja
Private
Private
Posts: 8
Joined: Thu Jul 17, 2008 11:46 pm

Tue Dec 16, 2008 9:17 pm

Yeah, that looks like a T-vortex, seeing the general shape and barrel placement
Top
User avatar
ISA_Yoshi
Private 3
Private 3
Posts: 44
Joined: Sun Aug 31, 2008 8:44 pm
Location: PA, USA

Tue Dec 16, 2008 10:02 pm

looks like air inlet through the blowgun in the handle/grip, through the tube to the bottom of a tee-vortex. I'm guessing the 2" white pvc is the reservoir, filled through the screw on cap. just a guess. looks like the burntlatke "model" to me.
looks nice though
Top
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Wed Dec 17, 2008 3:09 pm

It is a burntlatke model, I just modified the design a bit to fit my physique.

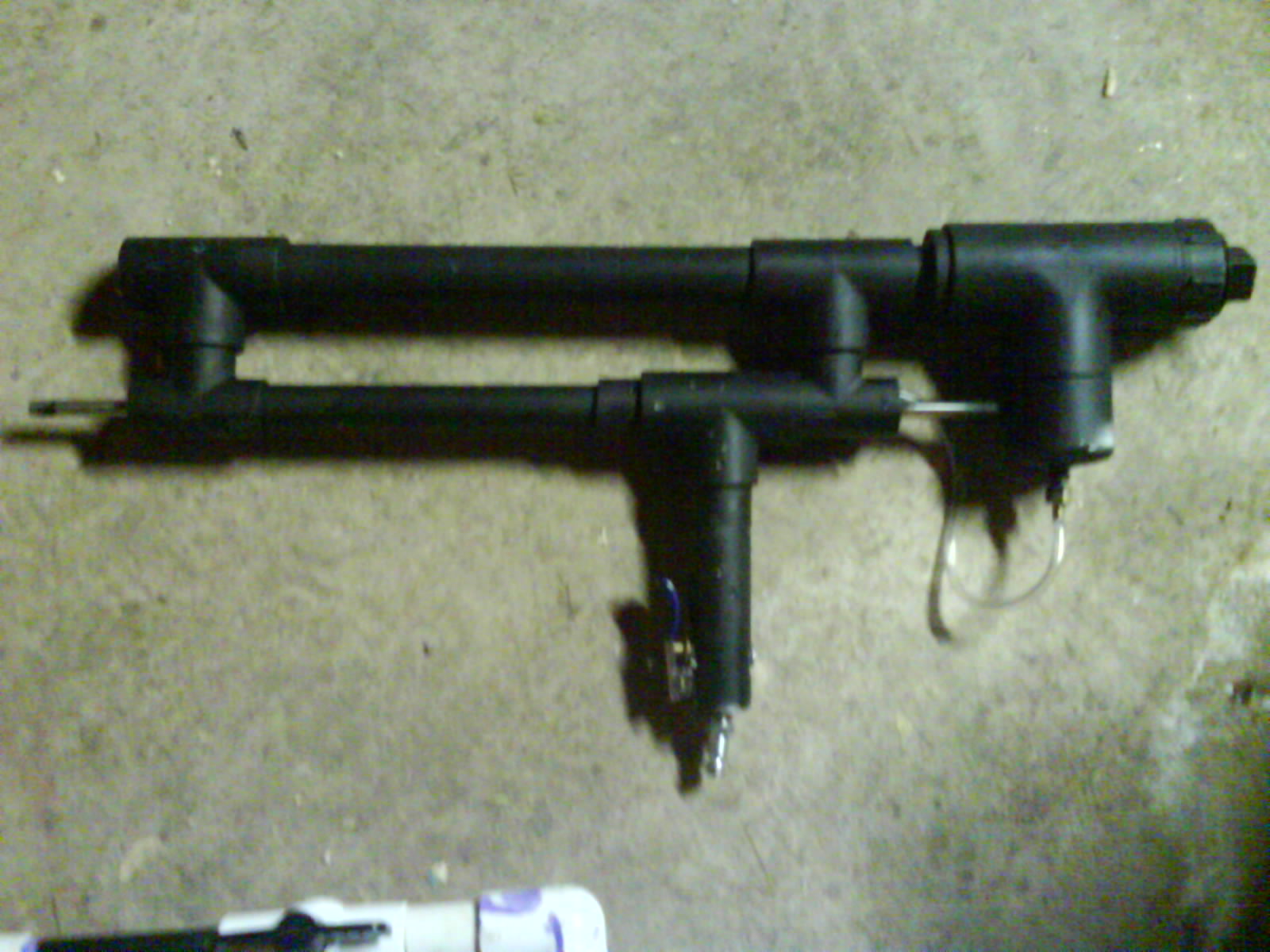

Ill post damage pics soon, I still have to tweak it and paint it.
looks like air inlet through the blowgun in the handle/grip, through the tube to the bottom of a tee-vortex. I'm guessing the 2" white pvc is the reservoir, filled through the screw on cap. just a guess. looks like the burntlatke "model" to me.
exactly what i did
Top
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Wed Dec 17, 2008 3:11 pm

I am hoping to put a laser pointer on it as well.
Top
User avatar
SP00K
Specialist 2
Specialist 2
Posts: 212
Joined: Wed Dec 03, 2008 4:20 pm
Location: Ohiya

Wed Dec 17, 2008 5:02 pm

O, I get it now. i just looked it up. THE WHOLE WORLD IS STARTING TO MAKE SENSE NOW!! *overdone exaggeration*
Top
User avatar
Davidvaini
Sergeant 4
Sergeant 4
Posts: 1315
Joined: Tue May 29, 2007 8:58 pm

Wed Dec 17, 2008 5:06 pm

Yes, the burntlatke model is the "T" Style vortex. I would paint it.. the gun is pretty basic..

I'm just gonna leave it at that.
