FAR2017

[farcticox1]

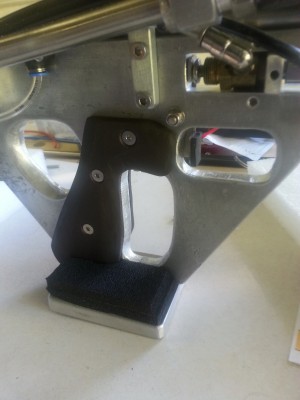

Got it finished with some work on the bipod and grip, video and full specs. to follow.

Bipod can turn slightly left and right

[jackssmirkingrevenge]

Another great build, I love the way she wears her insides on the outside

[farcticox1]

Came across this piece of 2mm thick gold anodized aluminium, and it almost looks like wood grain

[hectmarr]

Very nice work, these things keep the hobby alive. Excellent.

[farcticox1]

This is how it all began, as with most of the others I have built.

Get some inspiration


Make a scale plan (I use Microsoft Visio)

FAR2017 main - Copy.jpg (31.61 KiB) Viewed 6820 times

Get some parts and see how they fit

Make some more parts

Work out pneumatic circuit

air lines 3.jpg (25.5 KiB) Viewed 6820 times

Put it all together

It is 700mm(27.5") long.
The barrel is 10mmOD 6mmID stainless steel, 500mm(19.5") long, 800mm (31.5")with extension.
Chamber is 1" Stainless Sch40, 250mm (10") long.
Weight is 11.2Lbs (5Kg)
Main valve is a 5/2 1/2" port air pilot, control valve is 5/2 1/8" port air pilot, trigger valve is 3/2 #10/32 push button momentary spring return.

This magazine tube holds 50 airsoft BBs, I will be trying it with steel BBs as well.

[farcticox1]

Finally got the video done, not very exciting as it all happens inside. Used a 20 round short magazine, have a 40 and a 50 as well. I can see why some people like the bullpup style, with the barrel extension on it is perfectly balanced at the grip, really nice to shoot from the sholder. Pleased with how this one turned out

[youtube][/youtube]

[hectmarr]

wow !! work finished, I really like how it shoots, and the neatness of the construction.

[Air2theBrain]

I knew where your inspiration came from as soon as i saw this beast.

Impressed with your top mag tube, thats what i've been wanting to do also.

Shoots very well nice and accurate. 8)

[Air2theBrain]

Hi, i've just been looking at your FAR2017 again, do you have your main and air chambers connected?

[farcticox1]

Yes, mainly to increase the volume, I use it with the air supply always connected but only through a 4mm airline, so it tops up the chamber between shots.

[Air2theBrain]

Ah awesome...but your using a pilot valve, qev would be no difference?

[Air2theBrain]

Hi F1...have been reading your thread again, and noticed with your 1" chamber you said you split it into 2..?

What does that do?

[farcticox1]

Ah sorry, I thought that was what you meant before. I just wanted to get as much air onboard as I could. At least 4X barrel volume. The feed line from the compressor is 4mm OD Polyurethane which is so small you hardly know it's there, BUT it has very low flow so it is mainly there to top up the onboard chamber between shots. Originally it was going to look like this

scale bullpup2.jpg (35.79 KiB) Viewed 6473 times

[Air2theBrain]

Nice thanks.

I noticed your feed lines, do they handle the pressure ok?

Feed lines would be great to eliminate attachments between the trigger and the qev, etc.

[farcticox1]

Everything except the PVC chambers are standard pneumatic components, valves, fittings & tubing, I think they are rated at 120psi, I'm using 135psi so I guess there is a good safety factor anyway.
