Miniature guns are novelty custom, unique, and sometime downright crude! Common construction materials often include pill bottles or pens. Show us your work!
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1566
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Been thanked: 7 times

Wed Aug 03, 2011 6:51 pm

warhead052 wrote:There's only one thing left to do with the pen guns at this point, make em better.
Really? I'll bet he was hoping to make them worse :lol:
I love lamp
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Aug 03, 2011 11:56 pm

warhead052 wrote:You're right. How many hours do you get on your workbench a week?
Depends on work, errands... I could manage a couple of hours a day, the issue is getting started - once you do it's very easy to lose yourself in the machining, but again, it's all in the planning.
There's only one thing left to do with the pen guns at this point, make em better.
I don't think this coaxial type of pengun is going to get any better - you're limited to a small calibre, even if you up the pressure it will still be a "pea shooter".

A major improvement would be going "valveless" - bigger bore, zero "opening time", full flow.

edit: even better, imagine a "valveless" full auto integrally suppressed pengun :D
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Thu Aug 04, 2011 10:22 am

hahaha... I love the full auto one... :D
I HAZ A BANG!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Aug 04, 2011 11:24 am

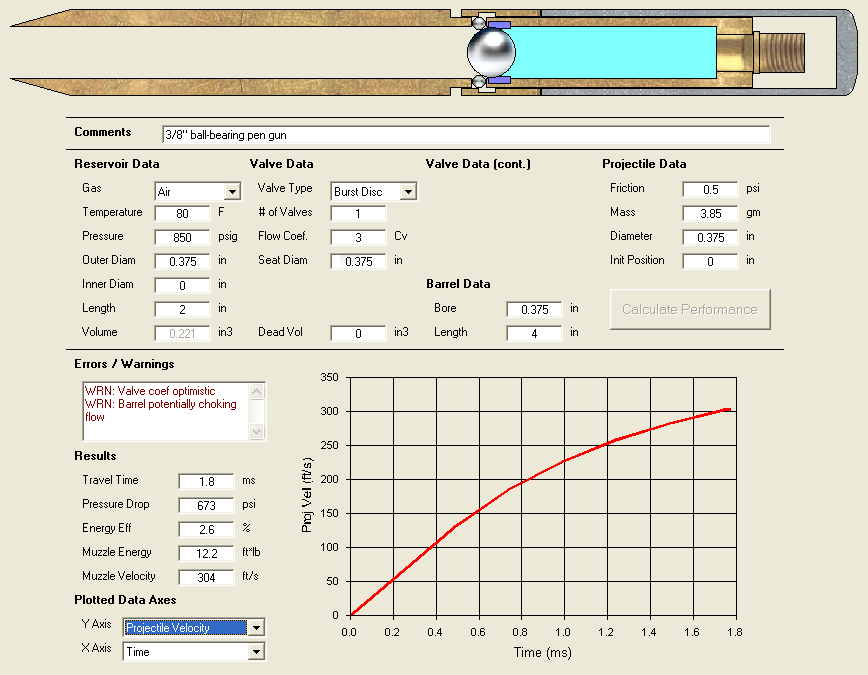

Up the calibre to 3/8" and you get some serious muzzle energy for a pen sized package at 850 psi, legally a firearm in the UK :D

The difficulty is getting that seal in place...
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Lockednloaded
Staff Sergeant
Staff Sergeant
United States of America
Posts: 1566
Joined: Thu Sep 03, 2009 9:38 pm
Location: Texas, USA
Been thanked: 7 times

Thu Aug 04, 2011 11:30 am

And how would you charge it if you have to have that cap on to hold the ball in place?
I love lamp
User avatar
FighterAce
Specialist 2
Specialist 2
Croatia
Posts: 295
Joined: Fri Oct 23, 2009 1:28 pm
Location: Croatia/Zagreb
Has thanked: 1 time
Been thanked: 4 times
Contact:

Thu Aug 04, 2011 12:25 pm

The cap seems to be in two parts... the brass one holds the ball while the aluminum one is just an extension.

Nice designs :wink:
“The combined synergy of a man and rifle is matchless.
The steadiness of hand, the acuity of vision and finally
the art of knowing how to make the rifle an extension of the
body all equate to the ultimate synthesis of man and machine.”
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Thu Aug 04, 2011 1:31 pm

Up the calibre to 3/8" and you get some serious muzzle energy
:shock: :idea: :?

I HAZ A BANG!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Aug 04, 2011 10:31 pm

LeMaudit wrote:Image
Yes you can :D

Of course this would be best a simple single shot launcher for a cartridge...
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Thu Aug 04, 2011 10:35 pm

Cartridge pengun :D
I love the full auto one but I doubt you'd get more than 3 shots off. Still... Full auto pengun, cartridge pengun, valveless pengun, oh the things JSR can build with Sherline :)
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Aug 05, 2011 12:16 am

FighterAce wrote:The cap seems to be in two parts... the brass one holds the ball while the aluminum one is just an extension
Well spotted :)

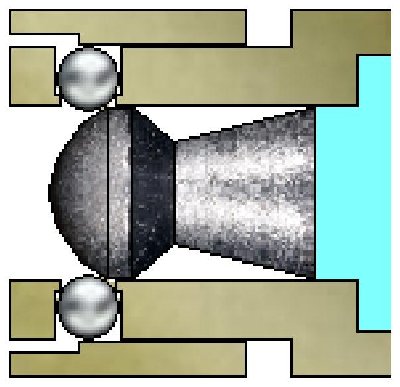

A slightly modified cartridge version, with a removable rear cap. This would allow either the skirt of a diablo pellet type projectile to be flared against the walls to provide an effective seal, or a silicone sleeve to be inserted that would seal a hard projectile like a steel ball.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Fri Aug 05, 2011 8:54 am

Jsr is there any way you can think of making the detent out of an oring rather than ball bearings, because that would eliminate the need for another seal. The only problem is I can't think of a way to hold it in.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
saefroch
Staff Sergeant 2
Staff Sergeant 2
Posts: 1679
Joined: Mon Jun 08, 2009 8:47 am
Location: U.S.A.- See Map

Fri Aug 05, 2011 9:51 am

Use a thick o-ring and recess it far into the walls?
User avatar
Insomniac
Sergeant 3
Sergeant 3
Posts: 1297
Joined: Mon Dec 18, 2006 3:47 pm
Location: Australia

Fri Aug 05, 2011 10:43 pm

Problem: Upon firing, those ball bearings are just going to fall out of their goove and be blown out the barrel with the projectile... :wink:
I wonder how much deeper the ocean would be without sponges.
Right now I'm having amnesia and deja vu at the same time. I think I've forgotten this before.

Add me on msn!!! insomniac-55@hotmail.com
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Fri Aug 05, 2011 11:06 pm

Insomniac wrote:Problem: Upon firing, those ball bearings are just going to fall out of their goove and be blown out the barrel with the projectile... :wink:
he thought of that
Attachments
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Aug 06, 2011 12:12 am

Gun Freak wrote:Jsr is there any way you can think of making the detent out of an oring rather than ball bearings, because that would eliminate the need for another seal. The only problem is I can't think of a way to hold it in.

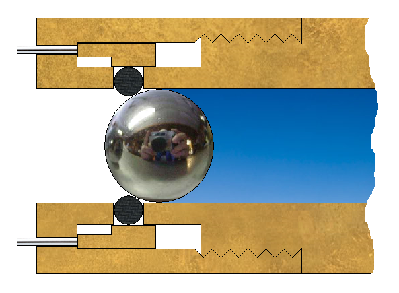

I've been thinking about that for a while, it's not an easy proposition. Here's one way I had though up but it's too complex for my liking.
Attachments

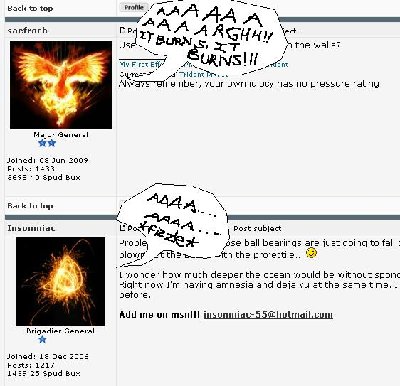

saefroch and Insomniac, when you post after eachother it looks like some sort of sequence :D
saefroch and Insomniac, when you post after eachother it looks like some sort of sequence :D
