if you think it can withstand 800+ psi then yeah sure.Packols wrote:is it ok to use a co2 bike refile with a mini pen gun if so will it be more powerful
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson
Add me on ps3: wannafuk, 8/11/11 cant wait
--Homer Simpson
Add me on ps3: wannafuk, 8/11/11 cant wait
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
No, because you made itMrCrowley wrote:Hmm... would you trust my Maglite Mini at those pressures? I would be tempted to buy one if it could handle it
... in the sense that you're the one who knows how well you put it together.

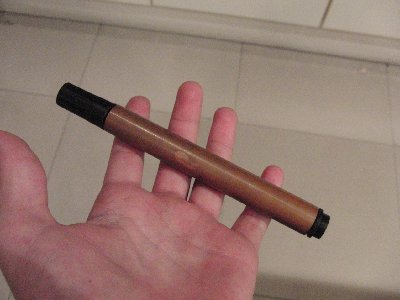

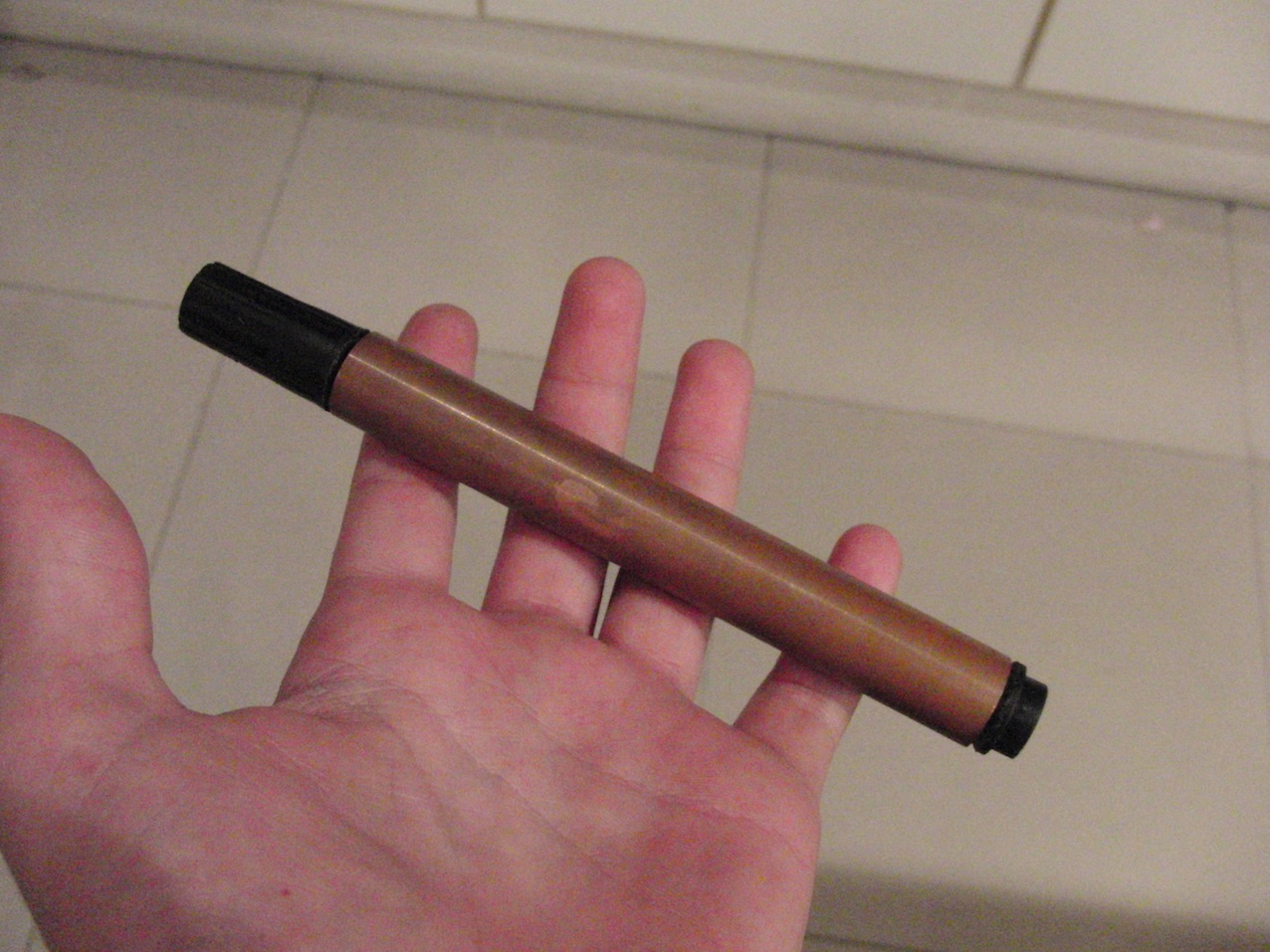

This thing had masking tape and Araldite endcaps, with a thin walled (less than 1mm) brass chamber, and it took 800 psi no problem.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
Haha fair enough. I wish I had a way to regulate the pressure down to 400PSI so I wouldn't use up a cartridge so fast. Is there anyway it would be possible to 'time' a 400PSI fill by quickly releasing the cartridge valve and then closing it?
$15 but doesn't look as good as your one.
This one has 'precise inflation control'
$15 but doesn't look as good as your one.
This one has 'precise inflation control'
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Makes you want to drink itSourced Directly from a natural carbon dioxide spring
Here's a thought, get the $15 one.
tee:
http://www.ebay.com/itm/2PCS-3-Ways-1-4 ... 336f98b0cb
gauge:
http://www.ebay.com/itm/New-1500-PSI-Pa ... 2a19352e54
female schrader cap:
http://www.ebay.com/itm/New-Bullet-Car- ... 20ba63457c
All the above together with a schrader valve body and a suitably sized o-ring, put into a blender with some epoxy... voila, no more guesswork
hectmarr wrote:You have to make many weapons, because this field is long and short life
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
Perhaps I have already spent my brain's daily allowance of thought processing time as I lost you at the female schrader cap part
I follow you with the tee and gauge but my mind draws a blank after that and refuses to work any further!
I follow you with the tee and gauge but my mind draws a blank after that and refuses to work any further!
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The tee has three ends:
end 1, screw the gauge (in the tangent part - straight fit) by the way that should be a 1/8" tee to fit it.
end 2, epoxy in a schrader body (schrader with the stem removed) - this part then screws into the CO<sub>2</sub> inflator.
end 3, epoxy in the female schrader cap. This needs a hole drilled through the top, and a rubber seal placed inside. This is where you screw in your launcher valve.
end 1, screw the gauge (in the tangent part - straight fit) by the way that should be a 1/8" tee to fit it.
end 2, epoxy in a schrader body (schrader with the stem removed) - this part then screws into the CO<sub>2</sub> inflator.
end 3, epoxy in the female schrader cap. This needs a hole drilled through the top, and a rubber seal placed inside. This is where you screw in your launcher valve.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- MrCrowley
- Moderator
- Posts: 10078
- Joined: Fri Jun 23, 2006 10:42 pm
- Location: Auckland, New Zealand
- Been thanked: 3 times
Ah yup, I getcha. That, in conjunction with one like yours would probably be the best solution. Does the trigger release a small puff of gas when depressed, like is it very controllable?
My thinking is this:
Buy a trigger operated CO2 inflater
Briefly depress the inflater in to a balloon
Measure dimensions of balloon to get a rough idea of volume
Figure out how much CO2 was expelled to fill the balloon
Measure volume of Maglite Mini
Figure out at what pressure that volume of CO2 would be inside the Maglite Mini
Wouldn't be surprised if this thinking if flawed; please do criticise
My thinking is this:
Buy a trigger operated CO2 inflater
Briefly depress the inflater in to a balloon
Measure dimensions of balloon to get a rough idea of volume
Figure out how much CO2 was expelled to fill the balloon
Measure volume of Maglite Mini
Figure out at what pressure that volume of CO2 would be inside the Maglite Mini
Wouldn't be surprised if this thinking if flawed; please do criticise
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
My major objection would be the temperature sensitivity of carbon dioxide.
I have a simpler idea, buy the inflater and find yourself a large sheet of 1/4" plywood. Drill a 10mm hole in the centre of the plywood, poke the maglite mini schrader through it then screw on the inflater.
Stand behind the sheet wearing safety glasses and earplugs, then pull the inflater trigger
I have a simpler idea, buy the inflater and find yourself a large sheet of 1/4" plywood. Drill a 10mm hole in the centre of the plywood, poke the maglite mini schrader through it then screw on the inflater.
Stand behind the sheet wearing safety glasses and earplugs, then pull the inflater trigger
hectmarr wrote:You have to make many weapons, because this field is long and short life
- pneumaticcannons
- Specialist 3
- Posts: 392
- Joined: Sat Oct 30, 2010 9:45 am
- Location: shite country in asia
- Contact:
Sounds like a plan. I'll have to try it with my newly finished marker gun...
In all seriousness, do you think this thing would hold 800 psi even though it's thin walled copper? .66mm to be precise. I'm thinking no chance but the 3 inch long , 8mm barrel gives some pretty sad results to be honest @ 300 psi. Plus the the portability sounds pretty appealing especially after my crap zefal shocky broke
In all seriousness, do you think this thing would hold 800 psi even though it's thin walled copper? .66mm to be precise. I'm thinking no chance but the 3 inch long , 8mm barrel gives some pretty sad results to be honest @ 300 psi. Plus the the portability sounds pretty appealing especially after my crap zefal shocky broke
ramicaza <- My Youtube Channel
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The thing with copper is that it's very soft, so under pressure it will stretch and pull away from the epoxy.
This project was fine at 500 psi but leaked at 800, on the other hand it was much larger diameter.
This project was fine at 500 psi but leaked at 800, on the other hand it was much larger diameter.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 4 times
Fill it up completely with water and find out.
If it pops it will pop with less energy.
Hiding behind a sheet is still a good idea.
And so it wearing earprotection while doing so.
I have had 80 bar on a piece of 15mm copper pipe.
No...79.9
but it wasn't the pipe that blew or broke my upper jaw either.
Little checkvalve problem.
Just be careful.
If it pops it will pop with less energy.
Hiding behind a sheet is still a good idea.
And so it wearing earprotection while doing so.
I have had 80 bar on a piece of 15mm copper pipe.
No...79.9
but it wasn't the pipe that blew or broke my upper jaw either.
Little checkvalve problem.
Just be careful.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
