This is an idea I had a while back, which was to dispense with the valve altogether and use the projectile to seal the air chamber, locked in place until it was ready to fire. This would be to all intents and purposes the most effective "valve" happy red? :p I could think of.

The prototype I actually made had a bolt as a projectile stopper and used 0.22 airgun pellets which gave a good seal on the barrel. The performance however wasn't any better than my mini-piston designs so I shelved the idea as not offering sufficient benefits to warrant the awkward method of operation.

The disadvantage is that you need a projectile that's a 100% airtight fit in the breech, which also has to be of strong enough construction to retain the pressure behind it without collapsing. Still, for those seeking ultimate performance, it might be a workable idea.

For more detailed information on using epoxy, check out the how-tos here and here.
Attachments

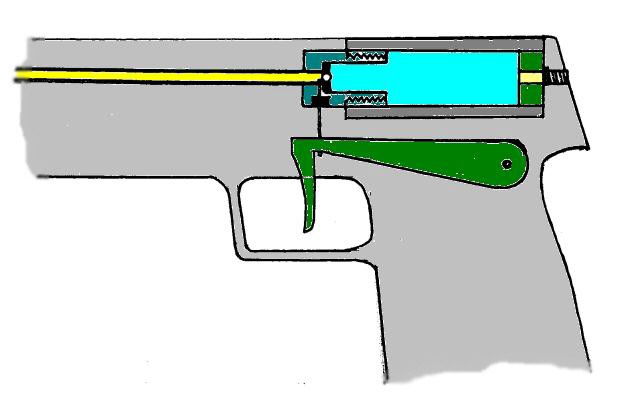

concept drawing with a sliding lock
concept drawing with a sliding lock

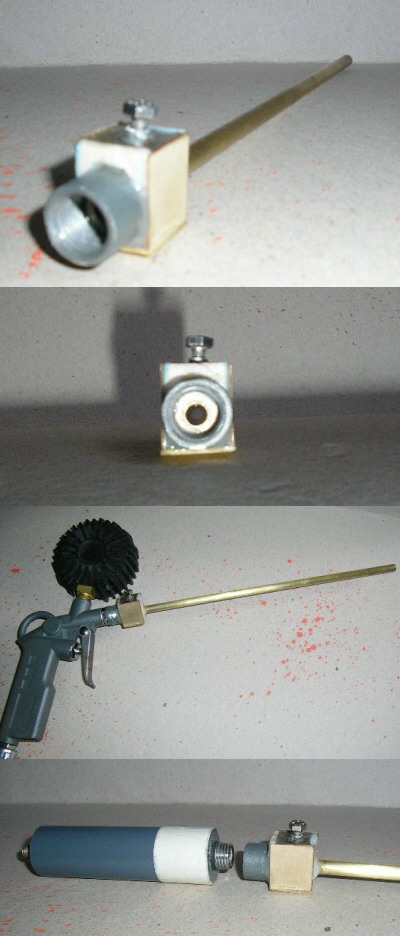

views of the actual prototype, from top to bottom:<br /><br />1)rear view of breech and barrel assembly<br />2)view down the barrel, you can make out the end of the bolt sticking out - note that it only has to enter the barrel a tiny amount to jam the projectile in place.<br />3)breech threaded to a blowgun for low pressure testing<br />4)High pressure chamber for 300 psi+ testing.
views of the actual prototype, from top to bottom:

1)rear view of breech and barrel assembly
2)view down the barrel, you can make out the end of the bolt sticking out - note that it only has to enter the barrel a tiny amount to jam the projectile in place.
3)breech threaded to a blowgun for low pressure testing
4)High pressure chamber for 300 psi+ testing.

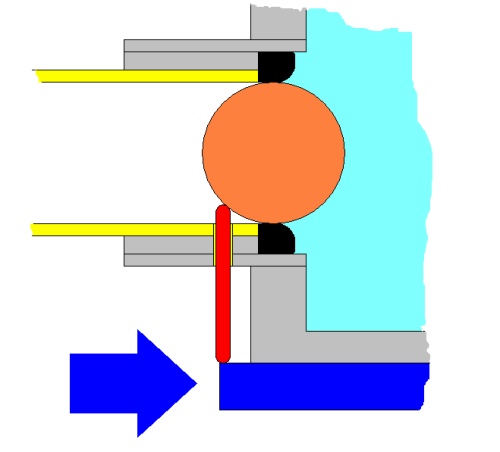

valveless strafer concept
valveless strafer concept

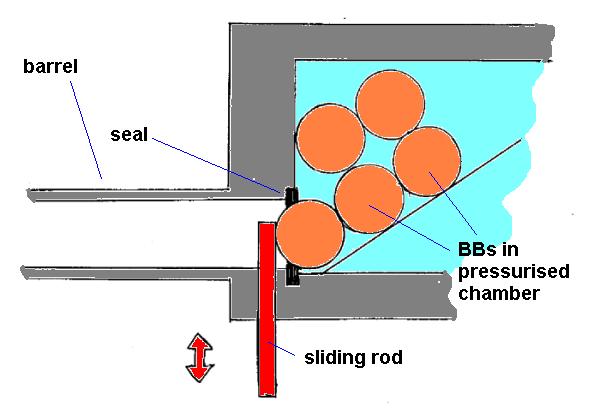

prototype breech construction
prototype breech construction
valveless breech.JPG (33.73 KiB) Viewed 8310 times

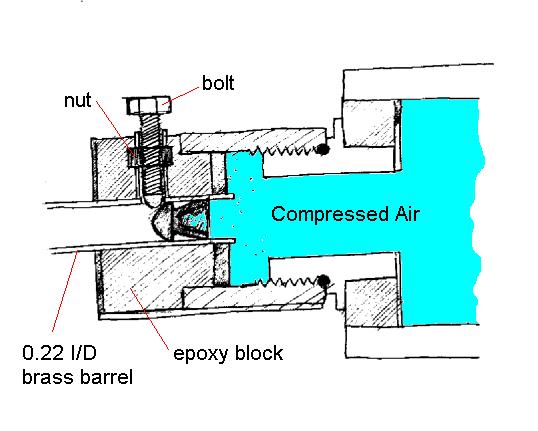

breech concept closeup
breech concept closeup
Last edited by jackssmirkingrevenge on Sun Sep 09, 2007 12:04 pm, edited 4 times in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Redcoat
Corporal 4
Corporal 4
Posts: 835
Joined: Tue Feb 13, 2007 1:07 am
Location: Sydney ,Australia
Contact:

Thu Jun 21, 2007 11:24 pm

bravo jack, your ideas keep on comng and there always good.I never would have thought of that.That is a good idea maybe for a sniper?

A one shot pistol is pretty annoying (in my books).
Poo.
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

Thu Jun 21, 2007 11:25 pm

So a valveless gun with the most effective valve you could think of? That made me laugh.

But in all seriousness that is a really good idea. I might just make one this weekend... Providing I find money.
User avatar
noname
First Sergeant 4
First Sergeant 4
Posts: 2698
Joined: Mon Apr 10, 2006 9:19 pm
Location: Bay Area, CA

Thu Jun 21, 2007 11:26 pm

Knowing you and your epoxy skillz, I think you could make it. Good luck. What kind of projectiles do you have in mind, seeing as they need to seal?
User avatar
hi
Staff Sergeant 2
Staff Sergeant 2
Posts: 1619
Joined: Thu Feb 01, 2007 9:28 pm

Thu Jun 21, 2007 11:26 pm

i think you would have to pull the trigger fairly fast, but it should work, if you can ge it to seal.
"physics, gravity, and law enforcement are the only things that prevent me from operating at my full potential" - not sure, but i like the quote

you know you are not an engineer if you have to remind yourself "left loosy righty tighty"
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Jun 21, 2007 11:37 pm

sorry guys but I pressed the "submit" button too early (d'oh!) I actually made a prototype of this, check the edited post :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Velocity
Sergeant
Sergeant
Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm

Thu Jun 21, 2007 11:39 pm

Its like a burst disk on steroids! (not really?)

Nice design here... I am surprised that you were able to get it to seal.

It would be interesting to compare this to a burst disk gun of similar size.
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

Thu Jun 21, 2007 11:40 pm

well another one of your wonderful innovations has been put into my "stuff to build" file in my favorites. once again good job jack, like usual.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Jun 21, 2007 11:40 pm

rmich732 wrote:Nice design here... I am surprised that you were able to get it to seal.
It sealed easily without any rubber because the soft lead skirt of the pellet "inflates" and seals agaisnt the barrel. This is after all the same way that brass cartridges seal the propellant casses inside firearms.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
rednecktatertosser
Corporal
Corporal
Posts: 590
Joined: Tue May 22, 2007 7:52 pm

Thu Jun 21, 2007 11:44 pm

AH so it works off the pricipal of grease seals on a car axle, where its cupped to one side, the side it seals so that it helps hold pressure. thats ingenious.
User avatar
shud_b_rite
Specialist 2
Specialist 2
Posts: 290
Joined: Tue Jan 30, 2007 7:10 pm
Location: Auckland, New Zealand

Fri Jun 22, 2007 1:36 am

I like your chamber. Where did you get it? Or how did you make it?
Airbeds... so many different uses
User avatar
FreakyShotGlass
Specialist
Specialist
Posts: 114
Joined: Fri Dec 02, 2005 6:34 pm

Fri Jun 22, 2007 1:51 am

You could use a solenoid to hold back the projectile and then apply a current and the solenoid would activate and release the projectile.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Jun 22, 2007 2:16 am

shud_b_rite wrote:I like your chamber. Where did you get it? Or how did you make it?
I made it myself, as per attached diagram.
You could use a solenoid to hold back the projectile and then apply a current and the solenoid would activate and release the projectile.
You'll need a pretty hefty solenoid to achieve that, for a 3/4" barrel at 100 psi it'll have to hold a force of 44 lbs.
Attachments

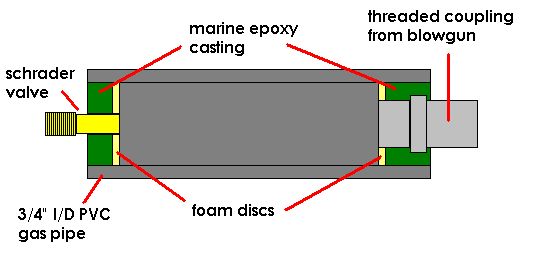

chamber diagram
chamber diagram
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
potatoflinger
Sergeant 2
Sergeant 2
Posts: 1136
Joined: Thu Nov 02, 2006 3:26 pm
Location: Maryland

Fri Jun 22, 2007 8:11 am

That's a great idea, but wouldn't the pellets wear down the barrel after a while, since they expand to fit the barrel perfectly? It seems like they would scrape the sides the whole way down the barrel.
User avatar
lukemc
Corporal
Corporal
Posts: 565
Joined: Sun Feb 25, 2007 8:48 am
Location: NY

Fri Jun 22, 2007 8:34 am

jackssmirkingrevenge wrote:
You could use a solenoid to hold back the projectile and then apply a current and the solenoid would activate and release the projectile.
You'll need a pretty hefty solenoid to achieve that, for a 3/4" barrel at 100 psi it'll have to hold a force of 44 lbs.


what if you made it like this the solenoid wouldnt have to direcly hold back the pressure
Last edited by lukemc on Fri Jun 22, 2007 8:35 am, edited 1 time in total.
"Those who are different change the world. Those who are the same keep it that way"
Post Reply
