so how do i modify it?thrasmussen wrote:3x4" bell reducer with a 4x2" Bushing turned around so that the funnel shaped part is facing backward. Looks great! Needs a bit of modification to the bushing to make it go in backwards though.
End of rocket launcher
-
thrasmussen
- Private 4
- Posts: 80
- Joined: Wed Sep 13, 2006 4:53 pm
You just grind down the flange that keeps it from going in backwards.
-
souljahz_unite
- Private 2
- Posts: 36
- Joined: Wed Apr 18, 2007 3:58 pm
the best way i think is the hot oil. it works and you wont get flaming pvc ._. all the hot oil does is soften up the pvc to be 'modeled' in a way. Here the link to the spudtech tutorial :
http://spudtech.com/content.asp?id=26
That has a step by step and a what to do and what not to do. Id reccomend it just because his results looked decent. I plan on trying it as soon as i get myself some pvc pipe.
http://spudtech.com/content.asp?id=26
That has a step by step and a what to do and what not to do. Id reccomend it just because his results looked decent. I plan on trying it as soon as i get myself some pvc pipe.
-
thrasmussen
- Private 4
- Posts: 80
- Joined: Wed Sep 13, 2006 4:53 pm

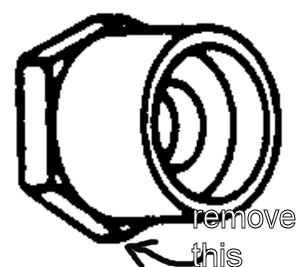

You remove this:flamerz14 wrote:erm.. sorry i don't get you.
And if you get the right one it will have a bowl/cone shape to it in the rear.
- Attachments
-
- 091002329-300.jpg (16.03 KiB) Viewed 2433 times
Last edited by thrasmussen on Fri Apr 20, 2007 7:34 am, edited 1 time in total.
remove the edges u mean?-
thrasmussen
- Private 4
- Posts: 80
- Joined: Wed Sep 13, 2006 4:53 pm
Yes. exactly. And stick that in backwards, into the 4" end of a 4x3" bell reducer.
-
thrasmussen
- Private 4
- Posts: 80
- Joined: Wed Sep 13, 2006 4:53 pm
It's just like a regular bushing but in a bell shape.
-
iknowmy3tables
- Staff Sergeant
- Posts: 1596
- Joined: Fri Dec 15, 2006 3:57 pm
- Location: maryland
- Has thanked: 3 times
- Been thanked: 9 times
a reducer is a reducer the technical name for them are brushings and couplings brushings have one male side and one female side, couplings have two female sides they dont always reduce
-
thrasmussen
- Private 4
- Posts: 80
- Joined: Wed Sep 13, 2006 4:53 pm
Yes the "Bell Reducer" is like a coupling but with one end smaller than the other.
I assumed it was a photo shop but being a small photo it was hard to tell..Specialist wrote:ya he could just go to google and get an image. and juscuz welcome to spudfiles. i like jack's second idea a lot.
Thanks for the welcome, I am not that new I just finally registered.
I agree the altered bushing with the bell reducer would look the best.
