I was wondering around piston airguns to see about effects of piston weight and spring length and I found this very interesting build log: https://www.gatewaytoairguns.org/GTA/in ... ic=25115.0. The guy attempted to build a dual piston airgun, in which the two pistons are positioned in opposite side so when it fires, the recoil cancels out. So no matter how hard is the spring (the guy is using gas spring) nor how heavy is the piston, the gun is theoretically vibration free. (Kinda like one of these AKs with a counter weight to cancel the bolt).
Then I visited the builders website: www.americanairarms.com in which I found he uses an "air assisted valve". after further reading I'm fairly certain he is using a counter balanced hammer valve.
"boxer" piston spring airgun and balanced valve
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The Diana Model 6 used dual pistons:
Only one of them did the actual pellet firing though, the other one was just there to balance the spring recoil.
The real powerhouse was the Whiscombe series of rifles however that used dual opposed pistons.
Very rare and expensive but they were shooting in the region of 30 ft/lbs muzzle energy with almost no recoil
Megathread
Only one of them did the actual pellet firing though, the other one was just there to balance the spring recoil.
The real powerhouse was the Whiscombe series of rifles however that used dual opposed pistons.
Very rare and expensive but they were shooting in the region of 30 ft/lbs muzzle energy with almost no recoil
Yup, very common topic of discussion on the GTA forum and commercial manufacturers have caught on.Then I visited the builders website: http://www.americanairarms.com in which I found he uses an "air assisted valve". after further reading I'm fairly certain he is using a counter balanced hammer valve.
Megathread
hectmarr wrote:You have to make many weapons, because this field is long and short life
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
Nice. Now I need to look into Cobra and SS valves...
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Balanced valve with the poppet that sleeves over a spigotCobra valve
Same concept as the balanced valve we are familiar with but differently configured.
A "stepped" variation of the balanced valve in an attempt to make it more tunable:SS valve
By controlling the flow through the equalization port that air can go through once the valve is open, then you have some control over how fast it will close and therefore you can tune the dwell time to some extent.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
So the holy grail is to have the valve close as the pellet extis (or whenevr it's optimal) by adjusting the air flow through the equalization port (pressure raises on barrel side, air flows into the balance chamber at X rate and forces the valve close at Y moment)
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Precisely.wyz2285 wrote:So the holy grail is to have the valve close as the pellet extis (or whenevr it's optimal) by adjusting the air flow through the equalization port (pressure raises on barrel side, air flows into the balance chamber at X rate and forces the valve close at Y moment)
The rule of thumb is to have the valve close when the pellet is approximately half-way down the barrel, any more than this wastes significantly more air for little benefit in velocity.as the pellet extis (or whenevr it's optimal)
hectmarr wrote:You have to make many weapons, because this field is long and short life
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:

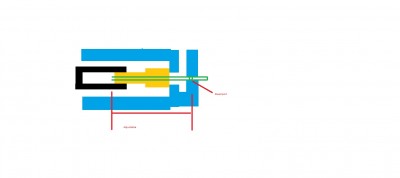

So if you make the valve stem length adjustable so the bleed port is half covered, then it's only exposed after the valve has open to a certain depth (AKA the needed dwell), closing the vavle in the right time.
