This here is a BreechLoading Pneumatic Cannon.
It was designed specifically for launching Pocket Vortex Nerfs from an enclosed/confined Paintball Tank.
All of the filling and firing controls and Nerf loading had to be close by and accessible , easy to use.
(for those who live in caves and under rock, the Pocket Vortex Nerf is the approved round for eliminating (killing) a Paintball Tank during a game).
Irritrol 1" valve, with Flow Control. Using the valves "with Flow Control" allows you to pull out the flow adjuster guts and tap for 1/4npt threads, real easily.
100psi pop-safety valve. 160psi gauge.
Valterra 2" Gate Valve for the breech.
It eventually got a nice pistol grip blowgun trigger (not pictured).
Can be used with compressed air or Co2.
Air Chamber was 3" PVC @ approx. 4 feet long.
2 inch Bore, about 4.5 feet long.
At 60 psi it would chrono a foam Pocket nerf at about 280fps.
(Most fields limit the Nerfs to 250fps or lower, for safety).
(Yes, we have a PB radar chrono)
This one isn't my first cannon, nor my last.
It now belongs to someone in NY.
Breech Loading Pneumatic (Sprinkler valve)
- Attachments
-

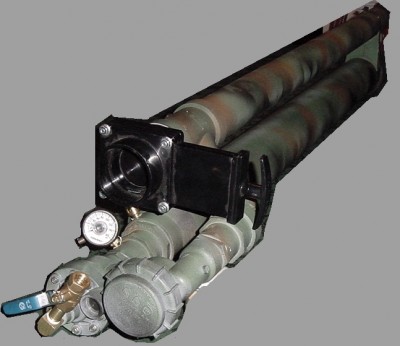

- Breech Open, looking straight through.
-

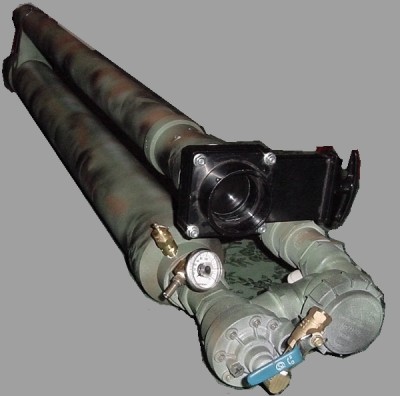

- Pneumatic Breech Loader with 2" bore for shooting a Nerf Pocket Vortex
-
- Pneumatic Breech Loader with 2" bore for shooting a Nerf Pocket Vortex
Last edited by SkunkWerX on Mon Feb 06, 2006 8:22 pm, edited 2 times in total.
-
saladtossser
- Sergeant 3
- Posts: 1234
- Joined: Sat Mar 26, 2005 10:40 am
- Location: Toronto
- Contact:
omg ur breech loader is wicked
"whoa... I thought pimpmann was black..."-pyromanic13
I added another pic, as you requested.
Sorry for the cut-out look of the pics, but I gotta get the file sizes reduced so they will accepted by the size monster.
I'll post some more of my creations, (yes there is more) , but only if they take that "Private" Rank off of my profile.
I'll take Gunnery Sargeant, thanks.
Sorry for the cut-out look of the pics, but I gotta get the file sizes reduced so they will accepted by the size monster.
I'll post some more of my creations, (yes there is more) , but only if they take that "Private" Rank off of my profile.
I'll take Gunnery Sargeant, thanks.
-
dragon finder
- Specialist 3
- Posts: 398
- Joined: Sun Jan 22, 2006 10:31 pm
looks great what is the breach loading hach back there
looks home made
and yes more pics (drools
)
looks home madeand yes more pics (drools

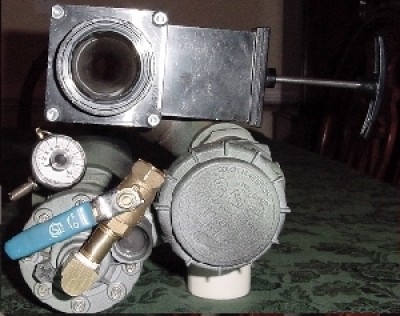

)Valterra 2" Gate Valve for the breech. Made of PVC, so it glues right on.
They use these for the waste holding tanks on RVs.
(Dump valves).
This one has O-ring seals and is rated for 50psi, max.
But since it isn't on the pressurized side, no biggie, even if it leaked, a little, it would only be for the duration of the shot.
The best thing is that the breech valve seals are replaceable.
I have to say, I've never seen it used this way before, so,
for now, I'll claim it as my original idea.
They use these for the waste holding tanks on RVs.
(Dump valves).
This one has O-ring seals and is rated for 50psi, max.
But since it isn't on the pressurized side, no biggie, even if it leaked, a little, it would only be for the duration of the shot.
The best thing is that the breech valve seals are replaceable.
I have to say, I've never seen it used this way before, so,
for now, I'll claim it as my original idea.
Thanks, I had one of them break on me, but it was on my RV trailer, hit a big rock or something underneath the trailer.
I would only use them on a pneumatic cannon, running relatively lower pressures, no high pressure stuff.
I have used them now on 3 Air Cannons, with no problems, no leaks, no cracks, etc.
My Max pressure is typically 100psi with these types of Cannons.
Typically more in the 50 to 75psi range.
I'm strictly a 2" bore maker, for Nerfs and Paintball usage.
My current personal cannon has the breech loading valve.
It did something pretty amazing, and pretty scary, at 65psi I test fired a Foam Pcoket vortex Nerf through a Paintball Safety net at a distance of about 75 feet. Clean through it. Nice round 2" hole.
So much for safety at the Paintball field.
Well, of course, with safety in mind
I wanted to see what it would do approaching 100psi. Fired another Pocket Vortex Nerf.
It ripped the fins off of the Nerf in Mid-air, about 40 feet from the muzzle.
I learned something that day, Pocket Vortex Nerfs may be very aerodynamic, but they are limited by air resistance.
Lastly, it's even harder to find a little nerf, downrange, when the fins are missing.
I would only use them on a pneumatic cannon, running relatively lower pressures, no high pressure stuff.
I have used them now on 3 Air Cannons, with no problems, no leaks, no cracks, etc.
My Max pressure is typically 100psi with these types of Cannons.
Typically more in the 50 to 75psi range.
I'm strictly a 2" bore maker, for Nerfs and Paintball usage.
My current personal cannon has the breech loading valve.
It did something pretty amazing, and pretty scary, at 65psi I test fired a Foam Pcoket vortex Nerf through a Paintball Safety net at a distance of about 75 feet. Clean through it. Nice round 2" hole.
So much for safety at the Paintball field.
Well, of course, with safety in mind
I wanted to see what it would do approaching 100psi. Fired another Pocket Vortex Nerf.It ripped the fins off of the Nerf in Mid-air, about 40 feet from the muzzle.
I learned something that day, Pocket Vortex Nerfs may be very aerodynamic, but they are limited by air resistance.
Lastly, it's even harder to find a little nerf, downrange, when the fins are missing.
