More Nerf Rival fun
-
farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Running at upto 600fps @150psi, stainless steel barrel and chamber, 1/2" pilot air valve triggered by miniature 3/2 button valve, all hand made except the scope, PVC pipe for muzzle break. 7 shot gravity fed magazine tube, single shot bolt action.
-
farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Some build pictures and parts.

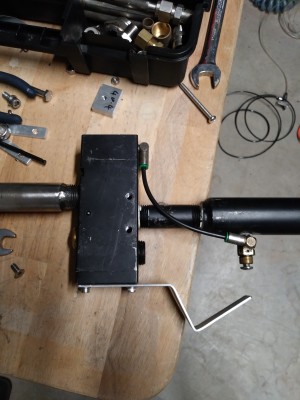

Trigger valve, 3/2, is threaded straight into chamber, 1" stainless steel Sch40 tube, and piped to air pilot valve.

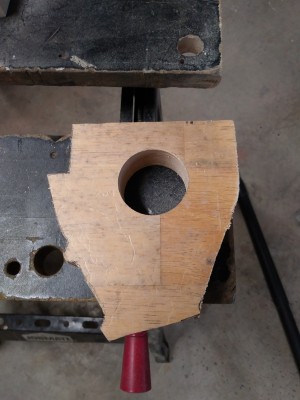

Grip is made from old kitchen table top.

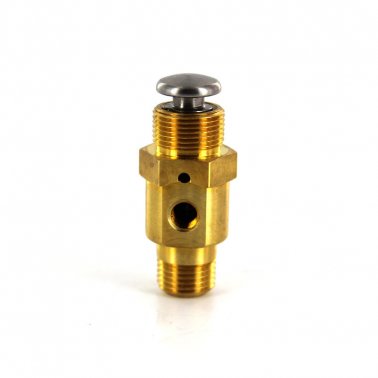

Trigger valve https://tecotechnology.com/products/tac ... alve-10-32
Main valve
https://www.automationdirect.com/adc/sh ... s/avs-5444
Trigger valve, 3/2, is threaded straight into chamber, 1" stainless steel Sch40 tube, and piped to air pilot valve.
- 3P-Humphrey-Products-Pneumatic-Directional-Valve-349293.jpeg (7.79 KiB) Viewed 4757 times
https://www.automationdirect.com/adc/sh ... s/avs-5444
- m_avs5444.jpg (3.39 KiB) Viewed 4757 times
