The S400 ~ By Chaos




Category: Pneumatic

Stats:

- Material: 316L grade stainless steel.
- Valve: Custom Barrel Sealing piston
- Operating Pressure: 10psi-400psi.
- Loading: Revolving Bolt Breech.
- Barrel I-D: 16mm
- Barrel Length: 800mm
- Chamber I-D: 34mm
- Chamber volume: 389cm3
- Piston Housing I-D: 24.400mm (1")
- Pilot Valve: Modified SMC High Flow Blowgun ($150AU a piece i got it for free)

Aesthetics:

- 100mm Muzzle Brake
- Walther 30mm Top point Red Green dot scope / custom rail.
- 470mm X 50mm silencer
- Harris Style retractable/detachable Bi-pod
- S/S Braided hose on pilot exhaust to blowgun
- Custom S/S mesh pilot muffler



Ammo:

- 16mm marbles 4g
GGDT Calculated Velocity @ 200psi: 238m/s (783fps)

- 5/8 lead fishing sinkers 12g
GGDT Calculated Velocity @200psi: 162m/s (532fps)




Pictures

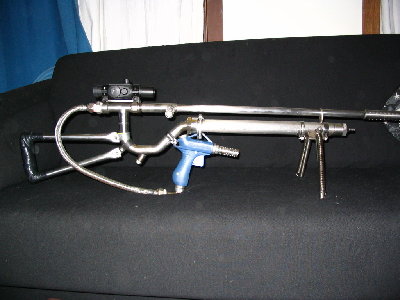

The Gun Itself







Videos

Great Vid, Big Fireball, was much fun

[youtube][/youtube]

Shooting at some deodorant cans...

[youtube][/youtube]

[youtube][/youtube]

A compilation of some vids wit some music

[youtube][/youtube]

Testing the Silencer.... (Silencer didnt help that much)

[youtube][/youtube]

[youtube][/youtube]

6mm plastic Buckshot Test (impressive)

[youtube][/youtube]

Propane Power

[youtube][/youtube]

Carp B Gone (carp are pests Please only watch if your not Anti-Everything)

[youtube][/youtube]

Shooting at a 1/2 full butane Can

[youtube][/youtube]



Peace
~chaos~


Edit by MrC: Uploaded one photo to Spudfiles just in case your account goes down again.
Attachments
Just in case
Just in case
Last edited by chaos on Sat Jun 07, 2008 8:02 am, edited 10 times in total.
Juicey
Private 3
Private 3
Posts: 46
Joined: Wed Apr 18, 2007 9:04 pm

Mon Apr 23, 2007 9:28 am

Wow, that gun looks amazing. I absolutely love the Stainless Steel look. Really makes me wanna try to make me a sniper. Great gun.
User avatar
chaos
Sergeant 3
Sergeant 3
Posts: 1205
Joined: Wed Jan 17, 2007 8:31 am

Mon Apr 23, 2007 9:34 am

well thanks for the comment man good luck making one if ya do.
User avatar
mega_swordman
Corporal
Corporal
Posts: 526
Joined: Wed Nov 29, 2006 2:37 pm
Location: Bay Area, California
Contact:

Mon Apr 23, 2007 10:12 am

I can't help but to think that this looks exactly like the SSS. Regardless, it is still a really cool looking sniper. Keep up the good work :thumbup:
"Never tell people how to do things. Tell them what to do and they will surprise you with their ingenuity." George S. Patton
User avatar
chaos
Sergeant 3
Sergeant 3
Posts: 1205
Joined: Wed Jan 17, 2007 8:31 am

Mon Apr 23, 2007 10:15 am

hmm ok, well i did kinda expect that with the pics i took *exact same background, its made of the same color material*

yer i get ya pont, but i must say this packs a bit more punch than *ye olde Triple S*.

peace
chaos

EDIT: WOO!! WOO!! 500th post!
User avatar
bboymatty
Specialist
Specialist
Posts: 108
Joined: Sun Feb 19, 2006 12:12 pm

Mon Apr 23, 2007 11:51 am

lol i was about to say the same, it does look like the SSS. Anyways i know it aint because the video has the rifle without the scope attached.

Nice gun, its too bad us metal smoothbores dont really have any consistently accurate ammo to fire with.
User avatar
LucyInTheSky
Specialist 2
Specialist 2
Posts: 293
Joined: Fri Apr 21, 2006 11:46 am

Mon Apr 23, 2007 12:51 pm

Thats a very good looking gun, but its a shame about the blue plastic blowgun as i think it spoils it, you should have used a metal blowgun.
If your getting chased off a police dog, try not to run through a tunnel then onto a small see-saw then through a ring of fire. They are trained for that!
flo
Private
Private
Posts: 5
Joined: Mon Mar 13, 2006 4:50 am

Mon Apr 23, 2007 1:21 pm

Man, this gun´s "KILLER", that´s we´d call it in Germany - fuckin´great !!!
User avatar
schmanman
Staff Sergeant 2
Staff Sergeant 2
Posts: 1685
Joined: Sat Mar 25, 2006 12:28 pm
Location: Michigan,U.S.A
Contact:

Mon Apr 23, 2007 4:16 pm

awsome, but why on earth would you shoot in your house?

did it damage the furnature?
Persistence is a measure of faith in yourself
User avatar
ShowNoMercy
Sergeant
Sergeant
Posts: 1094
Joined: Mon Mar 19, 2007 8:08 am
Location: Jersey Bitches!

Mon Apr 23, 2007 4:20 pm

This is kinda a random question, but did you machine all your pieces or is just shiny store bought stuff?
Jesus saves, no need to pray
The gates of pearl have turned to gold
It seems you've lost your way
User avatar
chaos
Sergeant 3
Sergeant 3
Posts: 1205
Joined: Wed Jan 17, 2007 8:31 am

Mon Apr 23, 2007 6:56 pm

bboymatty wrote:lol i was about to say the same, it does look like the SSS. Anyways i know it aint because the video has the rifle without the scope attached.

Nice gun, its too bad us metal smoothbores dont really have any consistently accurate ammo to fire with.
meh i find that hard to believe, marbles are pretty damn accurate.

but its a shame about the blue plastic blowgun as i think it spoils it, you should have used a metal blowgun.


i Assure you sir it is only plastic on the outside http://stevenengineering.com/Tech_Suppo ... 0PCVMG.pdf

awsome, but why on earth would you shoot in your house?

did it damage the furnature?


yer i did it coz it was dark outside, yer 3-4 bb's went into the couch lol there plastic at 40psi.

but did you machine all your pieces or is just shiny store bought stuff?
i diddnt spend a cent on this gun, nothing is machined.
User avatar
paaiyan
First Sergeant
First Sergeant
Posts: 2140
Joined: Wed Dec 27, 2006 10:03 pm
Location: Central Oklahoma
Been thanked: 1 time

Mon Apr 23, 2007 7:01 pm

Freakin A. That's righteous. You should make some ballistics gel and shoot at that.
"Who ever said the pen was mightier than the sword, obviously, never encountered automatic weapons."
-General Douglass MacArthur

Read my dog's blog - Life of Kilo
rad14701
Private 4
Private 4
Posts: 63
Joined: Mon Mar 12, 2007 7:59 pm

Mon Apr 23, 2007 7:58 pm

Very nice sniper you built there, chaos... Even more impressive is the cost, or lack thereof...
User avatar
spudthug
Corporal 5
Corporal 5
Posts: 936
Joined: Mon Feb 26, 2007 9:02 pm
Location: johnsonburg, Pa USA
Contact:

Mon Apr 23, 2007 8:18 pm

wow sweet gun chaos...i have to ask u something in pm...look at it..
4" piston valved cannon-half done..( i spilt my cement...)

Hybrid- 75% done. need to build propane holder and drill/tap sparkplug hole..
User avatar
Velocity
Sergeant
Sergeant
Posts: 1039
Joined: Tue Feb 07, 2006 5:42 pm

Mon Apr 23, 2007 8:31 pm

Very nice cannon here.... could you possibly make a list of all of the differences between the S400 and the Triple S?
