Update: Golf Ball Piston-Valved Hybrid (LRCH-200)

Harness the power of precision mixtures of pressurized flammable vapor. Safety first! These are advanced potato guns - not for the beginner.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Sep 16, 2015 6:42 am

Boooooo! to preferring a small copy of yourself to things that go bang :P

That aside, looking good! Can't look at cam-lock fittings without remembering chemical plant work.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Binder17
Specialist
Specialist
Posts: 105
Joined: Sat Dec 23, 2006 3:40 pm
Location: The Colony, TX
Contact:

Mon Nov 30, 2015 10:44 am

November 26, 2015

What better time to test the Ole golf ball cannon than after Thanksgiving dinner.

I assembled the LRCH-200 for the second attempt at Operational Test 1. It went through pressure tests and met the tolerances. Functional testing also showed it could hold pressure after cycling a few times. It passed. I had not gotten it this far before. Then I decided to bite the bullet and go ahead and do a full test at low pressure. 2x mixture with an empty barrel. I used the pressure readings calculated on paper and injected the fuel using the air through meter method. Then I held my breath and to my amazement, it fired on the first attempt. This was a first for me.

This officially kicked off OT. I did 5 more blanks within a 6x envelope. Then I assembled the golf ball barrel (pvc sdr21 inside 2" aluminum pipe) and fired 8 rounds starting at 3x up to 6x mixes. There were no misfires. I intermittently inspected the piston and only found the rear stop plate to be slightly bent (as planned).

Next will be preparing for OT-2 with 8x envelope. Anticipated issues will be critical damage to the rear of the piston and possible damage to the sleeved PVC.

Unfortunately I did not get video. But here are some pics.
Attachments
LP-4 Piston
LP-4 Piston
Golf ball fired at 1" steel plate at 5x mixture.  50 yard range.
Golf ball fired at 1" steel plate at 5x mixture. 50 yard range.
</script></font><p><font>&copy;2006 Google</font></p></center></body></html>
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Dec 01, 2015 8:47 am


Dude.

Did the target plate care at all?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3634
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 57 times
Been thanked: 57 times
Contact:

Donating Members

Wed Dec 02, 2015 7:41 am

looking good!

If you plan on handheld firing it, though, I'd recommend shaving down that long stabby part on the rear of the piston though. :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Dec 02, 2015 2:37 pm

long stabby part
Always with the technical jargon...
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3634
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 57 times
Been thanked: 57 times
Contact:

Donating Members

Wed Dec 02, 2015 10:25 pm

Also known as the gas-powered ram kebab. :D
User avatar
Binder17
Specialist
Specialist
Posts: 105
Joined: Sat Dec 23, 2006 3:40 pm
Location: The Colony, TX
Contact:

Wed Aug 17, 2016 1:25 pm

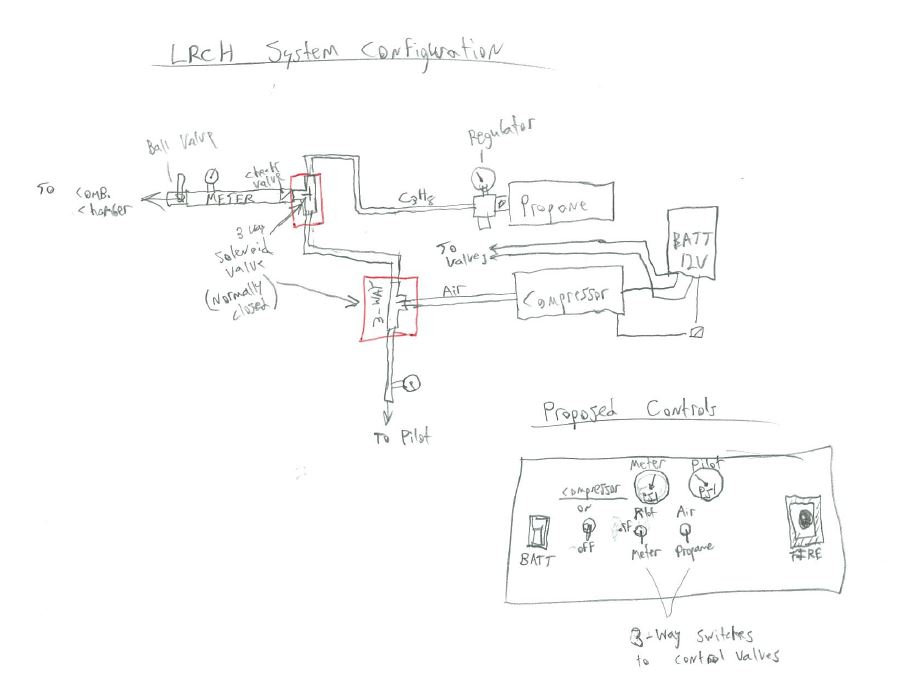

I'm not done yet. The project has been on hold for several months due to lack of funding and other higher priorities, but now I have dusted it off and continued development. Call this Phase II: Systems Integration. Here are the plans for the next 3 months.
