Reminds me of a Grenade Launcher sight mount:
FAR2017
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

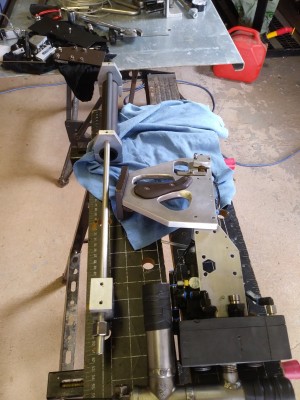

A bit of Sunday tinkering and it's in pieces.

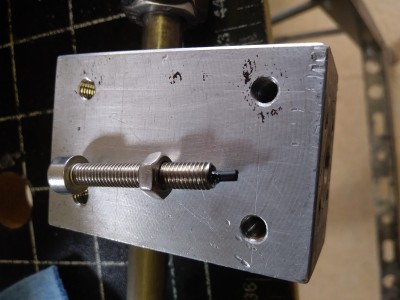

Polished out the barrel and made hop up, to stop BB's rolling out as much as anything. Drilled down center of bolt and stuck in a piece of 'O' ring material with silicone.

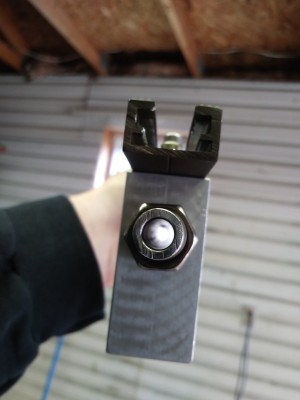

hop up just visible down barrel.
Mainly trying to get better accuracy.
Polished out the barrel and made hop up, to stop BB's rolling out as much as anything. Drilled down center of bolt and stuck in a piece of 'O' ring material with silicone.
hop up just visible down barrel.
Mainly trying to get better accuracy.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
And the results after reassembly. Still some horizontal spread, but much better
Before and after
Before and after
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
Hop up increases range, not accuracy. If anything it decreases accuracy.
For your build a Systema PTW style hop up should be easy enough to integrate.
For your build a Systema PTW style hop up should be easy enough to integrate.
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
It also robs the projectile of velocity. One airsoft project I hope to build one day is a sniper rifle with no hop-up that uses a rangefinder in conjunction with a variable angle scope mount in order to get the BB on target. I had computed the trajectory of a 0.45g BB with a muzzle velocity of 345 feet per second ( 2.49 joules energy ):wyz2285 wrote:Hop up increases range, not accuracy. If anything it decreases accuracy.
A drop of 36 feet at 100 yards is certainly something, here is what it would look like to scale in a scope what you would need to aim above a human figure to hit them in the chest at that range, more of a howitzer trajectory than a rifle:
The angle of the barrel to the horizontal would have to be just under 7 degrees. That is far beyond the adjustment range of a scope's reticle, so you would have to physically change the angle of the scope. It would look pretty awkward, but I think it would be doable.
With a scope zeroed at 15 yards, at 80 yards the drop would be around 16 feet, the barrel angle to the horizontal drops to a more practical 3.8 degrees. A 0.45g BB with 2.49 joules at the muzzle would retain around 0.3 joules at that range, that's about the same as a cheap spring pistol at point blank range so not a lot but you'd probably feel it.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
However a well sealed hop up can benefit light bbs because it allows some pressure build up, in case of a relatively slow valve opening.
I have thought several times about pure ballistic sniping, however if you want to go soft on people the muzzle velocity is really low, the first time I fired an AEG at 350 fps without hop up was mind blowing, the bb dives after a couple meters. Then I realized I'm used to fire bbs in homemade launchers at plus 600 fps lol
I have thought several times about pure ballistic sniping, however if you want to go soft on people the muzzle velocity is really low, the first time I fired an AEG at 350 fps without hop up was mind blowing, the bb dives after a couple meters. Then I realized I'm used to fire bbs in homemade launchers at plus 600 fps lol
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
The hop up was mainly as a BB stop as I polished out the barrel until a 6mm ball bearing would roll down it, it had a couple of tight spots at the valve end. Also the loading piston clamped the BB in the barrel slightly so I lowered it, so now the BB's are free to roll forwards or backwards (made a back stop as well)
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
It does change your perspectivewyz2285 wrote:Then I realized I'm used to fire bbs in homemade launchers at plus 600 fps lol
It's true that hop-up is what makes airsoft practical for most people, but it would be good to see a bit more science applied. Unfortunately, most people aren't interested in the physics involved.
