PNUZI: unregged mini UZI finished!
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 4 times
Jep...I did it again!
Still needs to be refined lookswise, but I managed to pull it off.
An unregged mini-UZI running on a 12 gram.
For this I had to hack up "Deathray"and use just the pressure washer valve.
I reversed the trigger so the 12 gram can act like the handle.
Put a cover over that, while the 12 gram can still be changed out, leaving just the cover in place.( get that?)
I used a 1/4"QEv body, without the piston that is, as the vortex chamber.
I guess Takerlabs would call it a sweepchamber.
The intake is NOT coming in from the bottom, but the vortex chamber works better than anything I've tried before!
And it was ready made, just had to plug the bottom with a disc.
It has an actual airgun -rifled- .177 barrel, wich I, against my habit, sawed-off..
I fired it once and was pretty impressed ( out of 12 grams a.t.m.)
Eventhough it is close to freezing temperatures outside ( making the CO2 lose a lot of power) it managed to just about split a lead .177 bb when it hit a solid piece of brass.
It penetrates wood..hmm..
Not bad considering it is about the size of a real "Ingram"mini UZI.
Trust me...I know first hand. 8)
The QEV body holds a little more bb's than the 12 gram could spit out.
THe temperature could be a factor there.'
You guys should have quite a few questions so , just ask and you shall recieve...( no, you can't ask for the gun!)

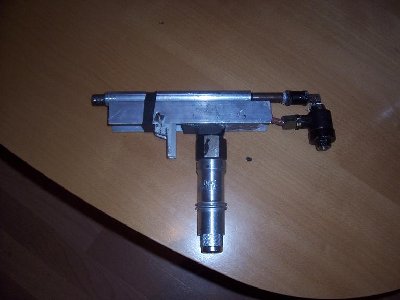

On with the pics: Remember, this is just a prototype thing and I'll make it look like candy with some epoxy and a nice flat black paintjob later.
Edit:Finished picture below: ( still want to change the trigger guard, paint is still drying in the picture)
Still needs to be refined lookswise, but I managed to pull it off.
An unregged mini-UZI running on a 12 gram.
For this I had to hack up "Deathray"and use just the pressure washer valve.
I reversed the trigger so the 12 gram can act like the handle.
Put a cover over that, while the 12 gram can still be changed out, leaving just the cover in place.( get that?)
I used a 1/4"QEv body, without the piston that is, as the vortex chamber.
I guess Takerlabs would call it a sweepchamber.
The intake is NOT coming in from the bottom, but the vortex chamber works better than anything I've tried before!
And it was ready made, just had to plug the bottom with a disc.
It has an actual airgun -rifled- .177 barrel, wich I, against my habit, sawed-off..
I fired it once and was pretty impressed ( out of 12 grams a.t.m.)
Eventhough it is close to freezing temperatures outside ( making the CO2 lose a lot of power) it managed to just about split a lead .177 bb when it hit a solid piece of brass.
It penetrates wood..hmm..
Not bad considering it is about the size of a real "Ingram"mini UZI.
Trust me...I know first hand. 8)
The QEV body holds a little more bb's than the 12 gram could spit out.
THe temperature could be a factor there.'
You guys should have quite a few questions so , just ask and you shall recieve...( no, you can't ask for the gun!)
On with the pics: Remember, this is just a prototype thing and I'll make it look like candy with some epoxy and a nice flat black paintjob later.
Edit:Finished picture below: ( still want to change the trigger guard, paint is still drying in the picture)
- Attachments
-
- A bit unclear, but you can just make out its a split lead .177 bb.
That means it's powerfull folks! - pnuzi.177split.JPG (19.22 KiB) Viewed 8331 times
- A bit unclear, but you can just make out its a split lead .177 bb.
-

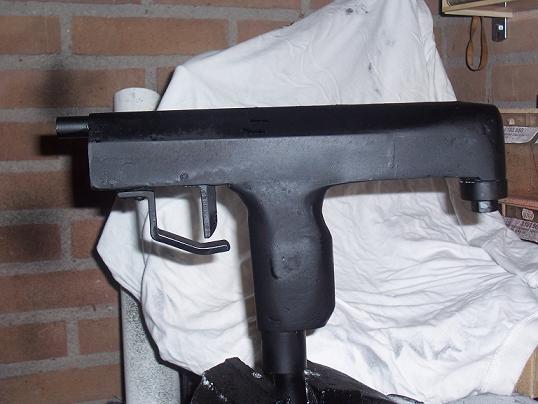

- I used some old paint, so it needs to be redone, but you get the picture.
That thing took a lot of epoxy and a lot of sanding! - pnuzi004.jpg (37.99 KiB) Viewed 8018 times
- I used some old paint, so it needs to be redone, but you get the picture.
Last edited by Brian the brain on Tue Jan 20, 2009 5:59 pm, edited 2 times in total.
