0.22" mini piston hybrid

Miniature guns are novelty custom, unique, and sometime downright crude! Common construction materials often include pill bottles or pens. Show us your work!
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Sep 09, 2011 1:36 pm

Why would this work
there are no orings on the piston so it should equalise
Children are the future

unless we stop them now
User avatar
ramses
Staff Sergeant 2
Staff Sergeant 2
United States of America
Posts: 1679
Joined: Thu May 29, 2008 6:50 pm

Fri Sep 09, 2011 2:05 pm

POLAND_SPUD wrote:
Why would this work
there are no orings on the piston so it should equalise
You will still probably need a spring, otherwise the piston will never be motivated to move forward to seal (until you depressurize the fill rig). There would be equal force on both sides of the piston.
POLAND_SPUD wrote:even if there was no link I'd know it's a bot because of female name :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Sep 09, 2011 3:06 pm

You will still probably need a spring, otherwise the piston will never be motivated to move forward to seal (until you depressurize the fill rig). There would be equal force on both sides of the piston.
Hmm I guess you're right

A spring would be useful... though the filling rig would neeed a pin for depressing the piston as the cartridge is filled



Personally I think that a detent based cartridge would be better...

though it's hard to tell what is better a detent based cartridge that has issues with sealing or a more complicated and difficult to build piston based cartridge
Children are the future

unless we stop them now
User avatar
Labtecpower
Sergeant 3
Sergeant 3
Eritrea
Posts: 1297
Joined: Sat Feb 20, 2010 6:38 am
Location: Pyongyang
Has thanked: 5 times
Been thanked: 13 times

Fri Sep 09, 2011 3:48 pm

A spring would be useful... though the filling rig would need a pin for depressing the piston as the cartridge is filled
The spring doesn't have to be unnessecarily strong. It only has to hold the piston forward, it doesn't need to hold back ignition pressure. Due to the relatively large piston surface, it won't take much pressure to move the piston in order to fill the cartridge.
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Sep 09, 2011 4:18 pm

Due to the relatively large piston surface, it won't take much pressure to move the piston in order to fill the cartridge
mind you the ID of the barrel is 5.5mm

for a pneumatic it wouldn't be a big deal... but a spring will have an effect on fueling
Children are the future

unless we stop them now
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 10, 2011 1:30 am

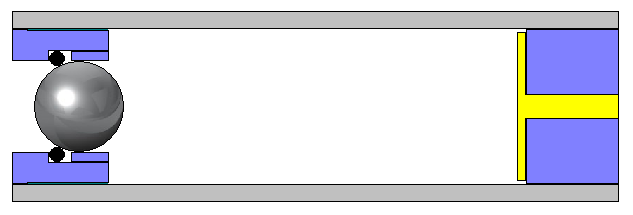

Here's the basic idea for filling:

1) cartridge placed in rig, and fuel (calculated to give a correct ratio for a correct mix taking the fill rig volume into account as well) is injected

2) the rig is capped and taken up to correct pressure. There are no airtight parts in the cartridge so both chamber and "pilot" are pressurised.

3) the rig is depressurised through the schrader, and the pressure imbalance causes the piston to shut, sealing off the cartridge.

A weak spring keeping the piston shut would be helpful with reliability though...

Will try to conjure up a prototype today.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Moonbogg
Staff Sergeant 3
Staff Sergeant 3
United States of America
Posts: 1733
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 158 times
Been thanked: 100 times

Sat Sep 10, 2011 2:47 am

Sounds like a creative and new idea to me. I'm looking forward to seeing it come together or at least see it in an experimental stage.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 10, 2011 5:53 am

POLAND_SPUD wrote:Personally I think that a detent based cartridge would be better...

though it's hard to tell what is better a detent based cartridge that has issues with sealing or a more complicated and difficult to build piston based cartridge

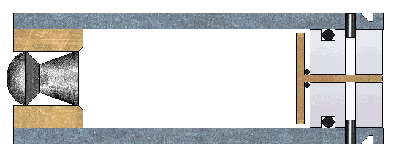

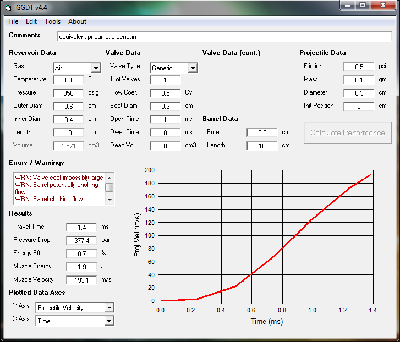

That fact is inescapable. A coaxial piston cartridge of given dimensions will invariable be more complex to put together and be less powerful than a "valveless" cartridge of equivalent size.

Hmmm...
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Sat Sep 10, 2011 8:00 am

yup... orings


orrrrr

if it works for copper it should work for lead :-D

not sure if it would be better to use the projectile itself as the seal or would you need a seperate olive...

the more I think about this the more the better the idea seems
Children are the future

unless we stop them now
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Sat Sep 10, 2011 1:58 pm

Why not fill the cartridge through the barrel port?
Thread it and you don't need the rig thing.

You might even be able to put it in a compression fitting whilst filling....

I would throw in the spring though.
It will keep that portion of the gas from escaping that split second of decompressing the barrel port.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sun Sep 11, 2011 2:53 am

Brian the brain wrote:Why not fill the cartridge through the barrel port?
Thread it and you don't need the rig thing.
I had contemplated this for another design but the fill rig is a one time build and allows for a much cleaner cartridge
I would throw in the spring though.
It will keep that portion of the gas from escaping that split second of decompressing the barrel port.
For the piston design a small spring would definitely be helpful.
POLAND_SPUD wrote:the more I think about this the more the better the idea seems
I proved it works a while ago.

No need for compression fittings though, the projectile should be forced into a smaller bore. Airgun pellets are typically oversided for their calibre to ensure a good seal.

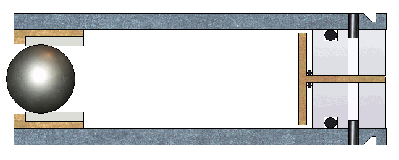

Here's a thought, avoiding threaded fittings instead having a "full bore" rear plug o-ringed and held by pins for full access and the ability to load the projectile from behind, which would also work for a silicone seal.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sun Nov 06, 2011 12:16 am

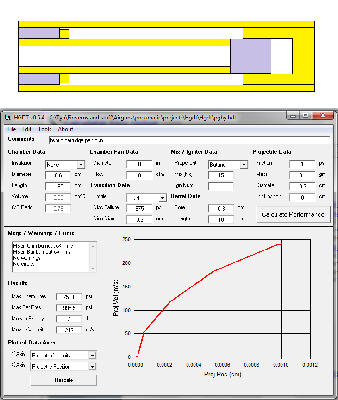

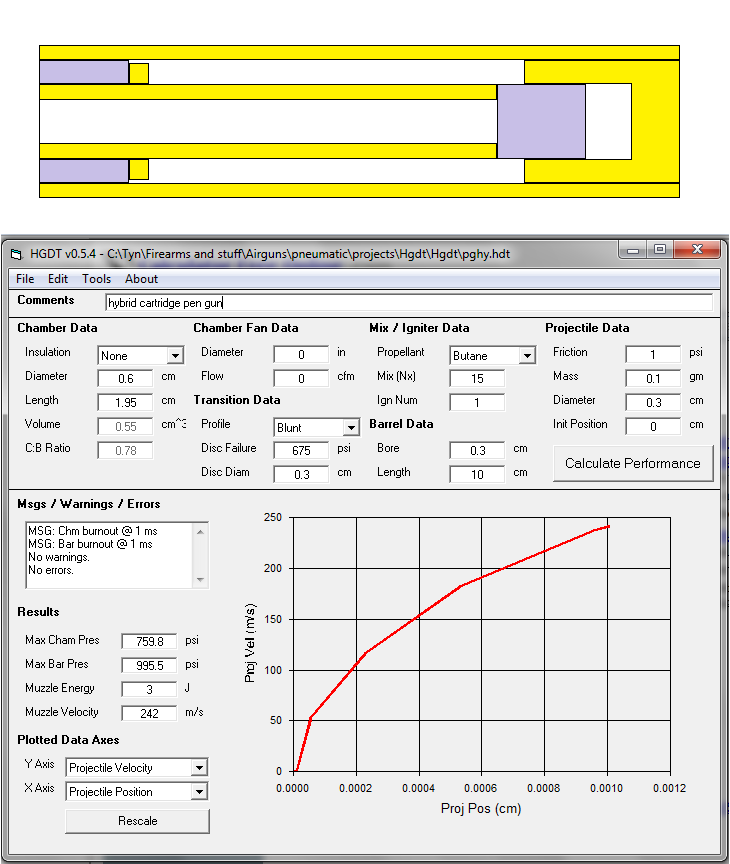

Giving this a bit of thought again for a pen gun cartridge for starters, looks like it has reasonably good prospects, especially compared to the equivalent HPA pen gun.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Fri Jul 22, 2016 2:54 pm

I'm new around here, and after reading this, I have been admired by the passion they put into their work without any doubt, I have learned a little, since I'm just initiating me in this of hybrid gun
Despite cost me a lot to understand the language, my English is very basic, the translator helps me to read and write, I would love to discuss this. I keep reading and watching ... Greetings
Last edited by jrrdw on Sun Jul 24, 2016 5:14 pm, edited 1 time in total.
Reason: Edited for content.
quinn whitsitt
Specialist 2
Specialist 2
United States of America
Posts: 234
Joined: Fri Feb 09, 2024 1:58 pm
Location: central city arkansas
Has thanked: 55 times
Been thanked: 7 times
Contact:

Thu Feb 15, 2024 11:31 am

great job everyone i hope you all have a great day
quinn whitsitt
Specialist 2
Specialist 2
United States of America
Posts: 234
Joined: Fri Feb 09, 2024 1:58 pm
Location: central city arkansas
Has thanked: 55 times
Been thanked: 7 times
Contact:

Thu Feb 15, 2024 11:32 am

what feul do you think whould work the best
