9mm SMG project + other HPA BBMG experimentation

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Oct 01, 2009 12:16 pm

Following from this idea for a powerful auto with a reasonable rate of fire without a complex reciprocating valve system, herewith a prototype:


Edit: Single shot testing at 850 psi, MOAR POWER :D

[youtube][/youtube]

Medium pressure test videos below, as you can see it has to be tweaked for reliable feeding but the power is not to be scoffed at. Also, this is at around 450 psi, the regulator on the paintball tank can go up to 850 psi so even more destruction can be expected (when I build up enough courage to turn it up :roll: ). One thing the camera doesn't show is how insanely loud it is, not as much as my pop-off autos but still a strain on the ears.

[youtube][/youtube]

Lighter fuel can with 0.5mm aluminium backplate, it kept being blown over by the blast because I was too close.


[youtube][/youtube]

Ancient Amiga mouse with 0.5mm aluminium backplate


[youtube][/youtube]

Computer power supply, no penetration yet but its time will come when I up the pressure :twisted: note how it didn't jam in this one, I think I had turned up the flow from the tank fully

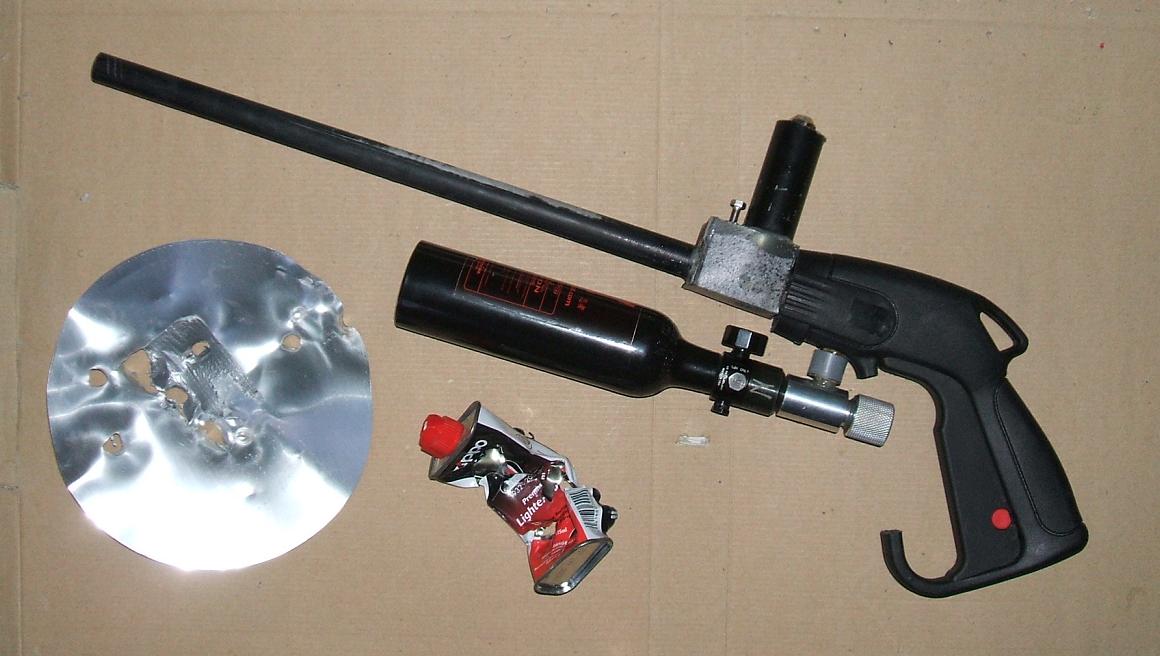

This was the basic idea, pressure washer handle + 3000 psi 13 inch<sup>3</sup>paintball tank:


+ 3/8" ball bearings :twisted: the brass tube in the picture is 3/8" external diameter and was used as a mandrel for the cast epoxy barrel


Work in progress on the valve and trigger setup:


Breech area with ball detent, o-ring and internal magazine liner incorporated before casting:


The most tedious part, waiting for the epoxy to cure:


Some test videos of the breech and barrel setup, done at 100 psi hooked up to a blowgun and shop compressor:

[youtube][/youtube]

[youtube][/youtube]

edit: updated youtube links
Attachments
destruction :)
destruction :)
Last edited by jackssmirkingrevenge on Thu Oct 26, 2017 7:54 am, edited 3 times in total.
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Thu Oct 01, 2009 12:25 pm

Now slap on a tubemag and and your 1-3 bursts can increase to 20-30. Why care about reloading if it fixes all the shaking? Keep tweakin'! :D

I have exactly the same caliper as you :)
when I build up enough courage to turn it up
Here, have some:
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Oct 01, 2009 12:39 pm

psycix wrote:Here, have some
What the heck, 850 psi testing coming soon. If it blows up and kills me, I'm coming to haunt you - and it won't be with the sound of chains, but rattling of jammed BB magazines :P

edit: No go I'm afraid, turns out doubling the pressure was a little too much for the tank-trigger connection, it started to leak. Time to get the epoxy out *sigh*
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Thu Oct 01, 2009 1:43 pm

Take a milk jug, punch a hole for the barrel n stuff, put the gun in, fill with epoxy, cure, go 850 psi. :D
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Oct 01, 2009 1:44 pm

psycix wrote:Take a milk jug, punch a hole for the barrel n stuff, put the gun in, fill with epoxy, cure, go 850 psi. :D
How did you know :D
User avatar
twizi
Corporal
Corporal
Posts: 511
Joined: Thu Nov 27, 2008 9:04 pm
Location: up yours

Thu Oct 01, 2009 2:59 pm

what the presure handle started to leak at 850 what it presure rated to?
dont play with airsofter with 1000$ gun and play with a 5 dollar pair of glasses
User avatar
Willdebeers
Specialist 2
Specialist 2
Posts: 214
Joined: Tue Feb 03, 2009 1:18 pm

Thu Oct 01, 2009 3:04 pm

Not 850psi. ;) They should be able to take quite alot though.
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Thu Oct 01, 2009 3:07 pm

was a little too much for the tank-trigger connection, it started to leak
I don't get it... they are standard fittings, right ??

what's the barrel length ??
Children are the future

unless we stop them now
User avatar
twizi
Corporal
Corporal
Posts: 511
Joined: Thu Nov 27, 2008 9:04 pm
Location: up yours

Thu Oct 01, 2009 3:15 pm

presure washerers normaly are on 3000psi and industrial are 4500psi
dont play with airsofter with 1000$ gun and play with a 5 dollar pair of glasses
jaythedogg
Private 2
Private 2
Posts: 32
Joined: Sun Jun 07, 2009 12:33 am

Thu Oct 01, 2009 3:18 pm

I love it! I had an Amiga 500 mouse exactly like it! Then the Amiga went kaput & got rid of it. :(

I am inspired, going to harbor freight & getting some el cheapo stuff to make my own in 6.5mm!

(I don't want destruction, I just want a blower gun!)
Imitation is not the sincerest form of flattery... STALKING IS!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Oct 01, 2009 4:01 pm

The pressure washer valve wasn't leaking, that's rated at 2200 psi.
POLAND_SPUD wrote:I don't get it... they are standard fittings, right ??
The pressure washer fitting is 3/8", but the valve I have on the paintball tank is 1/8", so I epoxied a 1/8" nipple (the bit you can see here covered with a grey pipe) in place but didn't support it enough so it sprung a small leak. All repaired now, as I should have done it in the first place, to be re-tested when I'm confident it's fully cured :)
what's the barrel length?
14.5 inches
I had an Amiga 500 mouse exactly like it! Then the Amiga went kaput & got rid of it.
We just threw out our 500, it was taking up too much room :roll:
jaythedogg
Private 2
Private 2
Posts: 32
Joined: Sun Jun 07, 2009 12:33 am

Fri Oct 02, 2009 6:52 pm

jackssmirkingrevenge wrote: We just threw out our 500, it was taking up too much room :roll:
Those had gold connections in them. :(
Imitation is not the sincerest form of flattery... STALKING IS!
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Sat Oct 03, 2009 6:36 am

We just threw out our 500
No longer single or is this a mouse from work?

Best build I have seen from you!
It could reallu use a proper bb mag though..

I like the curve you kept at the bottom of the handle for no obvious reason...

The bottle and handle combo is golden.You can power all kinds of designs with it.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Oct 03, 2009 7:46 am

jaythedogg wrote:Those had gold connections in them. :(
Now you tell me :(
No longer single or is this a mouse from work?
By "we" I meant "the family", still happily single :D
Best build I have seen from you!
It could really use a proper bb mag though..
Thanks.. and yes :roll:
I like the curve you kept at the bottom of the handle for no obvious reason...
Actually there is a reason, I can hold it without actually gripping the grip, just nonchalantly hanging off my hand. Very gangster :D
The bottle and handle combo is golden.You can power all kinds of designs with it.
I can and I will :D

Well, did some testing at 850 psi. Reliability is still an issue, but bloody hell, the power! And the NOISE! My ears are still ringing :)

Here's some single shots, straight through steel case of the PSU :D

[youtube][/youtube]

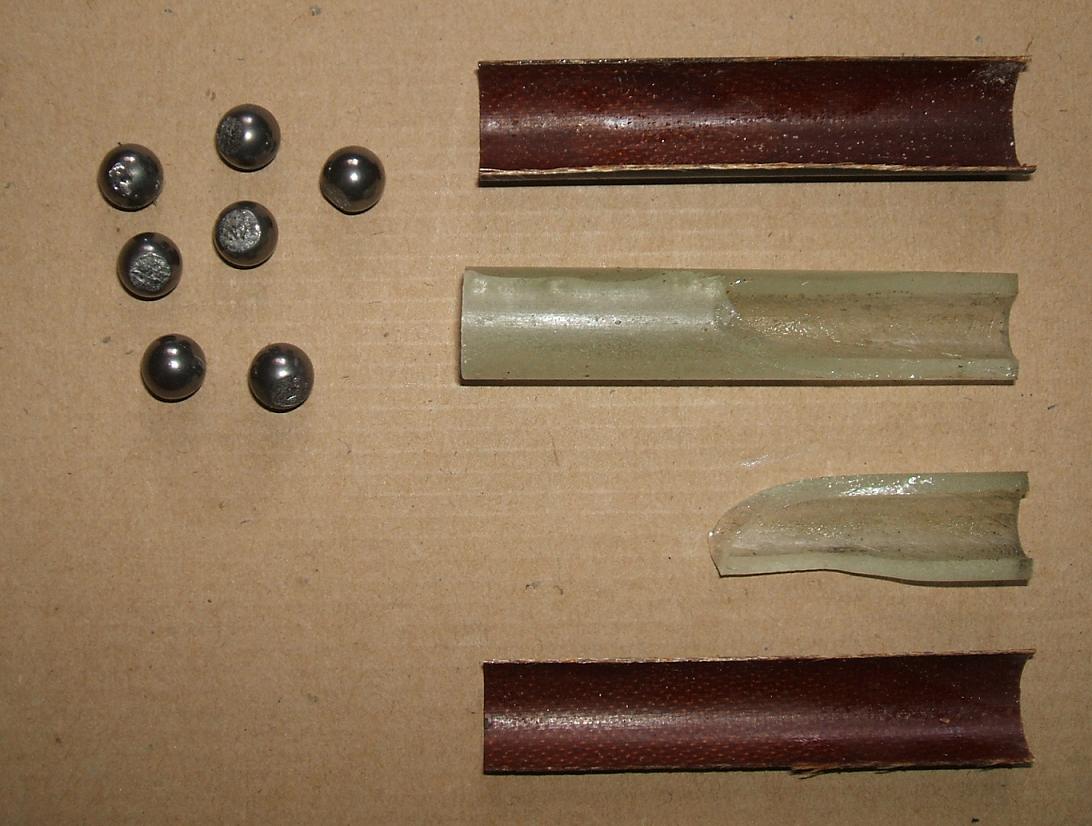

Unfortunately, the muzzle end of the barrel objected at some point and shattered, so I was forced to do a BtB and hack off a couple of inches :) also, check out the (macro :D) view of the 3/8" bearings damaged by impact.
Attachments
User avatar
roboman
Specialist
Specialist
Posts: 176
Joined: Tue Nov 25, 2008 11:18 pm
Location: Long Beach, CA

Sat Oct 03, 2009 10:55 am

I just drooled all over my keyboard...

Amazing work, Jack! I've always wanted to see someone make a large caliber BBMG-ish gun!
ilovetoblowthingsup wrote: The yellow/orange back fits super snugly, very nice in fact, but the head does not fit.
