al-xg · Mon Oct 24, 2011 5:20 pm

Wow... beautiful work.

Inspiring in fact.

Thu Nov 10, 2011 4:56 pm

Hope you guys are still interested...

After a weak...I mean week of sickleave...I was urging to get back into the build..
Hands and wrists ache a bit but that didn't stop me...

Welded and shaped the front barrel support...

Changed/adapted the hammer...looks way better...

welded up some internal supports for the action, as it was putting some strain on the bolt by skewing.
Worked wonders..

Replaced the nut on the back of the bolt for one that pleases the eye a bit more...

I tried to fit a wooden handle to the existing frame...but ...I wasn't satisfied with the result.
I want a clean joint between the two materials...so I went to work..

Check out the pics.

I'm thinking about leaving all the " battlescars" from the welds...I think it adds character and gives the impression that it's way old.
The lows I mean.The highs will be filed smooth.

Oh and do comment...it's what keeps me going ya' know..

paaiyan · Thu Nov 10, 2011 4:57 pm

Wow... That is gorgeous.

wyz2285 · Thu Nov 10, 2011 5:37 pm

Simply BEAUTIFUL

How did you make the brass part? mill it? The hammer looks kinda bunky

Oh and better quality photo plz

warhead052 · Thu Nov 10, 2011 7:35 pm

:O Wow. I can't wait to see more!

jackssmirkingrevenge · Thu Nov 10, 2011 9:08 pm

Brian the brain wrote:Oh and do comment...it's what keeps me going ya' know..

I would if I could actually see anything...

Just kidding, great stuff!

Looks more and more like a badly photographed Girandoni restoration project every day

Gun Freak · Thu Nov 10, 2011 10:10 pm

Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by.

Fri Nov 11, 2011 12:33 am

Oh my friggin god stop being so awesome

ah..I feel better now..

I would if I could actually see anything...

Would you believe I use the focus function?
Never knew about it's existance before MrCrowley's bad batteries excuse though...

It might be so fuzzy 'cause I was standing to close to it...hmm...
I have to resize the pics anyway so I might try taking some photo's from a little further away and then enlarge the section I want to show...

Simply BEAUTIFUL How did you make the brass part? mill it? The hammer looks kinda bunky

The brass part is a combination of a couple of fittings and a lead ball...

Not really looking like that anymore though...
That's what angle grinders are for see.
The main part mostly had that shape though.
It's bulky because it needs to pack the same wallop as the steel hammer...wich was both bulky and ugly..

Looks more and more like a badly photographed Girandoni restoration project every day

The girandoni rifle is always there in the back of my mind.
It certainly was during the " Shatterhand" build.

After I finish the rifling machine I planned I was kinda thinking about doing a copy...with some ( make that a LOT) of my own input that is.

I love both the reloading action ( allows for homemade slugs!)as the hammer action.
In stead of hitting a valvestem...it pushes it.
The thought has crossed my mind of combining his system with this valve..

Fri Nov 11, 2011 1:07 am

Brian the brain wrote:
I would if I could actually see anything...
Would you believe I use the focus function?
Never knew about it's existance before MrCrowley's bad batteries excuse though...

It might be so fuzzy 'cause I was standing to close to it...hmm...
I have to resize the pics anyway so I might try taking some photo's from a little further away and then enlarge the section I want to show...

Yeah, I don't think it's a case of not using macro. It's not like you're trying to take pictures of small objects. Blur could be from lack of light, dead batteries, moving the camera while it's taking a picture or a combination.

When using macro, some cameras will focus macro only when zoomed in others will focus macro only when zoomed out.

Anyway, nice piece of equipment

mark.f · Fri Nov 11, 2011 8:53 am

Fooking schweet.

I regret not seeing and commenting on this earlier. It seems I always miss good guns whenever I take a hiatus from checking SpudFiles.

Good to see a counterbalanced hammer valve. But while you balance your spool valves, I'm still looking for easy ways to unbalance mine.

Fri Nov 11, 2011 10:43 am

Drill a hole to let the air pass?

regret not seeing and commenting on this earlier

Hmm..it's not even done yet...
So nothing's lost..

Btw:
I changed my sig...

warhead052 · Fri Nov 11, 2011 11:28 am

Brian the brain wrote:
Oh my friggin god stop being so awesome

Oh my friggin god stop being so awesome

Oh my friggin god stop being so awesome

ah..I feel better now..

Now please make a second version that is a hybrid hammer valve, just so Gun Freak will make a hybrid! Come to think of it, a hybrid hammer valve... Sounds fun.

Gun Freak · Fri Nov 11, 2011 11:44 am

Give up warhead

Fri Nov 11, 2011 4:33 pm

more progress:
Tried to get better pics but this is the best I can do, even with additional lighting..

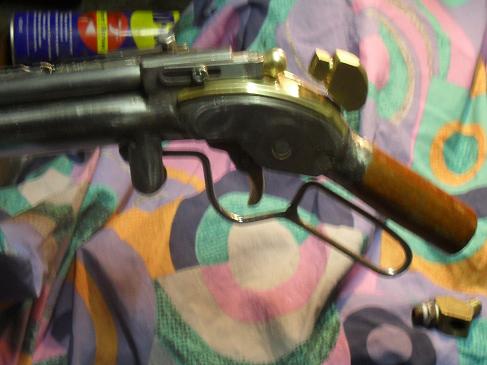

You'll see what I mean by a " clean joint" between the steel and the wood.
This would have been impossible with the prototype handleframe.

I also took a side by side of the hammer and a similar fitting I used to make it.
Bottom was filled by a plug, then cut and tapped to m6 to fit the steel part of the hammer.
It used to be a 1/4" fitting...
Anyway.
you can also see the right side wich is a little less clean.
Those are the battlescars I referred to.

Laquer is still drying.Just applied it.
Edit:

Now please make a second version that is a hybrid hammer valve, just so Gun Freak will make a hybrid

If I was trying to please everybody I would have to make a hybrid out of epoxy with some push to connect fittings....that tops Larda's creation in performance and can fire both semi automatic and full auto with 6 rotating barrels wich can be swapped with a rifled/ suppressed barrel set-up able to take out a zombie from 4 miles away yet still be admittable to a paintballgame.

I'll just do what I do best...

Gun Freak · Fri Nov 11, 2011 4:55 pm

That's not homemade.

You bought that.
