New airsoft gun

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Post Reply
User avatar
YEAHADD16
Private 2
Private 2
Posts: 37
Joined: Thu Jul 24, 2008 9:22 am

Sun Dec 23, 2012 8:58 pm

Thank you to wyz2285 and his videos for the inspiration and information i have gained for this project. A lot of the system shown here is of his creation and I want to give credit where credit is due

Here is what I have made as my latest.

A bolt action gun, fully portable, operating at 120psi. My clippard tank is the biggest limitation, rated for 250psi, so I do not see a need to go too much higher. I have a DCV and QEV operating the pneumatic system. I am estimating 300fps.

After some test shots at 20ft at an empty paint thinner can i caught ricochet and got a nasty welt, so this thing has some power. I attempted at sights and bi-pod for the first time and both are working somewhat.

What do you guys think, I have learned a lot form this project and I hope to learn more from the comments, so have at it :lol:

UPDATE:

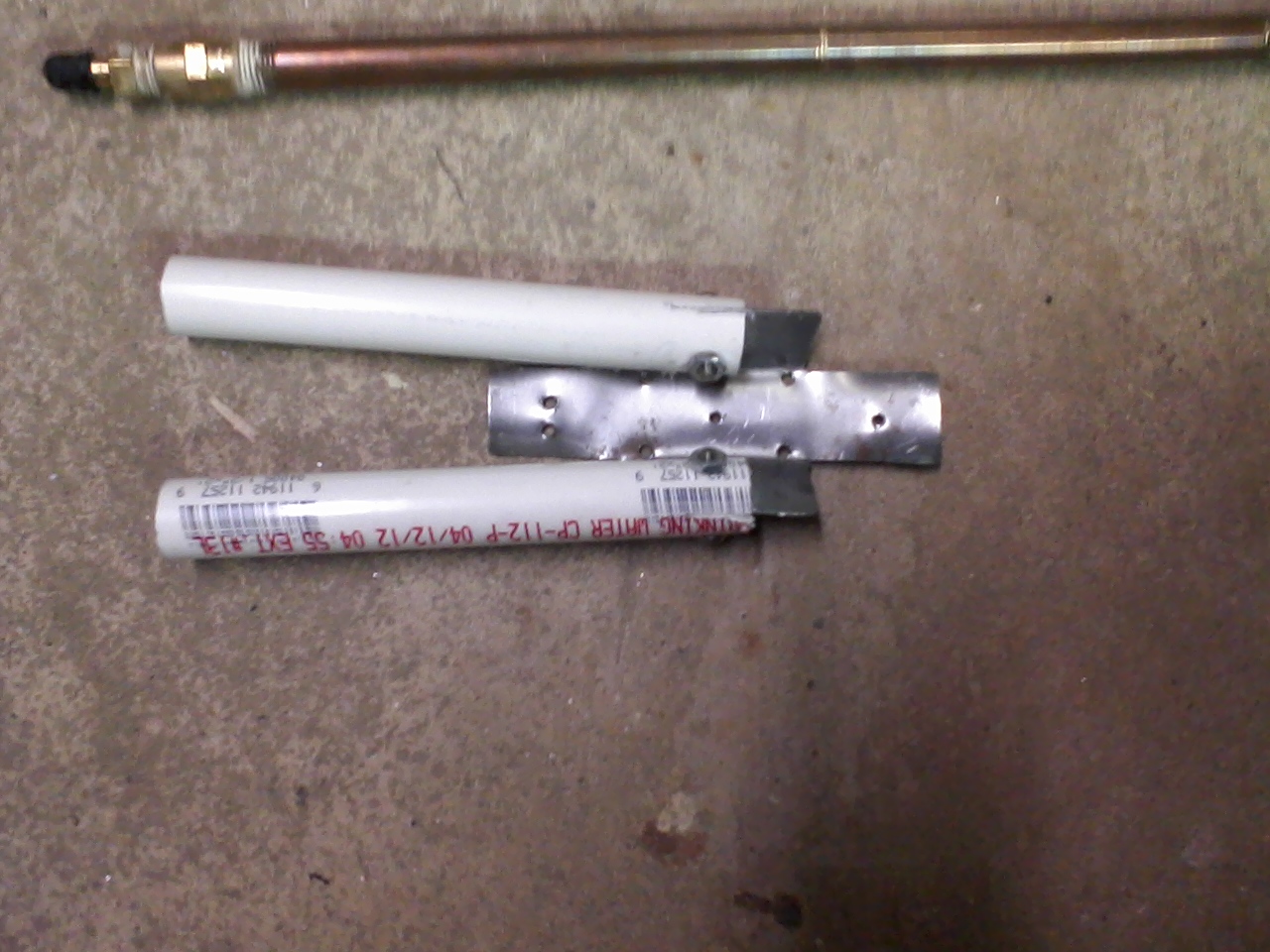

Damage pics on a paint thinner can, ranging from 130psi to 120psi with 6mm air-soft pellets
