My first .177 pellet gun

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
Post Reply
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Sun Aug 19, 2018 4:51 pm

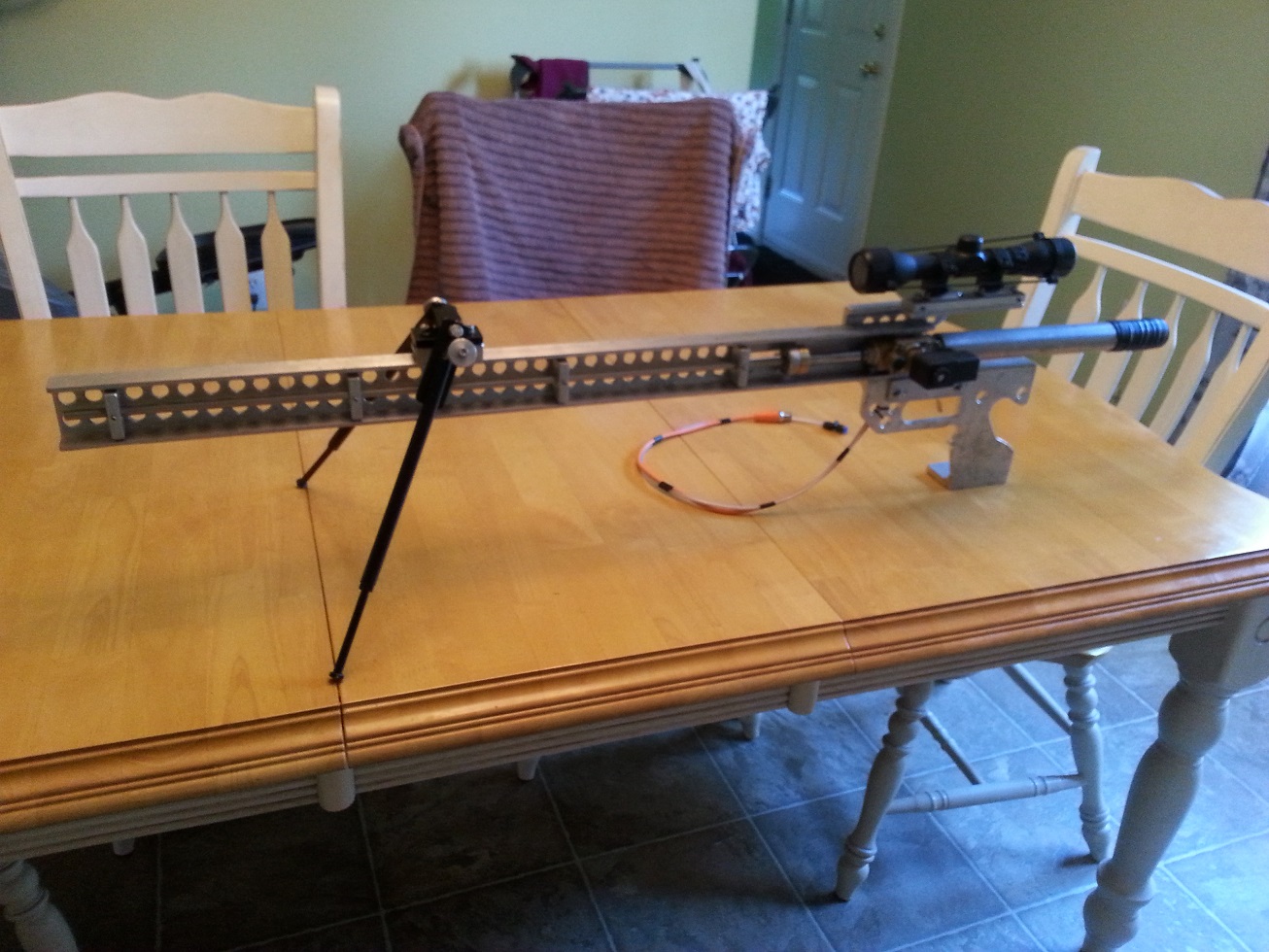

.177 smooth bore (.183" ID seam less tubing). Barrel is 750mm long and uses a 24vdc solenoid valve, chamber is 1" x 12" sch40 stainless steel charged to 150psi from my compressor. Single shot bolt action. BB's not so accurate but the dome head lead pellets are pretty good :D

009 (1).jpg
009 (2).jpg


[youtube][/youtube]
Top
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2388
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 4 times
Contact:
Contact wyz2285

Mon Aug 20, 2018 6:09 am

150PSI is safe to use push to connect fittings and hoses, you could have routed a larger chamber inside the handguard and have multi shot capability
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
Top
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 274 times
Been thanked: 276 times
Contact:
Contact hectmarr

Mon Aug 20, 2018 10:03 am

Nice work, I like it!
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26216
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 576 times
Been thanked: 347 times

Donating Members

Tue Aug 21, 2018 6:07 am

Love the look! Got any chrony readings?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Tue Aug 21, 2018 3:26 pm

Not yet, I will need to make an adaptor to fit the new barrel size.
Top
Firstshotwins
Private
Private
Posts: 3
Joined: Thu Aug 23, 2018 1:17 am
Location: Vancouver

Thu Aug 23, 2018 1:26 am

Thanks for sharing man - It's pretty sweet! Did you 3d print any parts as well?
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Thu Aug 23, 2018 3:39 pm

No it's mostly aluminium & stainless chamber and barrel. It's pretty simple really.
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Fri Sep 28, 2018 5:47 pm

Barrel now at 550mm and finished grips
011 (2).jpg
011 (1).jpg
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Thu Oct 18, 2018 6:23 am

Took the scope off and making a peep sight as I only want to use it up to 10m range, rear sight has windage adjustment, range will be on the front post :idea:
014 (1).jpg
014 (2).jpg
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Sat Oct 27, 2018 8:57 am

Peep sight fitted, works nicely, had some adjustable stock parts from another build I didn't use so fitted that and made adjustable cheek rest as well.
015 (2).jpg
015 (1).jpg
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Thu Apr 04, 2019 4:58 pm

Following on with the KISS principal I have changed the barrel to 6mm ID to use airsoft, I made the barrel slide now so the dead space will be minimal + less leaks. The tube I got from McMaster Carr is 8 x 6mm but was only 5.85 ID :( Much polishing later with a long rod and abrasive cloth and a BB rolls down it. Haven't tried it yet. Also mounted my old 4X scope offset to the left of the peep sights so I can use it as a spotting scope :idea:
kiss (2).jpg
Top
User avatar
Anatine Duo
Specialist
Specialist
Canada
Posts: 189
Joined: Sat Feb 01, 2014 11:16 am
Location: cottage country
Has thanked: 40 times
Been thanked: 20 times

Thu Apr 04, 2019 5:59 pm

The offset bits are very appealing. Informal balance FTW!
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Thu Apr 04, 2019 6:50 pm

:bounce: :bounce: :bounce:
kiss (1).jpg
kiss (3).jpg
kiss (4).jpg
Top
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1082
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 98 times

Sat May 04, 2019 4:43 pm

Never being really happy with anything I pulled it apart again, changed it back to the .177 barrel, now at only 12" long (cut down the body), and made it a sliding barrel, much easier to load and zero dead space. Some work on the sliding stock also so it goes fully in.
017 (2).jpg
017 (1).jpg
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26216
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 576 times
Been thanked: 347 times

Donating Members

Sun May 05, 2019 6:36 am

farcticox1 wrote:Never being really happy with anything
This is how humanity makes progress :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
